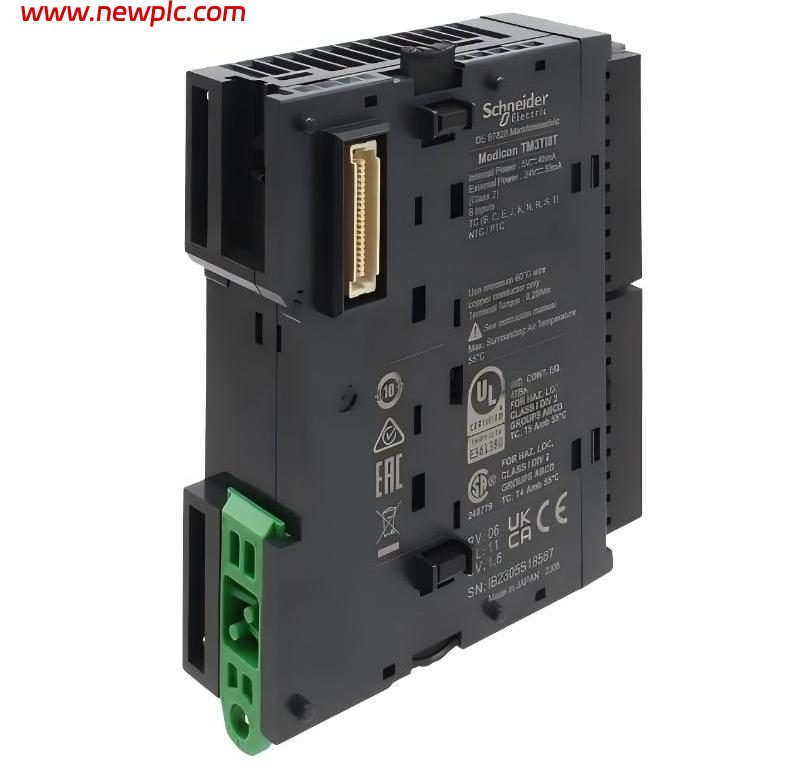

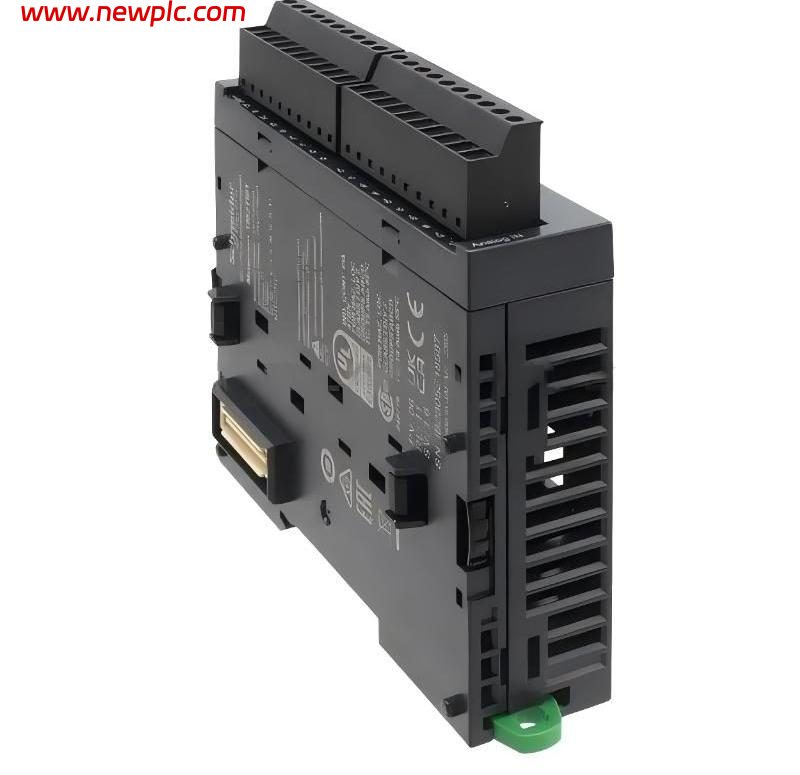

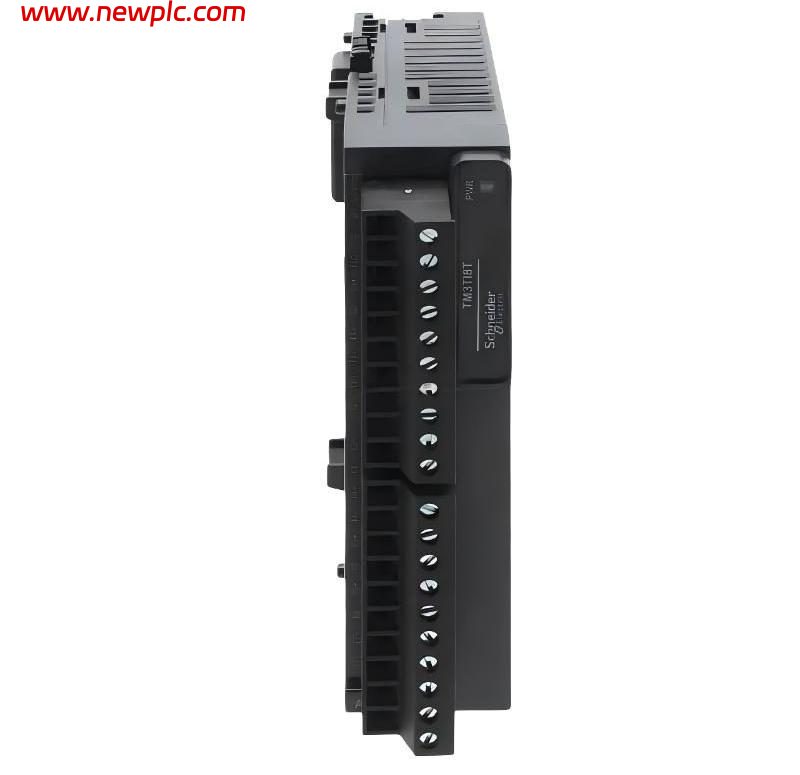

Schneider TM3TI8T Analog Temperature Input Module

FAQ

Q1: What is the TM3TI8T?
A: It is a Modicon TM3 analog expansion module providing eight temperature-measurement inputs.

Q2: Which thermocouple types are supported?
A: It supports Type K, J, R, S, B, E, T, N and C thermocouples.

Q3: Can the TM3TI8T measure thermistors?
A: Yes. It supports both NTC and PTC thermistors.

Q4: Can it measure resistance directly?
A: Yes. The resistor measurement range is 100 Ω to 32 kΩ.

Q5: What supply voltage does it require?
A: The module uses 24 VDC, with an allowable supply range of 20.4–28.8 VDC.

Q6: What type of terminal connection is used?
A: The TM3TI8T uses a removable screw terminal block.

Q7: What are the dimensions and weight?
A: The module measures approximately 23.6 × 90 × 70 mm and weighs approximately 0.11 kg.

Q8: Which PLC controllers are compatible with the TM3TI8T?
A: It is designed for Modicon M221, M241, M251 and M262 controllers.
