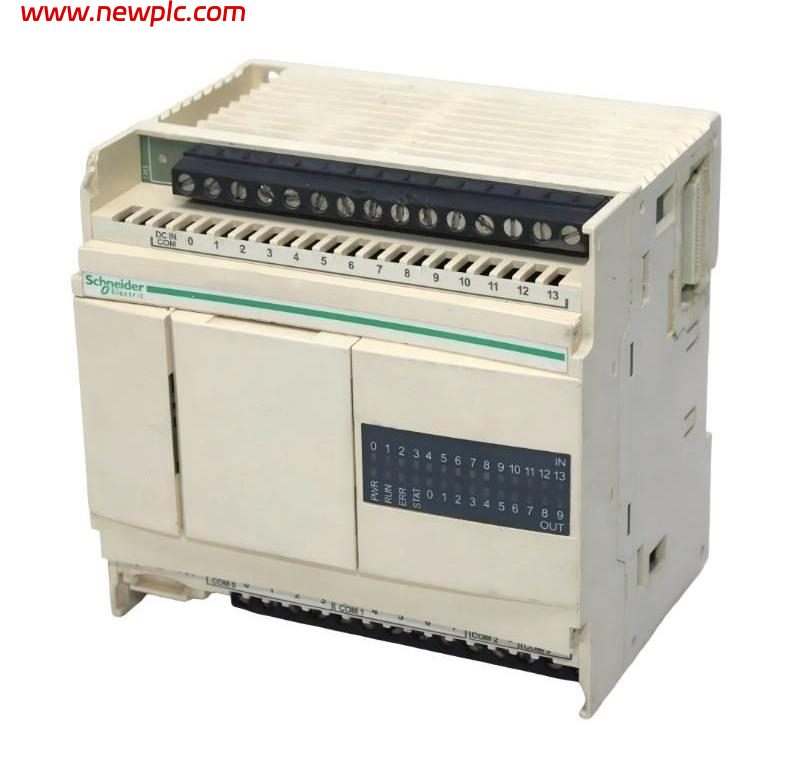

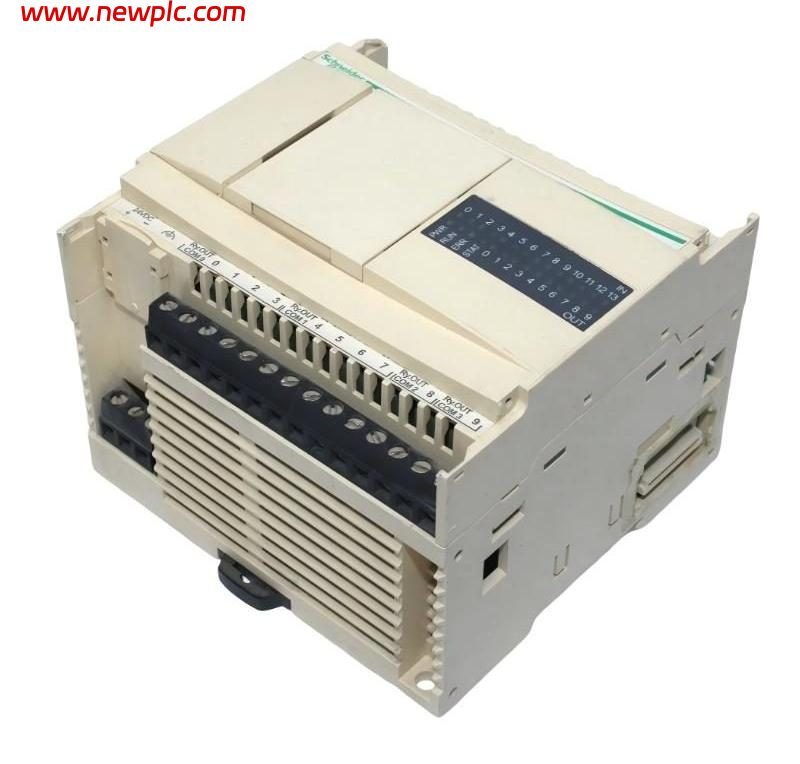

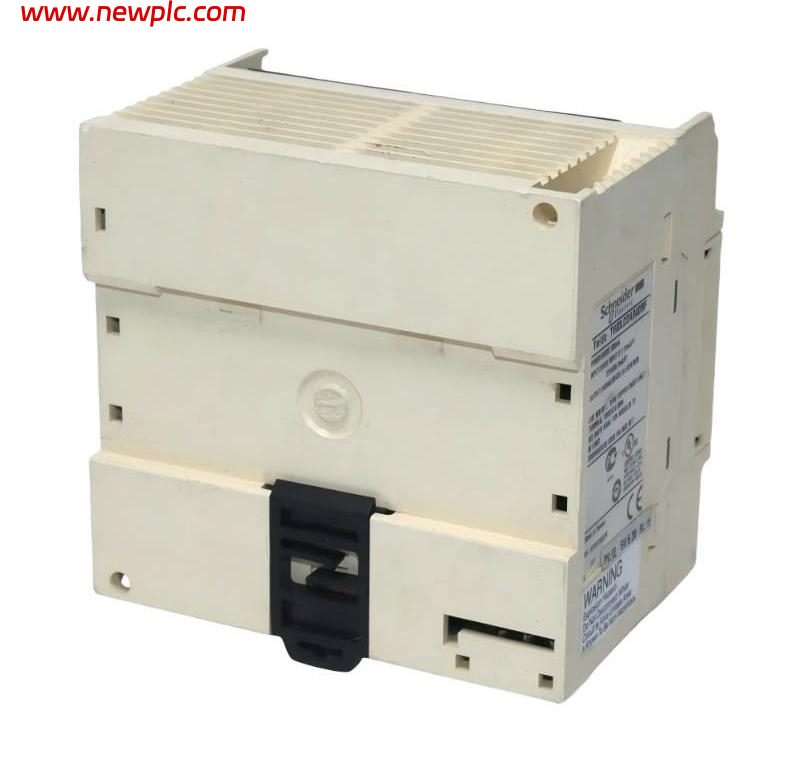

Schneider TWDLCDA24DRF Compact PLC Base Controller

FAQ

Q1: What is the TWDLCDA24DRF?
A: It is a Schneider Electric Twido compact PLC base controller integrating the CPU, power supply and digital I/O.

Q2: How many inputs does it have?
A: It provides 14 digital inputs rated for 24 VDC.

Q3: How many outputs does it have?
A: It provides 10 relay outputs.

Q4: What is the relay output rating?
A: The relay outputs are rated up to 2 A at 240 VAC or 30 VDC under the specified operating conditions.

Q5: What communication protocol does it support?
A: The controller provides a non-isolated RS-485 serial interface supporting Modbus RTU/ASCII master or slave communication at up to 38.4 kbit/s.

Q6: Can the controller be expanded?
A: Yes. The TWDLCDA24DRF supports up to four I/O expansion modules.

Q7: What are the dimensions and weight?
A: The dimensions are approximately 90 × 95 × 70 mm, with a net weight of approximately 0.305 kg.

Q8: Is the TWDLCDA24DRF still available?
A: No. Schneider Electric lists the model as discontinued. Regional discontinuation dates vary; Schneider recommends newer Modicon M221-based solutions as replacements.
