Technical Specifications
| Item | Specification |
|---|---|

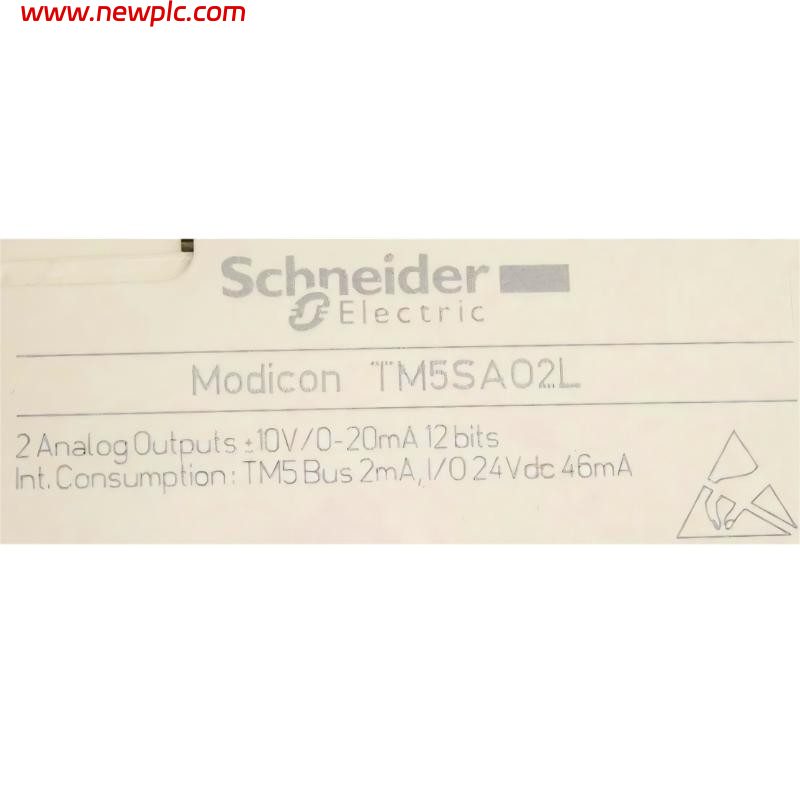

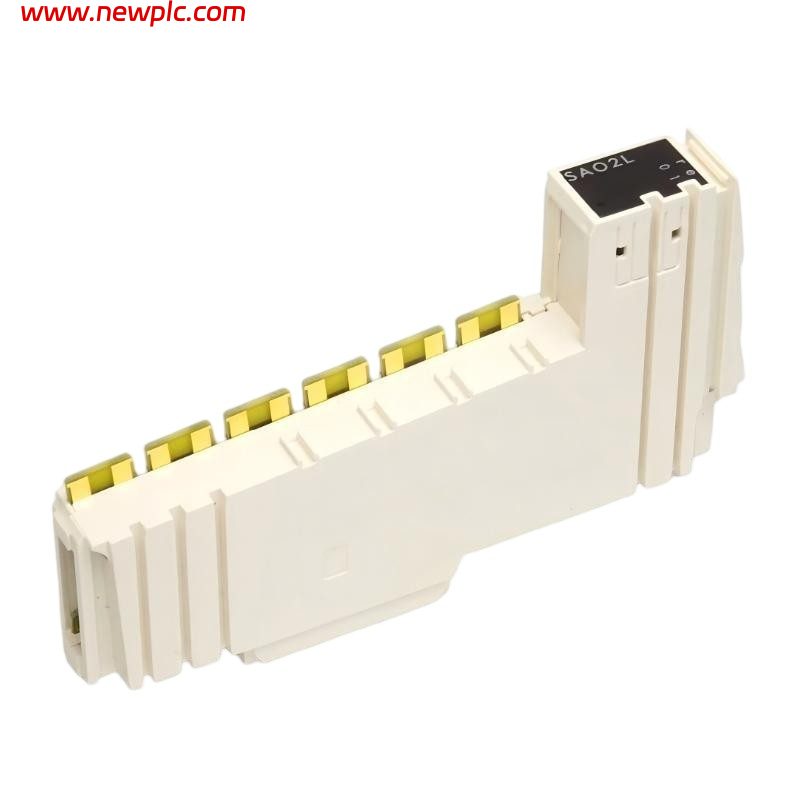

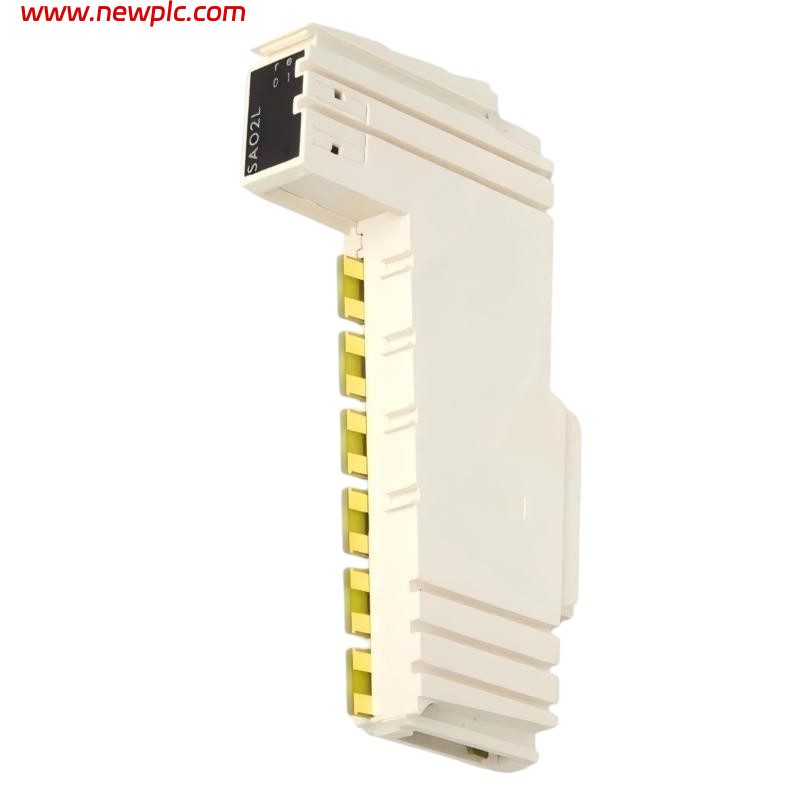

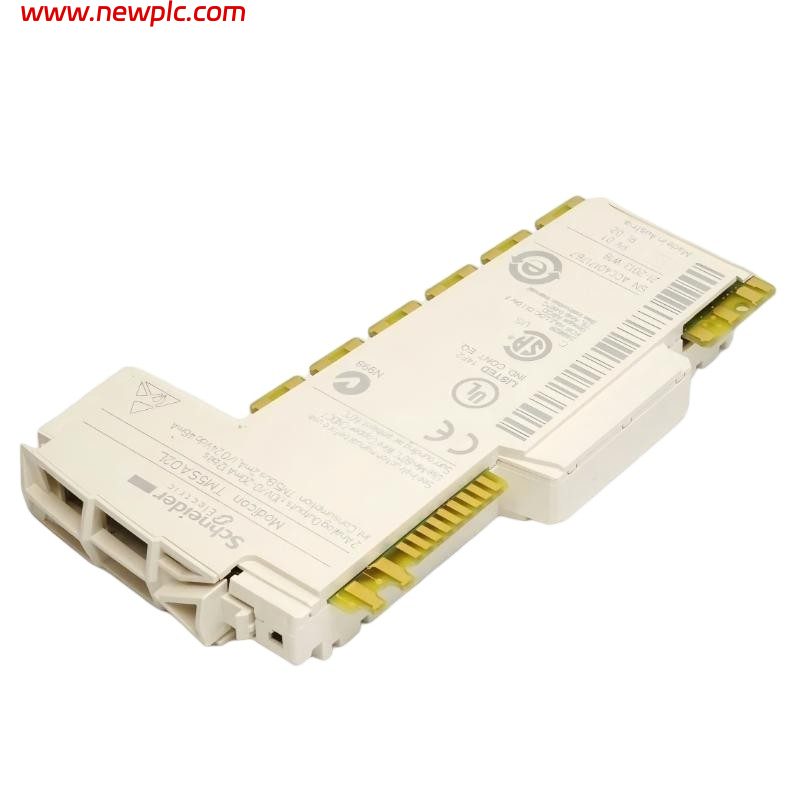

| Product Name | Schneider Electric TM5SAO2L |
| Product Type | Analog Output Module |
| Product Series | Modicon TM5 |
| Analog Outputs | 2 Outputs |
| Output Types | Voltage and Current |
| Voltage Output Range | ±10 V DC |
| Current Output Range | 0–20 mA, 4–20 mA |
| Analog Output Resolution | 12-bit + Sign (Voltage), 12-bit (Current) |
| Measurement Resolution | 4.882 mV (±10 V), 9.766 µA (0–20 mA) |
| Response Time | ≤ 1 ms |
| Sampling Duration | 200 µs |
| Measurement Accuracy | < 0.15% Full Scale at 25°C |
| Non-Linearity | < 0.007% FS |
| Temperature Coefficient | 0.02% FS/°C |
| Minimum Output Impedance | 1 Ω |
| Maximum Load Impedance | 500 Ω (Current Output) |
| Channel Isolation | No Isolation Between Channels |
| Bus Isolation | 500 Vrms AC Between Channel and Bus |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 20.4–28.8 V DC |
| Current Consumption | 2 mA at 5 V DC Bus; 46 mA at 24 V DC I/O |
| Power Dissipation | 1.11 W Maximum |
| Local Indicators | 1 Green Power LED, 1 Red Fault LED, 2 Yellow Output Status LEDs |
| Protection Rating | IP20 |
| Mounting Method | DIN Rail via TM5 System |
| Operating Temperature | 0°C to 55°C (Without Derating), Up to 60°C (With Derating) |
| Storage Temperature | -25°C to 70°C |
| Relative Humidity | 5%–95% Non-Condensing |
| Shock Resistance | 15 gn for 11 ms |
| Vibration Resistance | 1 gn (8.4–150 Hz), 3.5 mm (5–8.4 Hz) |
| Operating Altitude | Up to 2000 m |
| Certifications | CE, cULus, CSA, C-Tick, GOST-R |
| Compatibility | Modicon M258, Modicon LMC058 |
| Country of Origin | Austria |
| Dimensions (W × H × D) | 12.5 × 99 × 75 mm |
| Weight | 0.025 kg (25 g) |
FAQ
FAQ
Q1: What is the TM5SAO2L used for?
It is a 2-channel analog output module used in Modicon TM5 systems to control devices such as valves, drives, and actuators using voltage or current signals.
Q2: What output signals does it support?
It supports -10 to +10 V voltage output and 0–20 mA current output, configurable per channel.
Q3: Is the TM5SAO2L isolated between channels?
No. The module does not provide channel-to-channel isolation, but it includes system-level isolation between the bus and I/O power segment.
Q4: What is the resolution of the module?
It provides 12-bit resolution with sign, enabling fine control of analog outputs.
Q5: What is the response time?
The output response time is typically 1 ms, suitable for fast control applications.
Q6: What are the dimensions and weight of the TM5SAO2L?
It measures 12.5 × 99 × 75 mm and weighs approximately 25 g, making it a very compact module.
Q7: What is the operating temperature range?
It operates from 0°C to 55°C, and up to 60°C with performance derating.
Q8: Which PLC systems is it compatible with?
It is designed for Modicon TM5 architectures, commonly used with Modicon M258 and LMC058 controllers.
