Technical Specifications
| Item | Specification |
|---|---|

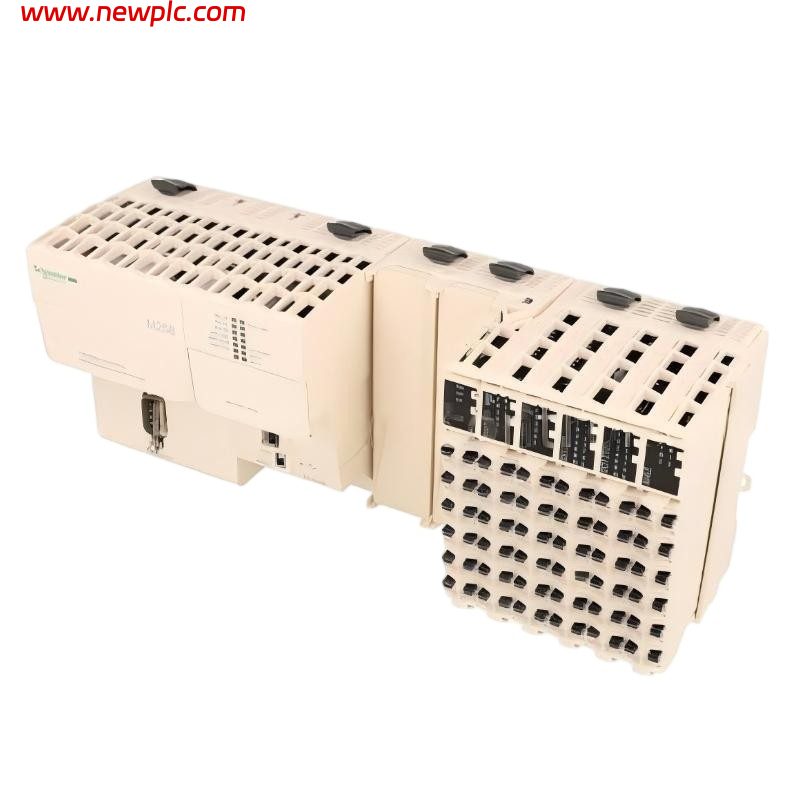

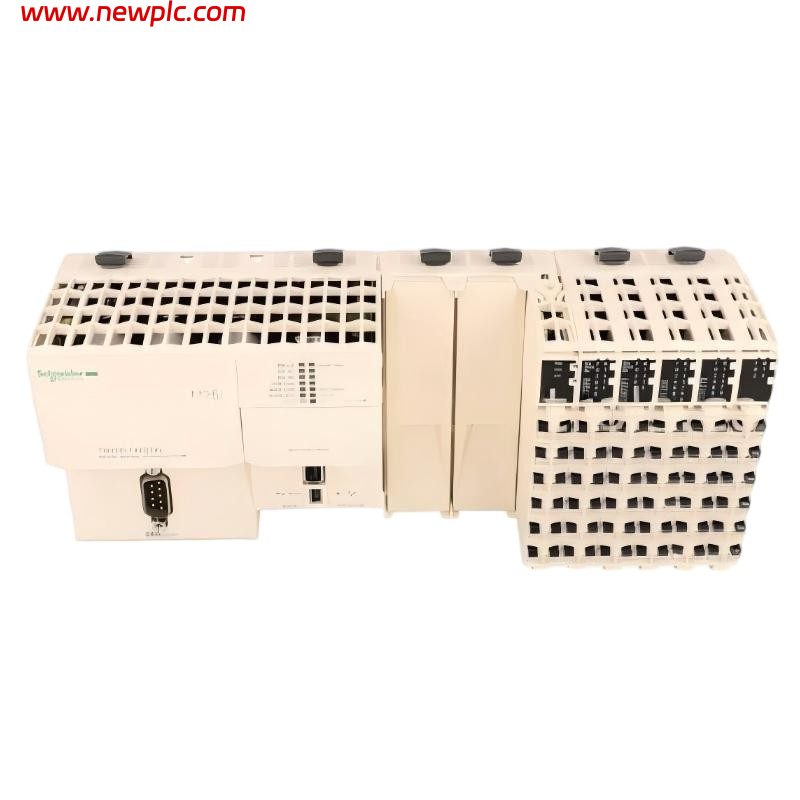

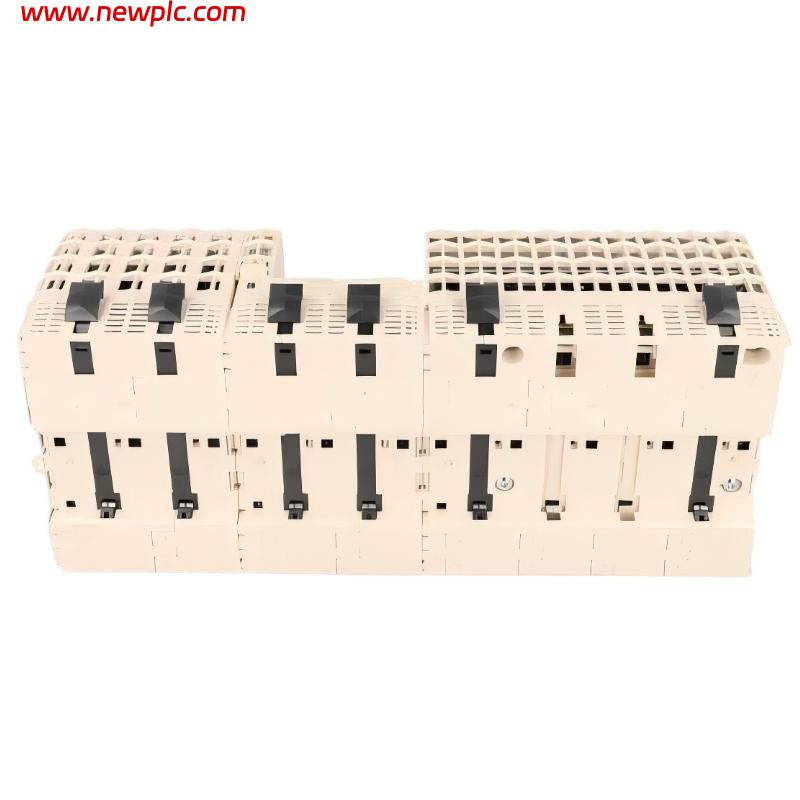

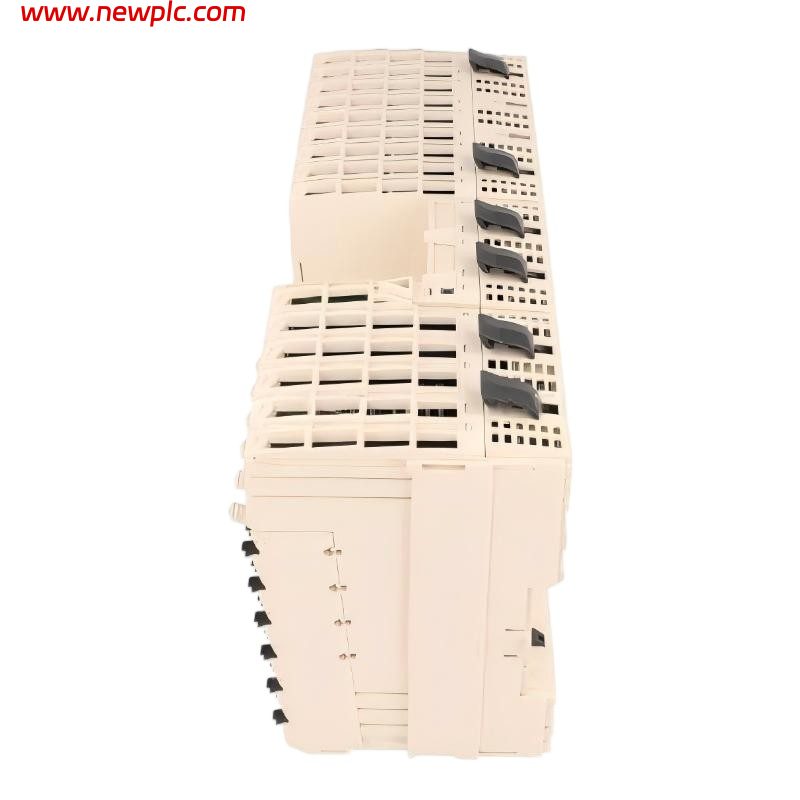

| Product Name | Schneider Electric TM258LF42DT4L |
| Product Type | Logic Controller (PLC) |
| Product Series | Modicon M258 |
| Controller Type | Compact Logic Controller |
| Power Supply Voltage | 24 V DC |
| Supply Voltage Range | 20.4–28.8 V DC |
| Digital Inputs | 26 Inputs |
| Fast Inputs | 10 Inputs |
| Regular Inputs | 16 Inputs |
| Digital Outputs | 16 Outputs |
| Fast Outputs | 4 Outputs |
| Analog Inputs | 4 Inputs |
| Analog Input Types | 0–20 mA, 4–20 mA, ±10 V |
| Analog Input Resolution | 12-bit |
| Program Memory | 128 MB Flash |
| RAM Memory | 64 MB Internal RAM |
| Processing Speed | 22 ns per Instruction |
| Ethernet Ports | 1 × Ethernet RJ45 |
| Serial Ports | 1 × RS232/RS485 |
| USB Ports | 1 × USB Mini-B, 1 × USB Type-A |
| CANopen Port | 1 × CANopen |
| Expansion Slots | 2 PCI Expansion Slots |
| Communication Protocols | Modbus TCP, Modbus Serial, EtherNet/IP, CANopen, TCP/IP |
| High-Speed Counter Inputs | 8 Inputs at 200 kHz |
| Mounting Method | DIN Rail |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +55°C (up to +60°C with derating) |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5%–95% Non-Condensing |
| Operating Altitude | Up to 2000 m |
| Certifications | CE, CSA, cULus, GOST-R, C-Tick |
| Standards | IEC 61131-2, UL 508, CSA C22.2 |
| Dimensions (W × H × D) | 237.5 × 99 × 85 mm |
| Weight | 0.77 kg |
FAQ
FAQ
Q1: What is the TM258LF42DT4L used for?
The TM258LF42DT4L is a high-performance PLC used for machine automation, motion control, packaging machinery, conveyors, and industrial OEM equipment. It combines control, communication, and I/O functions in a compact platform.
Q2: How many built-in I/O points does the controller provide?
The controller includes 26 digital inputs, 16 digital outputs, and 4 analog inputs, providing a total of 46 integrated I/O points.
Q3: Which communication protocols are supported?
The TM258LF42DT4L supports Ethernet TCP/IP, Modbus TCP, Modbus Serial, EtherNet/IP, and CANopen communication networks for integration with industrial devices and systems.
Q4: Does the controller support expansion modules?
Yes. The controller includes two PCI expansion slots and supports Schneider Electric TM5 expansion modules, allowing users to increase I/O capacity and functionality.
Q5: What memory capacity does the TM258LF42DT4L provide?
The controller features 128 MB of Flash memory and 64 MB of internal RAM, supporting complex machine control programs and data management tasks.
Q6: What are the dimensions and weight of the TM258LF42DT4L?
The controller measures 237.5 × 99 × 85 mm and weighs approximately 0.77 kg, making it suitable for DIN rail installation in industrial control panels.
Q7: What communication ports are available on the controller?
The unit includes one Ethernet port, one CANopen port, one RS232/RS485 serial port, one USB Mini-B programming port, and one USB Type-A transfer port.
Q8: What industries commonly use the TM258LF42DT4L?
The controller is widely used in packaging, food and beverage processing, material handling, assembly machines, textile machinery, and general industrial automation applications where high-speed control and networking capabilities are required.
