Technical Specifications
| Item | Specification |
|---|---|

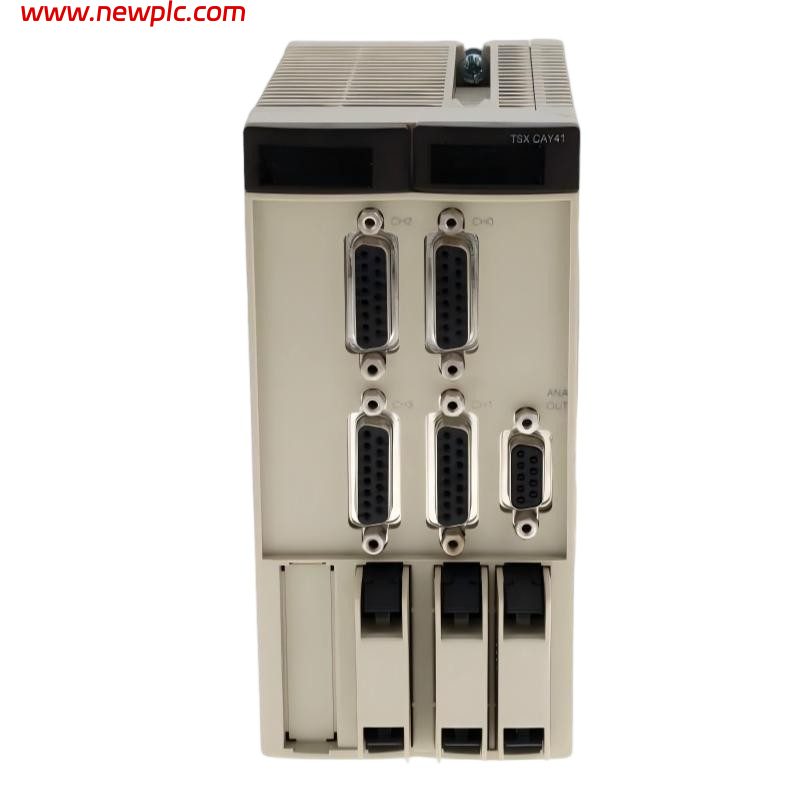

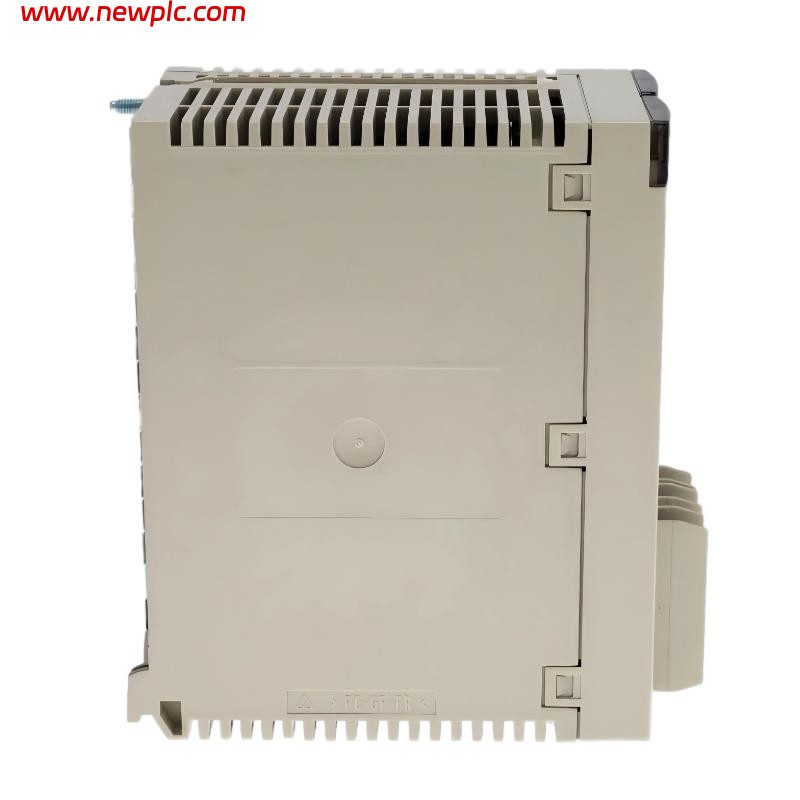

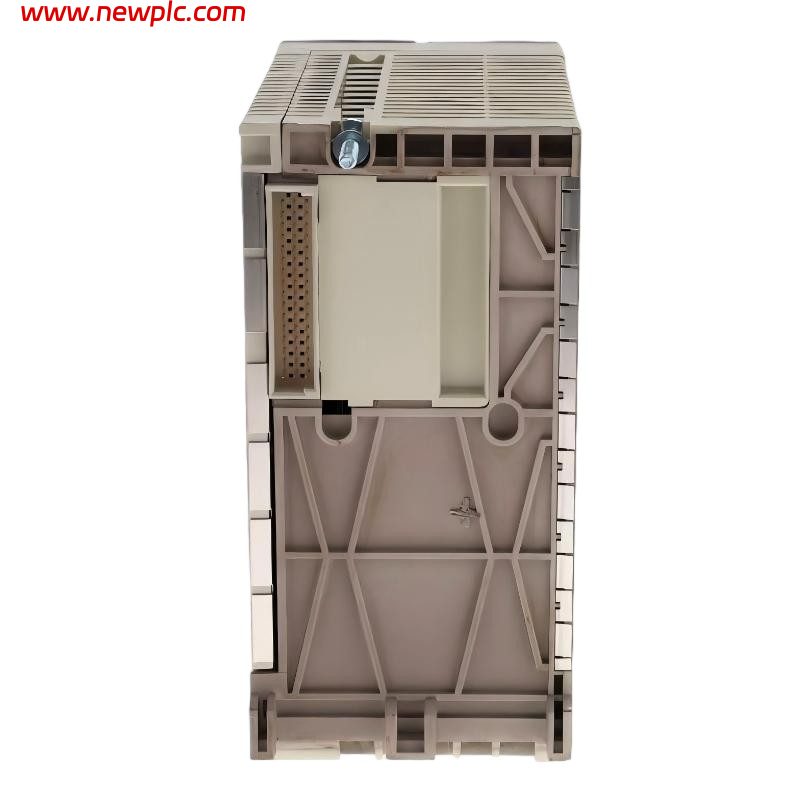

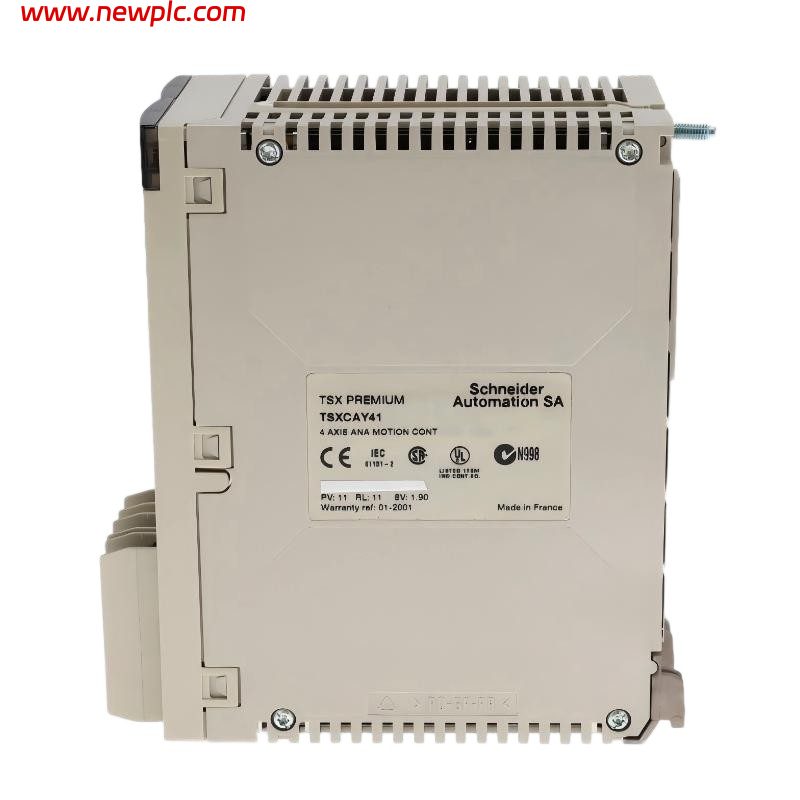

| Product Name | Schneider Electric TSXCAY41 |
| Product Type | Motion Control Module |
| Product Series | Modicon Premium |
| Application | Servo Motor Motion Control |
| Number of Axes | 4 Axes |
| Axis Types | Following Axis (Static Ratio), Limited Axis |
| Module Format | Double Format Module |
| Servo Loop Type | Proportional Control with Overshoot Compensation and Gain Switching |
| Operating Modes | Automatic, Manual, Direct Drive, Follower, OFF |
| Encoder Compatibility | SSI Absolute Encoder (16–25 Bits), Incremental Encoder RS422 5 V DC, Incremental Encoder 10–30 V Totem Pole |
| SSI Encoder Frequency | 200 kHz |
| Incremental Encoder Frequency (x1) | 500 kHz |
| Incremental Encoder Frequency (x4) | 1000 kHz Counting, 250 kHz Input |
| Position Resolution | 0.5 to 1000 Position Units per Point |
| Axis Length | 32,000 to 32,000,000 Position Units |
| Speed Profile | Trapezoidal or Parabolic |
| Acquisition Speed | 54,000 to 270,000 Points per Minute |
| Acceleration Time | 8 ms to 10 s |
| Analog Outputs | 4 Static Analog Outputs |
| Analog Output Range | ±10 V to ±24 V |
| Analog Output Resolution | 13 Bits + Sign |
| Digital Outputs | 4 Servo Drive Validation Outputs, 4 Reflex Outputs |
| Output Voltage | 24 V DC |
| Input Voltage | 24 V DC Auxiliary and Servo Inputs, 5 V DC Counter Input |
| Input Logic | Positive |
| Power Dissipation | 10–17 W |
| Current Consumption | 1500 mA at 5 V DC, 30 mA at 24 V DC |
| Status Indicators | RUN, ERR, External Fault, 4 Axis Diagnostic LEDs |
| Electrical Connections | HE10 Connectors, SUB-D 9, SUB-D 15 Connectors |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5%–95% Non-Condensing |
| Dimensions (W × H × D) | 180 × 260 × 95 mm |
| Weight | 0.88–0.90 kg |
| Country of Origin | France |
FAQ
FAQ
Q1: What is the TSXCAY41 used for?
The TSXCAY41 is a 4-axis motion control module designed for Modicon Premium PLC systems. It provides precise positioning and speed control for servo motor applications.
Q2: How many servo axes can the TSXCAY41 control?
The module supports up to four independent servo axes, making it suitable for multi-axis motion control systems.
Q3: Which encoder types are supported?
The TSXCAY41 supports SSI absolute encoders, incremental encoders with RS422 interfaces, and incremental encoders with 10–30 V totem-pole outputs.
Q4: What motion profiles can be configured?
Users can select either trapezoidal or parabolic motion profiles to optimize acceleration and deceleration performance according to application requirements.
Q5: What are the dimensions and weight of the TSXCAY41?
The module measures approximately 180 × 260 × 95 mm and weighs between 0.88 kg and 0.90 kg, depending on the source specification.
Q6: Which operating modes are available?
The TSXCAY41 supports Automatic, Manual, Direct Drive, Follower, and OFF operating modes, providing flexibility for different machine control requirements.
Q7: What is the maximum encoder frequency supported?
The module supports incremental encoder frequencies up to 1000 kHz in x4 counting mode and SSI absolute encoder frequencies up to 200 kHz.
Q8: Which PLC platform is compatible with the TSXCAY41?
The TSXCAY41 is designed specifically for the Schneider Electric Modicon Premium automation platform and integrates directly into Premium PLC architectures for advanced motion control applications.
