Technical Specifications
| Parameter | Specification |
|---|---|

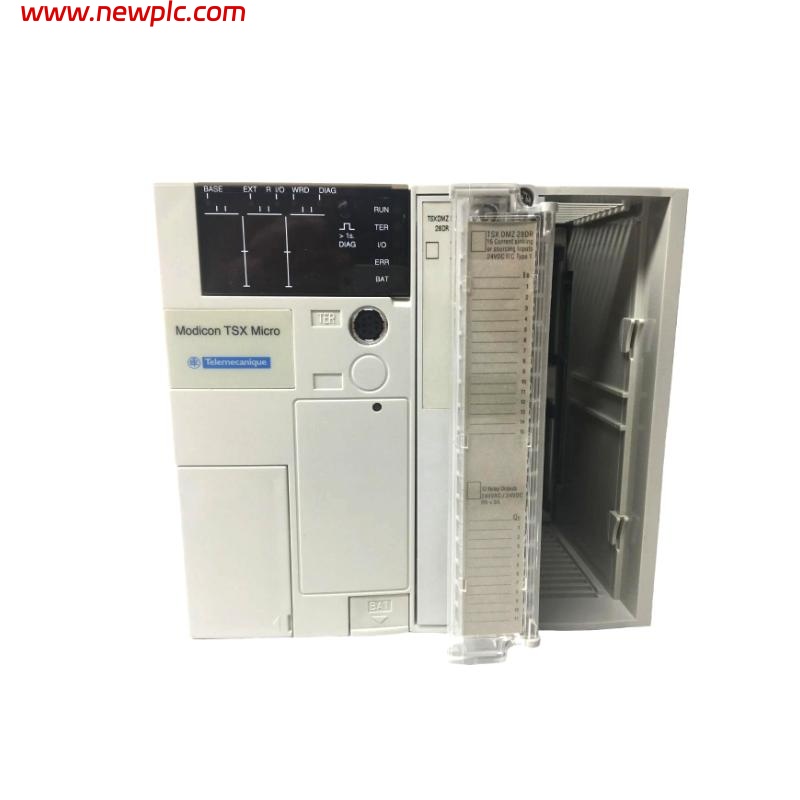

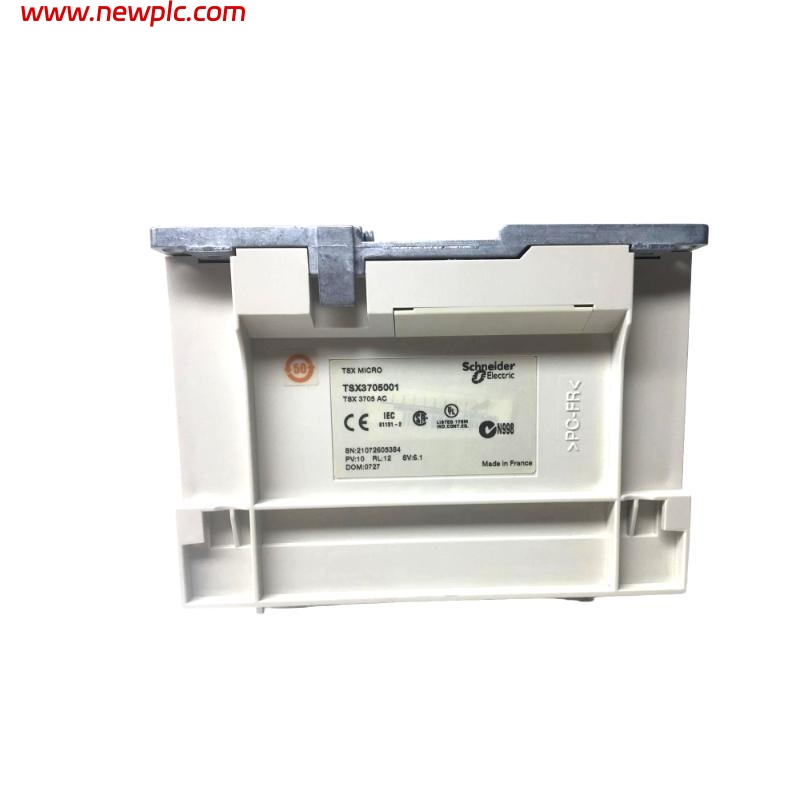

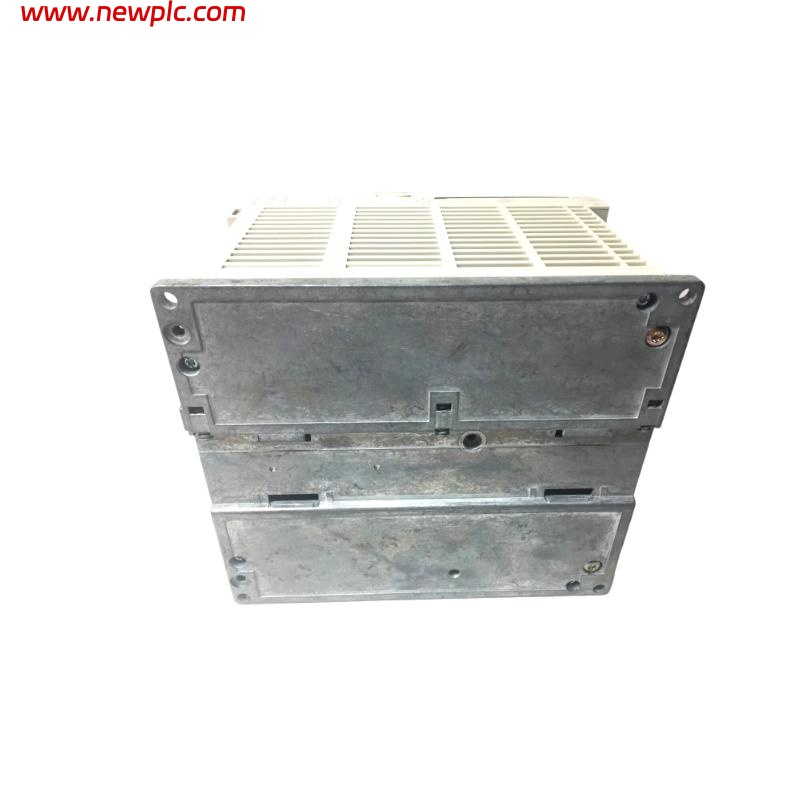

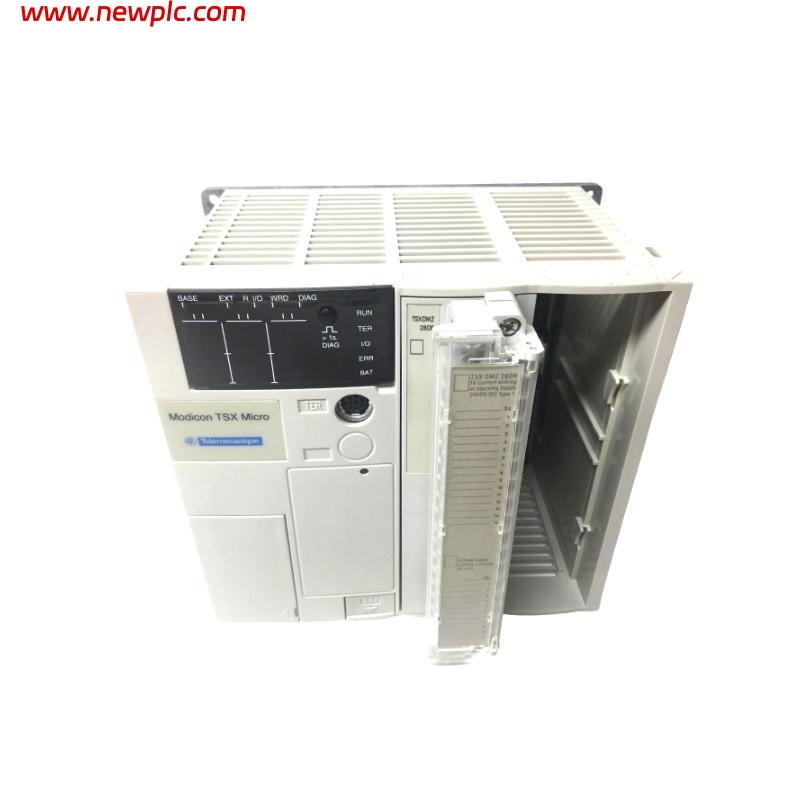

| Product Model | Schneider TSX3705028DR1 |
| Series | Modicon TSX Micro Series |
| Type | Modular Base Controller |
| Integrated Power Supply | 100–240 V AC |
| Processor Memory (RAM) | 11 Kwords |
| Flash EPROM Backup Memory | 12 Kwords |
| Discrete I/O | 16 digital inputs (24 VDC) + 12 relay outputs (24 VDC) |
| I/O Connection | Screw terminal block |
| Expansion Slot | 1 available slot (supports 1 standard or 2 half-format I/O modules) |
| Communication Port | 1 x TER port (Uni-Telway master/slave, Modbus RTU slave, character string) |
| Central Display | LED indicators for RUN, TER, I/O, ERR, BAT + 4-digit display |
| Mounting | DIN rail or panel mounting |
| Operating Temperature Range | 0°C to +60°C (up to 70°C with TSX FAN modules) |
| Storage Temperature Range | -25°C to +70°C |
| Humidity | 10% to 95% (non-condensing) |
| Shock/Vibration Resistance | IEC 68-2-6 (vibration), IEC 68-2-27 (shock) |
| Dimensions (W x H x D) | 187.3 x 151 x 152 mm |
| Weight | 2.37 kg |
FAQ
FAQ
Q1: How many I/O points does the TSX3705028DR1 support?
A1: It comes with 16 digital inputs and 12 relay outputs, with an expansion slot for additional I/O modules.
Q2: What communication protocols are supported?
A2: Supported protocols include Uni-Telway (master/slave), Modbus RTU (slave), and character mode.
Q3: Does it have a display interface?
A3: Yes, it features a centralized LED display with operational status indicators and a 4-digit display.
Q4: Can additional modules be added?
A4: Yes, one standard module or two half-format modules can be added via the expansion slot.
Q5: What is the operating temperature range?
A5: The standard operating range is 0°C to 60°C, and up to 70°C with ventilation modules.
Q6: What installation methods are supported?
A6: It can be installed using DIN rails or mounted directly on a panel.
Q7: Does it have backup memory for power loss situations?
A7: Yes, it includes 12 Kwords of Flash EPROM to retain program data during power loss.
Q8: What is the onboard memory capacity?
A8: It has 11 Kwords of RAM for application programs and 12 Kwords of Flash EPROM for backup.
