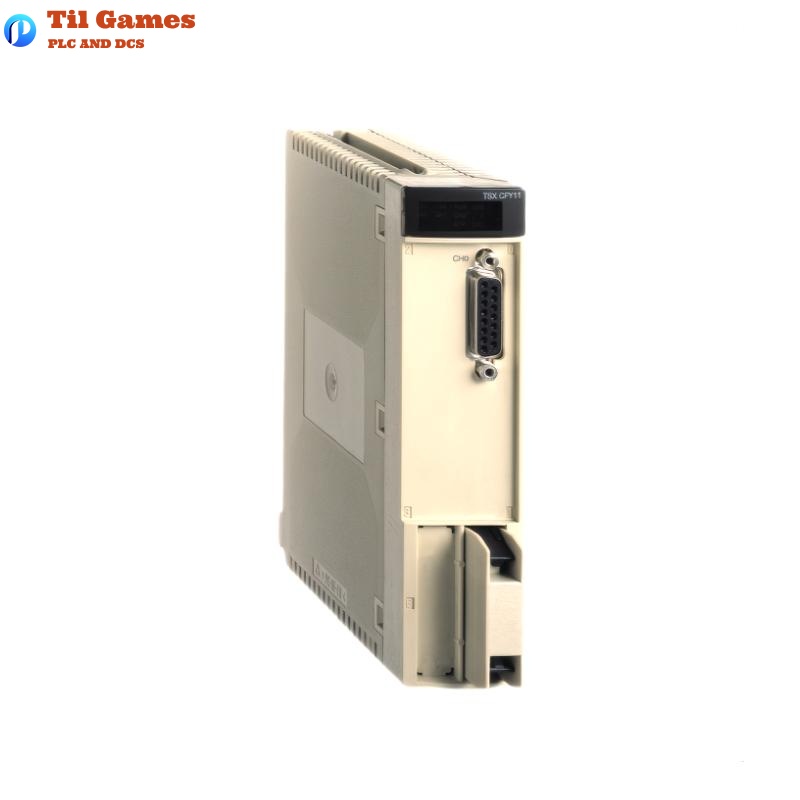

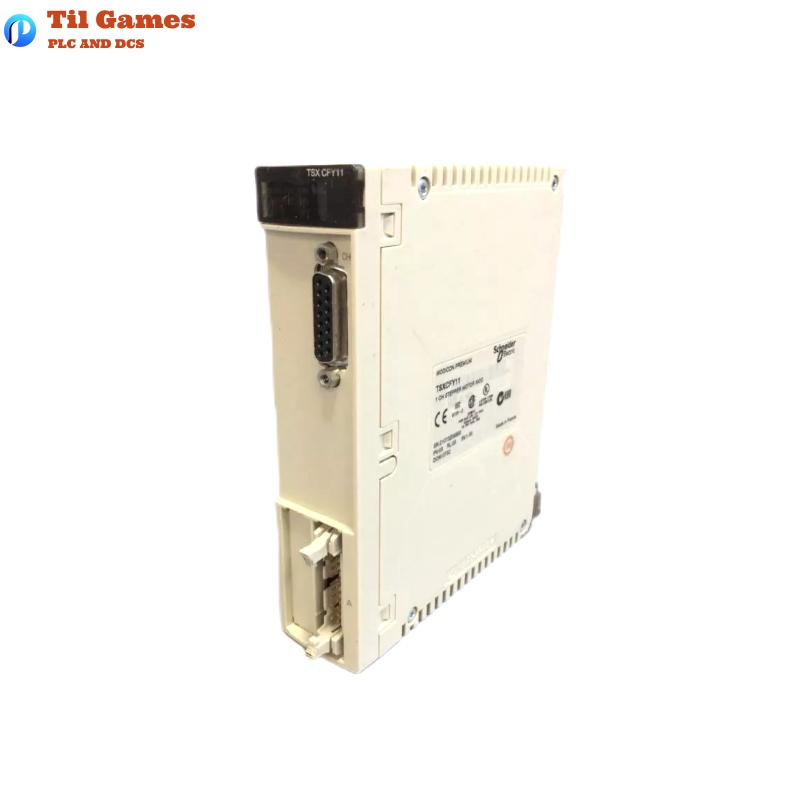

Technical Specifications

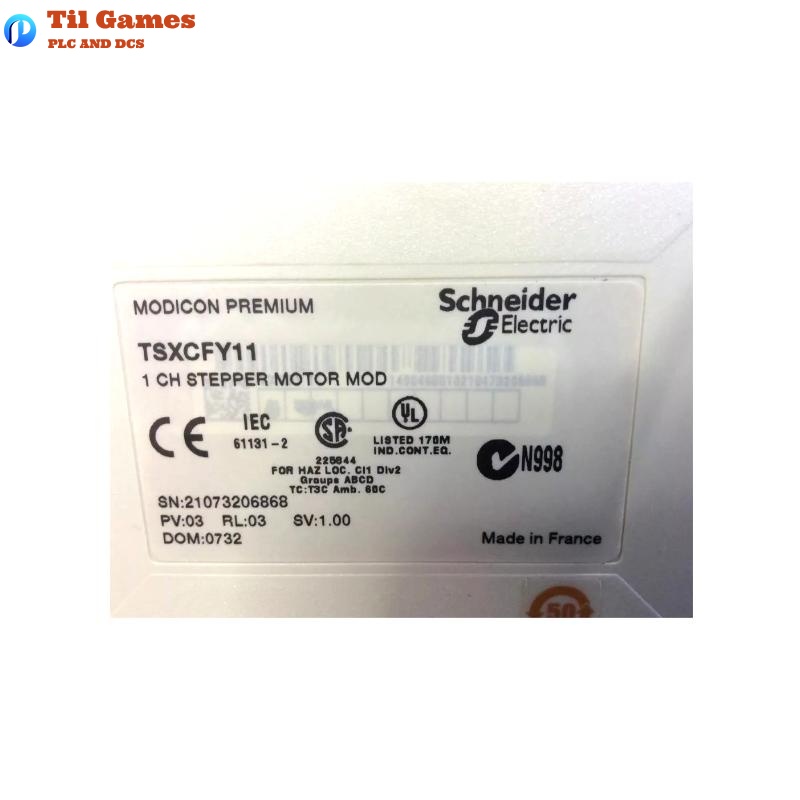

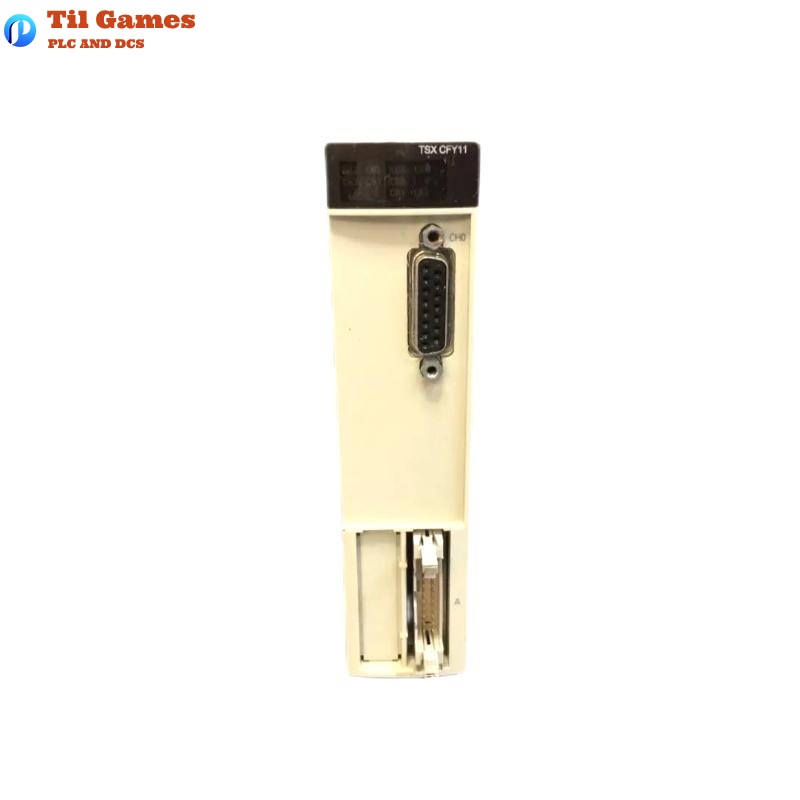

| Item | Specification |
|---|---|
| Range of Product | Modicon Premium Automation Platform |
| Product or Component Type | Motion Control Module |
| Product-Specific Application | For stepper motor control |
| Software Designation | Unity Pro |
| I/O Modularity | 1 axis |
| Maximum Pulse Frequency | 187 kHz |
| Power Dissipation | 3.8 W |
| Input Type | Current sink (EN/IEC 61131 Type 2) Amplifier input (positive/negative) Auxiliary input |
| Input Voltage (Auxiliary) | 24 V, 7 mA |
| Input Voltage (Amplifier) | 5 V, 4.5 mA |
| Input Voltage Range (Aux) | 19…30 V |
| Voltage State 1 Guaranteed | ≥ 11 V (auxiliary), < 2 V (amplifier) |
| Current State 1 Guaranteed | ≥ 6 mA (auxiliary) |
| Voltage State 0 Guaranteed | ≤ 5 V (auxiliary), > 3.6 V (amplifier) |
| Current State 0 Guaranteed | ≤ 2 mA (auxiliary) |
| Input Impedance (Auxiliary) | 3400 Ω |
| Input Immunity | Varies by input type, refer to specification |
| Power Supply Monitoring | Fault: 0…14 V, OK: 18…24 V (auxiliary) |
| Detection Time | Fault to OK: < 30 ms OK to Fault: > 1 ms |
| Input Compatibility | Supports 2-wire/3-wire sensors (auxiliary input) |
| Output Type | Open collector PNP (brake), RS422/TTL 5V open collector NPN (amplifier) |
| Differential Output Voltage | ±2 V (≤ 100 Ω) |
| Max Output Short Circuit | 150 mA (amplifier output) |
| Common Mode Voltage | 7 V (amplifier output) |
| Max Differential Voltage | 12 V (amplifier output) |
| Output Voltage (Brake) | 24 V DC (range 19…30 V) |
| Nominal Output Current | 0.5 A; peak 0.625 A |
| Max Voltage Drop | < 1 V (brake ON state) |
| Switching Time | < 0.25 ms (brake) |
| Output Compatibility | Positive logic DC input (≤ 15 kΩ) |
| Short-Circuit Protection | Thermal trip (software or auto) |
| Overload Protection | Current limiting (brake output) |
| Overvoltage Protection | Zener diode (brake output) |
| Reverse Polarity Protection | Diode reverse-mounted (brake output) |
| Speed Profile | Trapezoidal |
| Operating Modes | OFF, Manual, Direct Drive, AUTO |
| Check Functions | Amplifier, limits, emergency stop, short circuit, parameter validity |
| Local Signalling | RUN (green), I/O fault (red), ERR (red), CH. diagnostics (green x2) |
| Electrical Connection | HE-10 20-pin connector, SUB-D 15 |
| Current Consumption | 510 mA @ 5 V DC, 50 mA DC |
| Module Format | Standard |
| Dimensions | 200 x 151.5 mm |
| Net Weight | 0.44 kg |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -25…70 °C |
| Relative Humidity | 5–95% non-condensing |
| Operating Altitude | ≤ 2000 m |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many axes does the TSXCFY11 support?
A1: The TSXCFY11 supports control of one axis only.
Q2: Is this module compatible with servo motors?
A2: No, it is specifically designed for stepper motor applications.
Q3: What configuration software is used?
A3: Unity Pro software is used for configuration and programming.
Q4: Does the module offer short-circuit protection?
A4: Yes, it includes thermal trip protection along with current and overvoltage safeguards.
Q5: How can I check if the module is functioning properly?
A5: The green RUN LED on the front panel indicates normal operation.
Q6: What is the maximum output current for the brake function?
A6: The brake output current is rated at 0.5 A, with a peak of 0.625 A.
Q7: What types of input sensors are compatible?
A7: The auxiliary input is compatible with both 2-wire and 3-wire sensors.
Q8: Does the module perform internal safety checks?
A8: Yes, it monitors limits, emergency stop signals, amplifier status, and parameter consistency.
