Technical Specifications
| Item | Description |
|---|---|

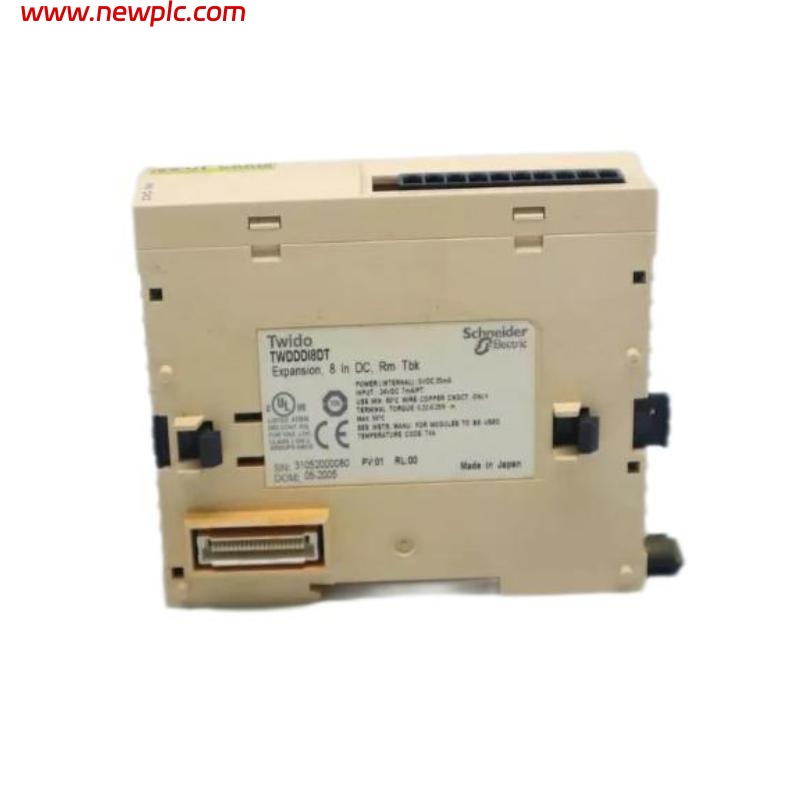

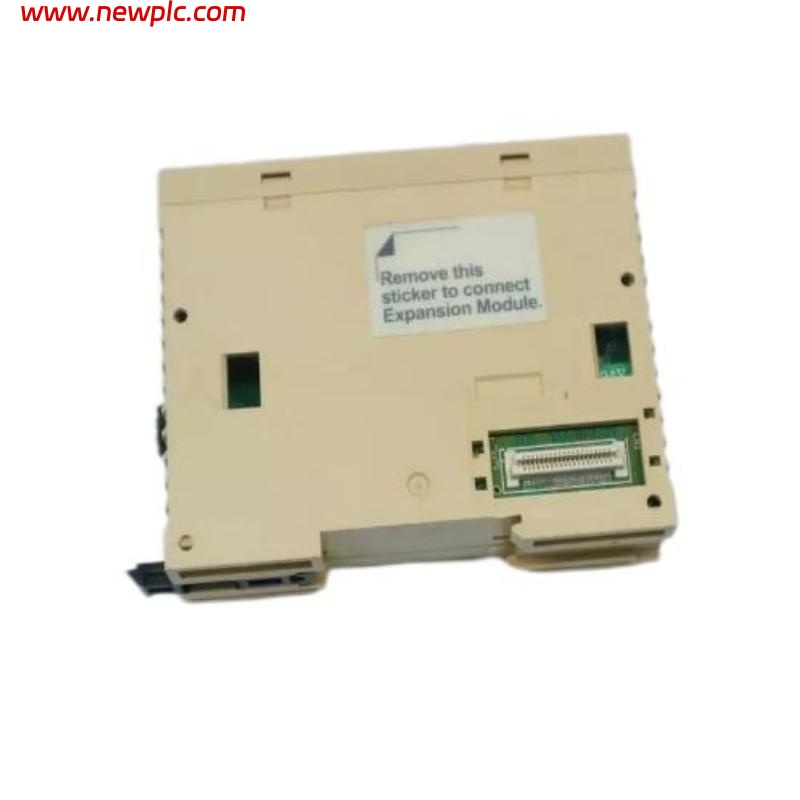

| Product Name | Schneider TWDDDI8DT Discrete Input Module |
| Module Type | Discrete Input Module |
| Compatible System | Schneider Modicon Twido PLC Series |
| Input Points | 8 DC input channels |
| Rated Input Voltage | 24 VDC |
| Input Voltage Range | 20.4 to 28.8 VDC |
| Input Type | Sink or Source |
| Input Current per Channel | Approx. 7 mA @ 24 VDC |
| Input Impedance | 3.4 kΩ |
| Filter Time | 8 ms ON / 8 ms OFF |
| Isolation | 1500 Vrms between input and logic for 1 minute |
| Internal Current (All ON) | 25 mA @ 5 VDC |
| Internal Current (All OFF) | 5 mA @ 5 VDC |
| Protection Rating | IP20 |
| Operating Temperature | 0 to +55°C |
| Storage Temperature | -25 to +70°C |
| Humidity | Up to 95% non-condensing |
| Dimensions | Package dimensions: 125 × 100 × 70 mm |
| Weight | 0.085 kg |
FAQ
FAQ
Q1: What is the main function of the TWDDDI8DT module?
A1: It receives 24V DC digital input signals from field devices such as switches, sensors, and push buttons, and transmits them to the Twido PLC.
Q2: What type of input logic does it support?
A2: The module supports both Sink and Source input logic configurations.
Q3: What is the rated input voltage?
A3: The rated input voltage is 24V DC, with an acceptable range of 20.4 to 28.8V DC.
Q4: What is the input response time?
A4: The input filter time is 8 milliseconds for ON and 8 milliseconds for OFF.
Q5: Which PLC series is this module compatible with?
A5: It is compatible with Schneider Modicon Twido PLC series and can be directly mounted as an expansion module.
Q6: How is the module installed?
A6: The module is designed for DIN rail mounting, compact, and easy to install or maintain.
Q7: What are the environmental limitations for operation?
A7: Operating temperature range is 0 to +55°C, with up to 95% non-condensing humidity and IP20 protection.
Q8: What are the module’s dimensions and weight?
A8: Package dimensions: 125 × 100 × 70 mm and weighs is 0.085 kg.
