Technical Specifications
| Item | Description |
|---|---|

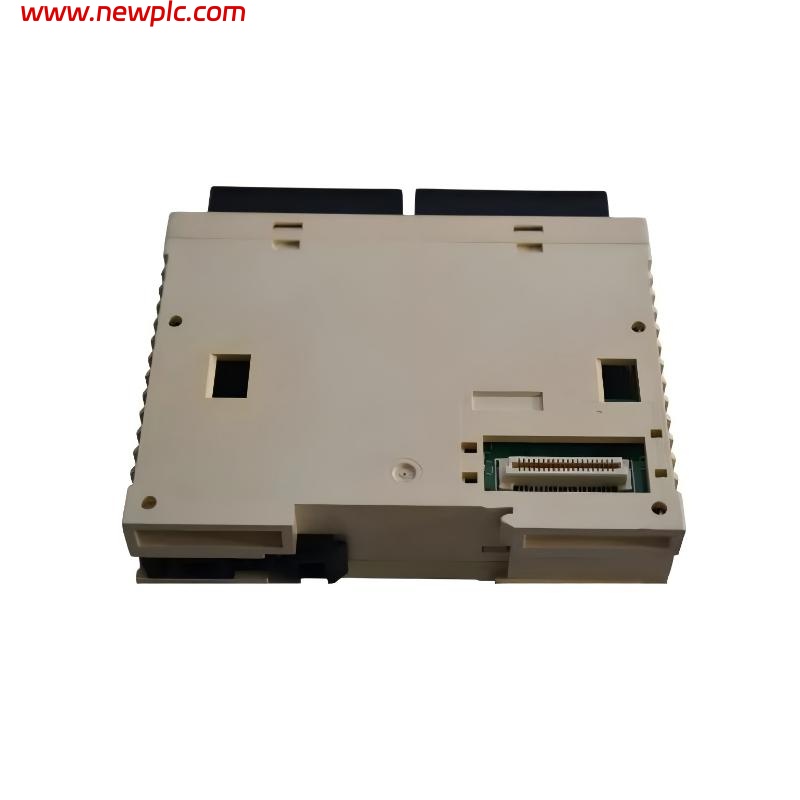

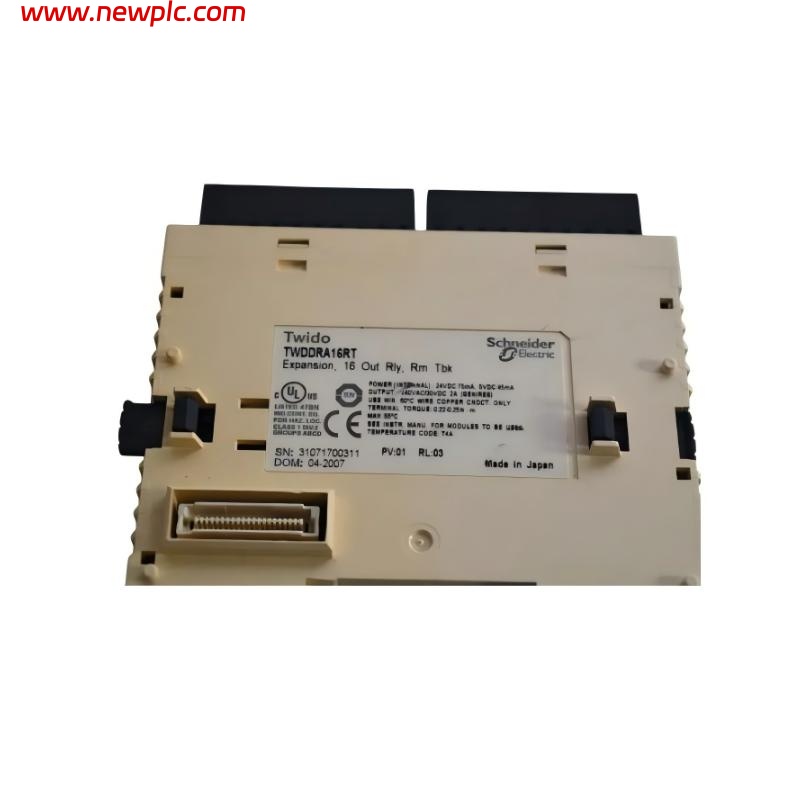

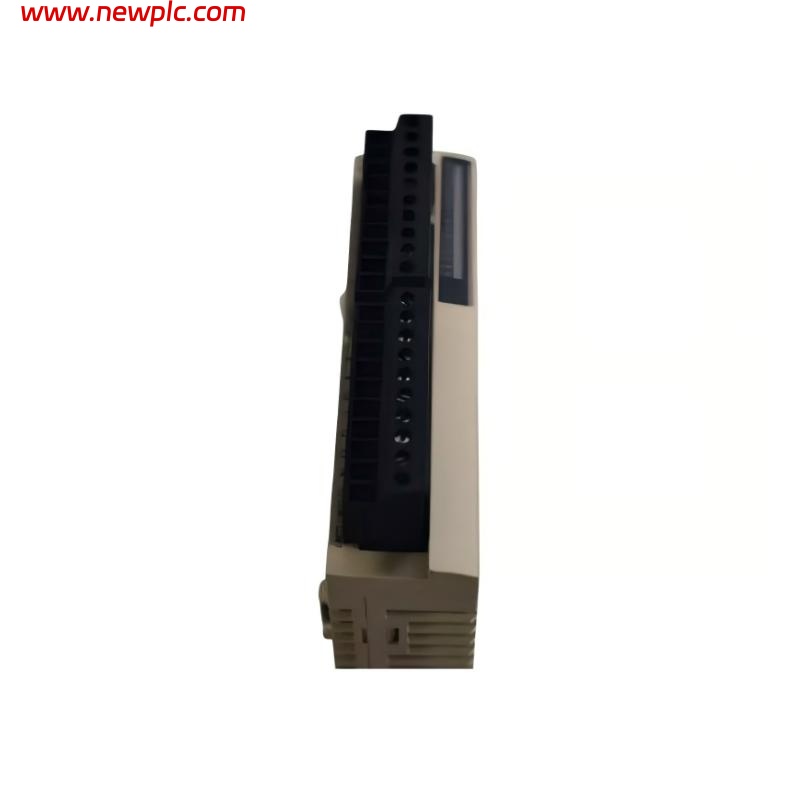

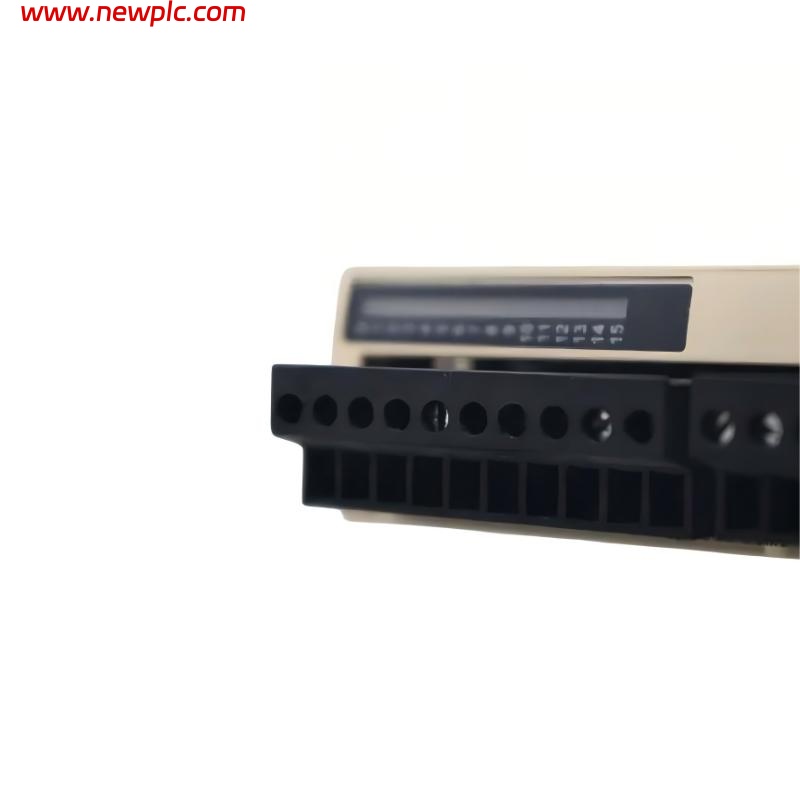

| Product Name | Schneider TWDDRA16RT Discrete Output Module |
| Module Type | Discrete Relay Output Module |
| Compatible System | Schneider Modicon Twido PLC Series |
| Output Points | 16 relay outputs |
| Output Type | Relay contacts (SPST-NO) |
| Rated Output Voltage | 24 VDC / 240 VAC |
| Maximum Output Current | 2 A per point (AC or DC) |
| Total Output Current | 8 A per group of 8 points |
| Contact Type | Potential-free (dry contact) |
| Isolation Strength | 2000 Vrms between logic and output for 1 minute |
| Switching Frequency | 0.1 Hz (at max load) to 10 Hz (at low load) |
| Response Time | ON: 10 ms / OFF: 5 ms |
| Indicators | Status LED per output channel |
| Protection Rating | IP20 |
| Power Supply | Powered by main PLC (5 VDC) |
| Operating Temperature | 0 to +55°C |
| Storage Temperature | -25 to +70°C |
| Humidity | Up to 95% non-condensing |
| Dimensions | Package dimensions: 125 × 100 × 70 mm |
| Weight | 0.085 kg |
FAQ
FAQ
Q1: What is the main function of the TWDDRA16RT module?
A1: It outputs control signals from the Twido PLC through relay contacts to operate external loads such as lamps, relays, and valves.
Q2: What is the maximum load per output point?
A2: Each output channel supports up to 2 A at 24 VDC or 240 VAC.
Q3: What types of loads can this module control?
A3: It can control AC or DC loads such as solenoid valves, indicator lamps, and small motors.
Q4: Does the module have indicator LEDs?
A4: Yes, each output channel includes an LED indicator showing the output status.
Q5: Which PLC series is it compatible with?
A5: It is compatible with the Schneider Modicon Twido PLC series and mounts directly in its expansion slot.
Q6: How good is the isolation performance?
A6: The logic and output circuits are isolated by 2000 Vrms for one minute.
Q7: What are the environmental requirements?
A7: Operating temperature 0 to +55°C, humidity up to 95% non-condensing, protection rating IP20.
Q8: What are the module’s dimensions and weight?
A8: Package dimensions: 125 × 100 × 70 mm, and the weight is 0.085 kg.
