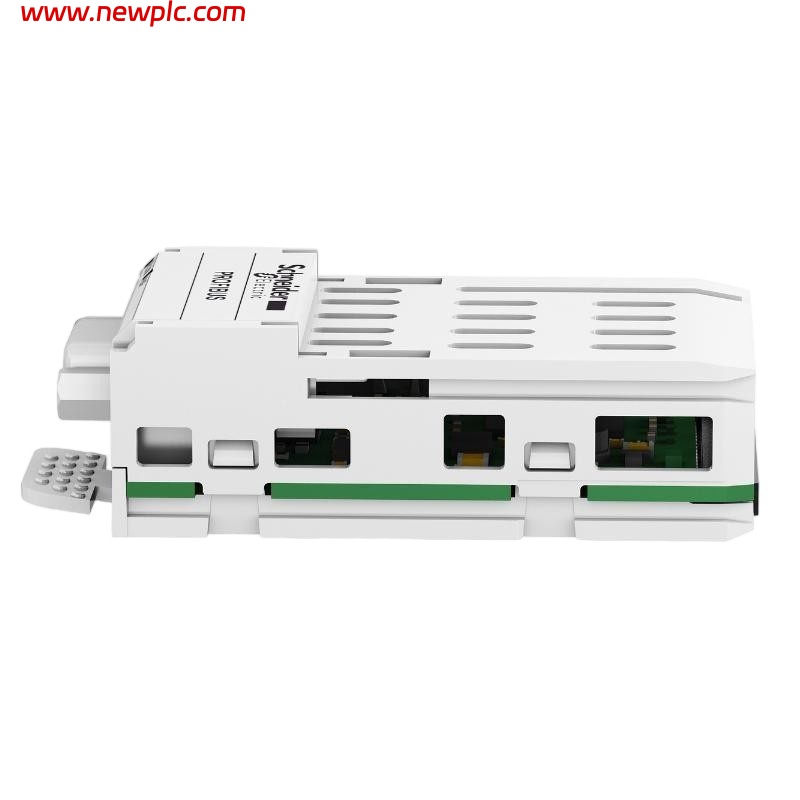

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model Number | VW3A3607 |
| Product Type | Communication Module |
| Product Range | Altivar |
| Communication Protocol | PROFIBUS DP V1 |

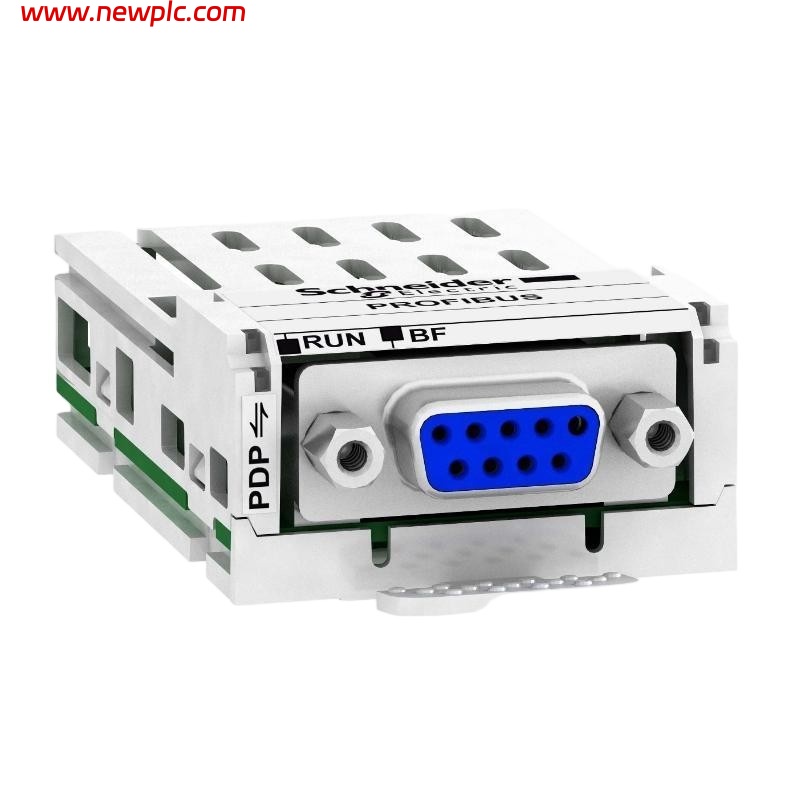

| Communication Port | 1 × 9-pin female SUB-D connector |
| Transmission Rate | 9.6 kbps to 12 Mbps |
| Address Range | 1–126 configurable via terminal or SoMove software |
| Communication Profile | PROFIdrive, CiA 402 |
| Supported Communication Services | Configurable telegrams, process data mapping, DP V1 messaging |
| Diagnostic Functions | VSD status diagnostics, maintenance identification, dual master handling (MS0/MS1) |

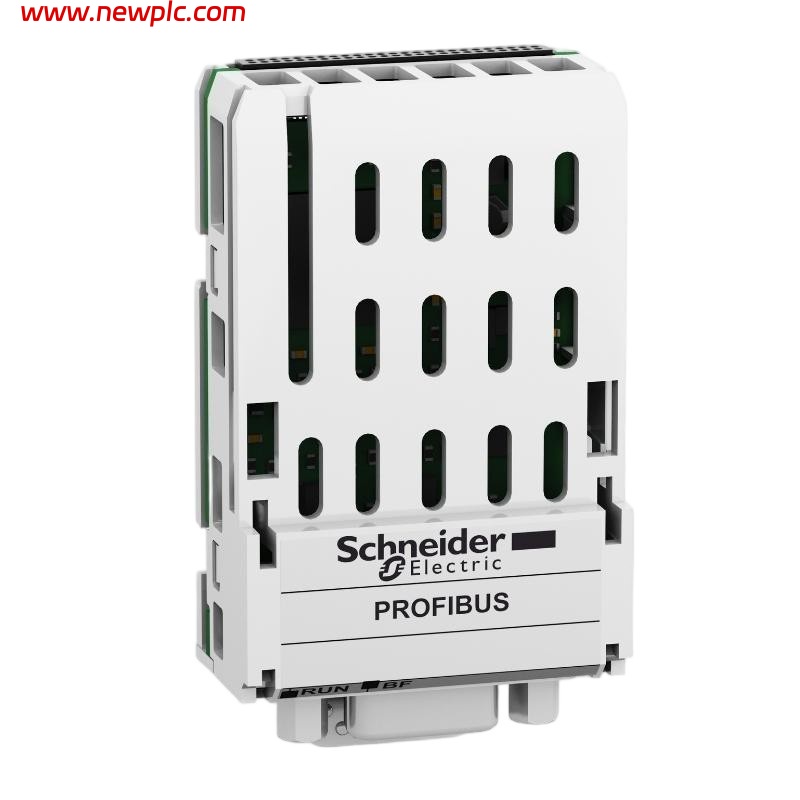

| Indicator Type | 1 RUN LED, 1 Bus Fault (BF) LED |
| Compatible Drives | Altivar 32, Altivar Machine ATV320/ATV340, Altivar Easy 610, Altivar Process ATV600/ATV900, Lexium 32 |
| Electrical Connection | SUB-D9 female connector |
| Standards | IEC 61800-7-201 (CiA 402) |
| Country of Origin | China |
| Product Dimensions (L × W × H) | 9.0 × 6.1 × 4.7 cm |
| Product Weight | Approximately 0.14 kg |
| Packaging Weight | About 0.061 kg |
FAQ
FAQ
Q1. What is the primary function of the VW3A3607 module?
It enables Altivar variable speed drives to communicate with industrial control systems through the PROFIBUS DP V1 network.
Q2. Which drives are compatible with the VW3A3607?
It works with several Schneider Electric drives, including Altivar 32, Altivar Machine ATV320 and ATV340, Altivar Easy 610, Altivar Process ATV600/900, and Lexium 32 drives.
Q3. What communication protocol does the module support?
The module supports the PROFIBUS DP V1 protocol with PROFIdrive and CiA 402 drive profiles.
Q4. What is the maximum communication speed supported?
The communication rate ranges from 9.6 kbps up to 12 Mbps depending on the network configuration.
Q5. How is the module connected to the network?
It uses a standard 9-pin female SUB-D connector designed for PROFIBUS connections.
Q6. Does the module provide status indicators?
Yes. It includes LED indicators for RUN status and Bus Fault (BF) diagnostics.
Q7. How is the node address configured?
The address can be set from 1 to 126 using a graphic terminal or Schneider Electric SoMove configuration software.
Q8. Is the VW3A3607 easy to install on drives?
Yes. The module uses a plug-in design, allowing quick installation or replacement on compatible Altivar drives.
