Technical Specifications
| Parameter | Specification |
|---|---|

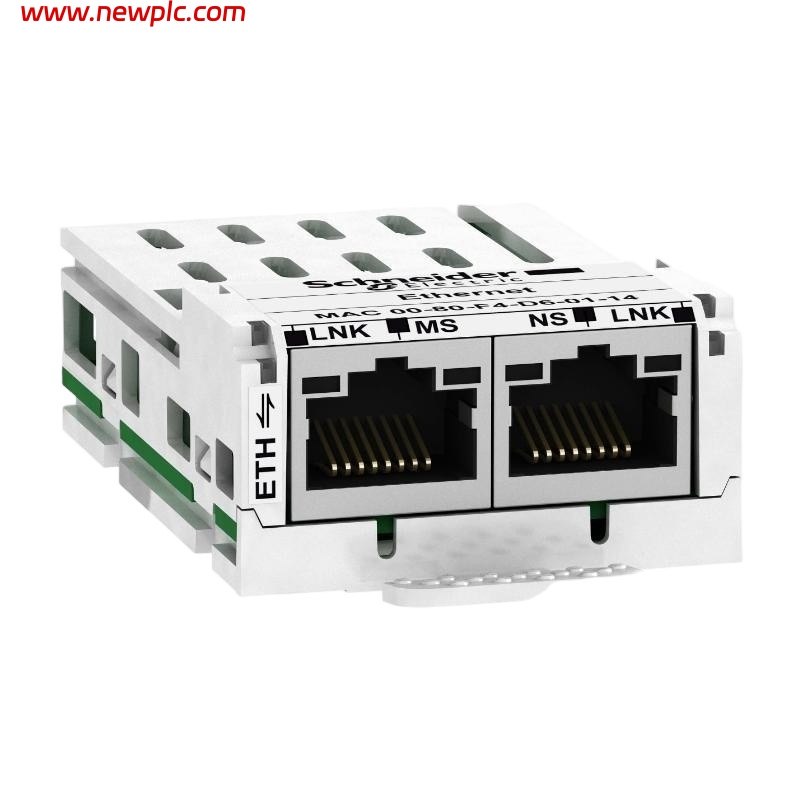

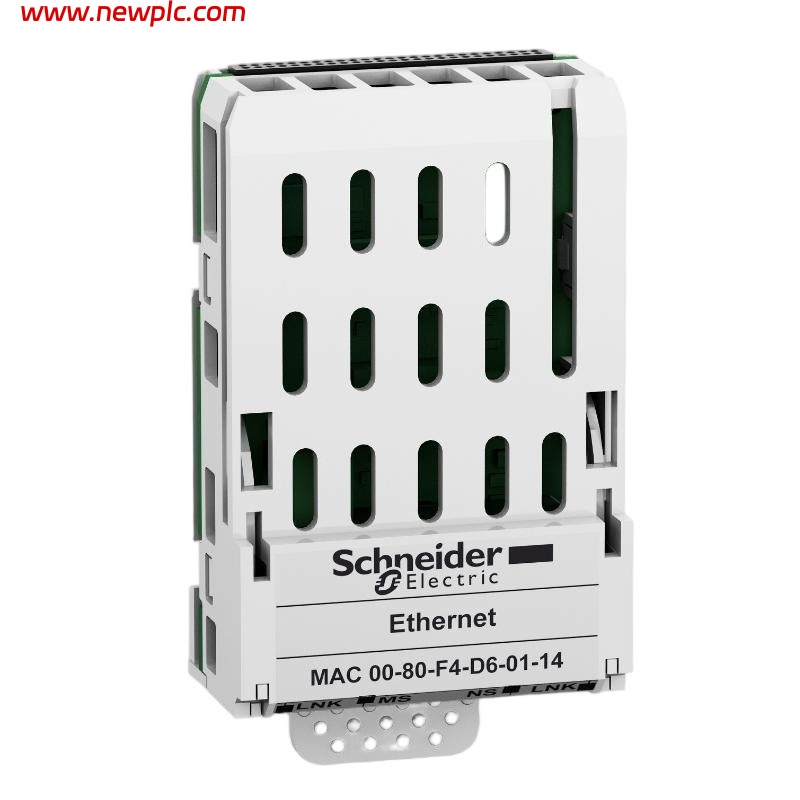

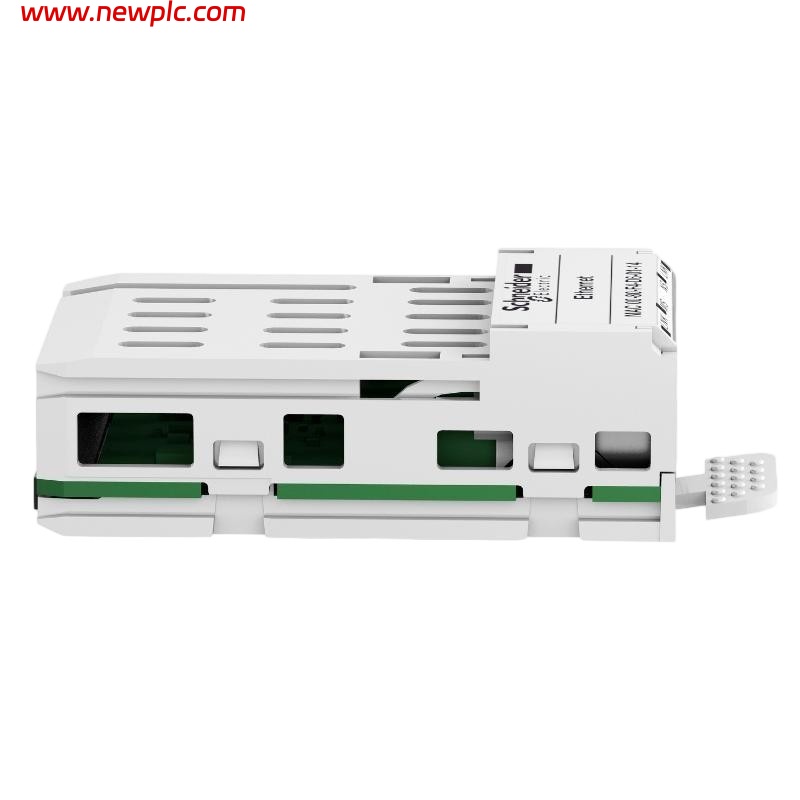

| Product | Schneider Electric VW3A3616 |
| Manufacturer | Schneider Electric |
| Model Number | VW3A3616 |
| Product Type | Ethernet TCP/IP & Modbus TCP Communication Module |
| Compatible Drives | Altivar Machine ATV320, Altivar 32, Lexium 32 drives |
| Communication Protocols | Ethernet TCP/IP, Modbus TCP |
| Connectors | 2 × RJ45 (10/100 Mbps) |
| Transmission Rate | 10 / 100 Mbps |
| Addressing | Manual IP, BOOTP, DHCP |
| Exchange Mode | Half‑duplex and Full‑duplex |
| Communication Services | Up to 8 simultaneous connections; Modbus services (read/write) |
| Status Indicators | LED: Module Status (MS), Network Status (NS), Ethernet activity, Modbus TCP activity |
| Electrical Connection | 2 × RJ45 communication ports |
| Standards & Compliance | Typical industrial Ethernet standards; safety/compliance varies by region |
| Net Weight | ~0.3 kg (~0.66 lb) |
| Dimensions (W × H × D) | 6.1 cm × 4.2 cm × 9.0 cm (2.4 in × 1.7 in × 3.5 in) |
| Package Weight | ~62 g (single unit packing) |
| Warranty | 18 months (contractual) |
| Country of Origin | China |
FAQ
FAQ
Q1. What network protocols does this module support?
It supports both Ethernet TCP/IP and Modbus TCP communication protocols.
Q2. Which drives is the VW3A3616 compatible with?
It is compatible with Altivar Machine ATV320, Altivar 32, and Lexium 32 drive series.
Q3. How does network addressing work on this module?
IP addressing can be configured manually or automatically via BOOTP or DHCP.
Q4. How many Ethernet ports are on this module?
The module features two RJ45 connectors supporting 10/100 Mbps.
Q5. What physical size and weight does this module have?
The module measures approximately 6.1 cm × 4.2 cm × 9.0 cm and weighs about 0.3 kg.
Q6. What LEDs are provided for status indication?
It includes LEDs for Module Status (MS), Network Status (NS), Ethernet activity, and Modbus TCP activity.
Q7. How many simultaneous connections can be handled?
It can handle up to 8 simultaneous connections across Ethernet IP and Modbus TCP.
Q8. Does the module require a specific mounting orientation?
The module is a plug‑in accessory that mounts directly to the drive’s communication slot without special orientation requirements specified.
