Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Controller Module |

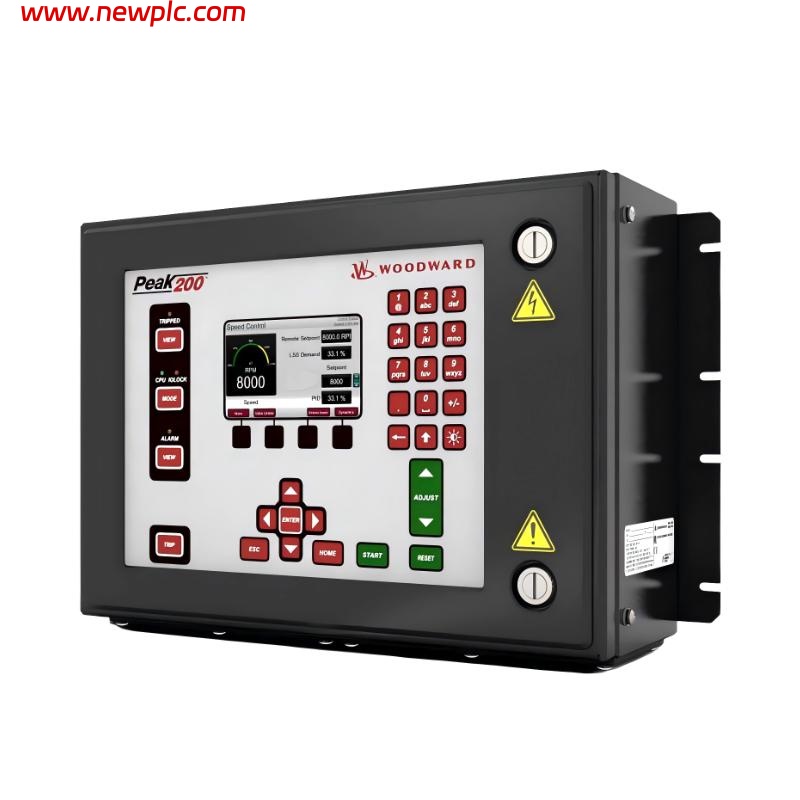

| Model Number | Woodward 8200-1508 |
| Dimensions | 215.9 × 157.48 × 78.74 mm |
| Weight | 1.9 kg |
| Function | Central control unit for turbine and engine management systems |
| Processor Type | High-performance 32-bit microcontroller |
| Memory | 256 KB Flash, 64 KB RAM |
| Input Channels | 16 configurable analog/digital inputs |
| Output Channels | 16 configurable analog/digital outputs |
| Communication Interfaces | RS-232, RS-485, CAN bus, Ethernet |
| Power Supply | 24 V DC nominal |
| Power Consumption | 10 W typical |
| Operating Voltage Range | 18–32 V DC |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Isolation Voltage | 1500 V RMS between communication, I/O, and power circuits |
| Diagnostic Features | Built-in self-test (BIST) and watchdog monitoring |
| Firmware Update | Field-upgradable via communication interface |
| Mounting Type | DIN rail or panel mount |
| Application Areas | Turbine control, engine management, and industrial automation systems |
FAQ
FAQ
Q1: What is the main purpose of the Woodward 8200-1508 Controller Module?
A1: The 8200-1508 serves as the core processing and control unit in Woodward’s turbine and engine management systems, providing precise monitoring and real-time control functions.
Q2: What communication interfaces are available on this module?
A2: It supports multiple interfaces including RS-232, RS-485, CAN bus, and Ethernet, allowing flexible connectivity with other devices and systems.
Q3: Can the input and output channels be configured for different functions?
A3: Yes, the 16 input and 16 output channels can be configured as analog or digital depending on the application requirements.
Q4: How does the module ensure reliable operation in harsh environments?
A4: It is built with industrial-grade components, features high electrical isolation, and operates within a wide temperature range from -20°C to +70°C.
Q5: What diagnostic features does the 8200-1508 include?
A5: It incorporates built-in self-test (BIST), watchdog monitoring, and communication error detection to ensure continuous system integrity.
Q6: Is the firmware of the module user-upgradable?
A6: Yes, firmware updates can be performed in the field via supported communication ports, ensuring easy maintenance and performance improvements.
Q7: What power supply does the controller require?
A7: The module operates from a 24 V DC power source and is designed to handle voltage variations between 18 and 32 V DC.
Q8: In what types of applications is the Woodward 8200-1508 typically used?
A8: It is widely used in turbine and engine control systems, power generation plants, and industrial automation where reliable and precise control is essential.
