Technical Specifications
| Parameter | Specification |
|---|---|

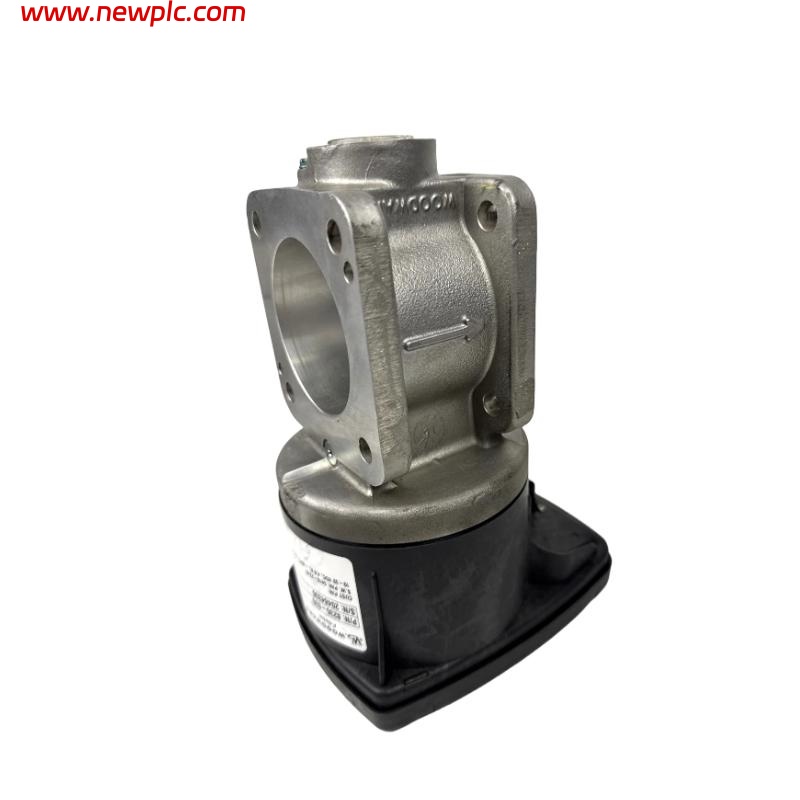

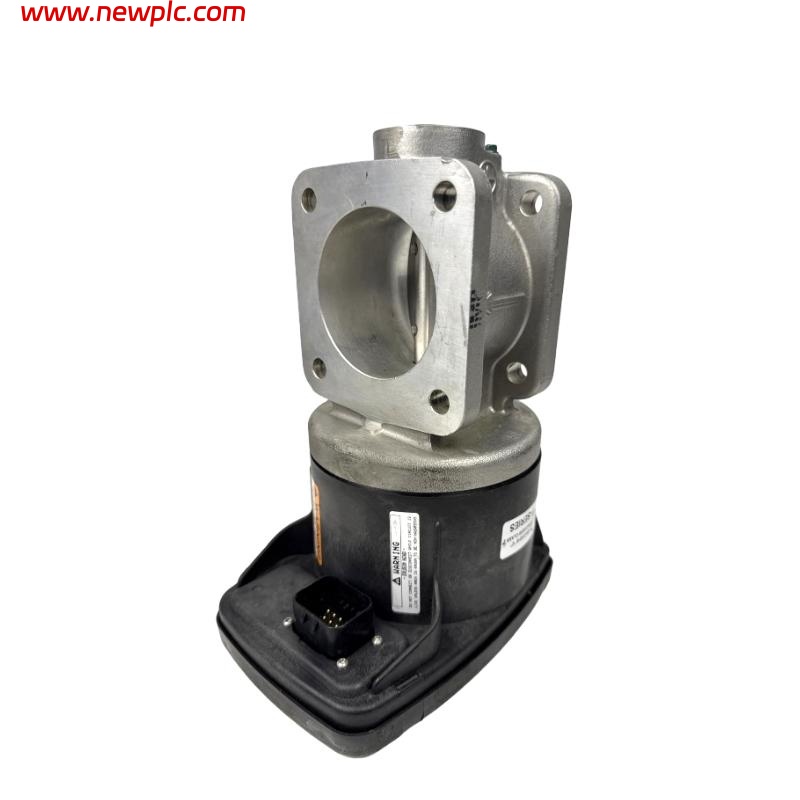

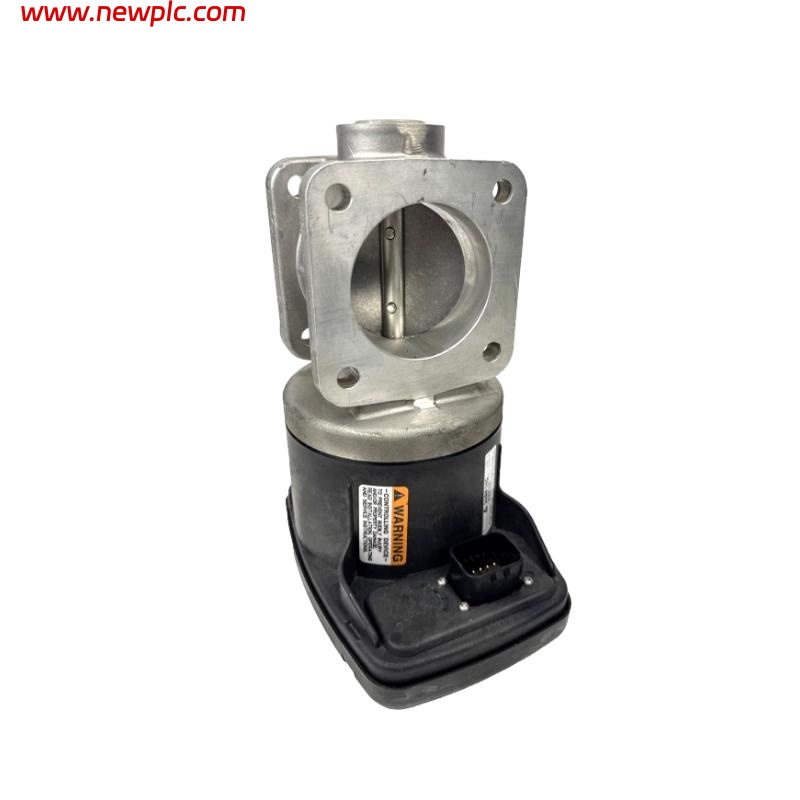

| Product Name | Integrated Throttle Body Actuator |
| Model Number | Woodward 8235-639 |
| Dimensions | 190 × 160 × 55 mm |
| Weight | 4.54 kg |
| Function | Provides precise air and fuel flow control for engine management |
| Operating Voltage | 24 V DC nominal |
| Control Type | Fully integrated electronic throttle actuator |
| Input Signal | PWM or analog control signal |
| Output Torque | Up to 6 Nm |
| Response Time | < 50 ms |
| Position Feedback | Integrated non-contact position sensor |
| Communication Interface | CAN bus or analog feedback |
| Operating Temperature | -40°C to +125°C |
| Storage Temperature | -55°C to +150°C |
| Protection Rating | IP67 (dust-tight and water-resistant) |
| Material | Aluminum alloy housing with corrosion-resistant coating |
| Mounting Type | Engine-mounted, flange type |
| Power Consumption | ≤ 8 W typical |
| Duty Cycle | Continuous, rated for industrial applications |
| Vibration Resistance | 12 g, 10–2000 Hz |
| EMC Compliance | ISO 7637-2 and IEC 61000-6-2 |
| Application Areas | Industrial engines, gas turbines, and power generation systems |
FAQ
FAQ
Q1: What is the primary function of the Woodward 8235-639 Integrated Throttle Body Actuator?
A1: The 8235-639 regulates air and fuel flow to the engine by electronically controlling the throttle plate position, optimizing performance and emissions.
Q2: What control signals does the actuator accept?
A2: It can be driven by either a PWM or analog control signal from the engine management system, offering flexible integration options.
Q3: How is position feedback provided in this actuator?
A3: The actuator uses an integrated non-contact position sensor that delivers precise and reliable throttle position feedback.
Q4: What communication protocols are supported?
A4: It supports CAN bus communication and optional analog feedback for easy integration with digital and analog control systems.
Q5: What makes the 8235-639 suitable for harsh environments?
A5: It features an IP67-rated aluminum housing that resists dust, water, and corrosion, ensuring long-term reliability in demanding conditions.
Q6: How fast does the actuator respond to control input?
A6: It offers a rapid response time of less than 50 milliseconds, ensuring smooth and accurate throttle control under varying load conditions.
Q7: What applications typically use this actuator?
A7: It is widely used in industrial engines, gas turbines, generator sets, and other power system applications requiring precise throttle control.
Q8: How does the actuator maintain performance under vibration or thermal stress?
A8: The 8235-639 is designed to withstand high vibration levels up to 12 g and extreme temperatures up to 125°C, maintaining stable performance in continuous operation.
