Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 8405-009 |
| Manufacturer | Woodward |

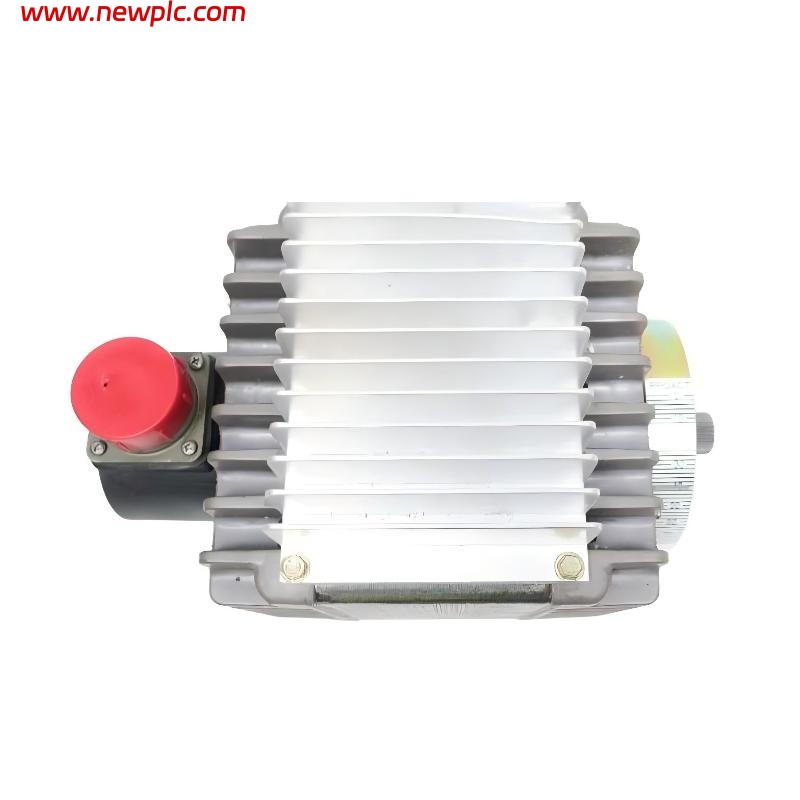

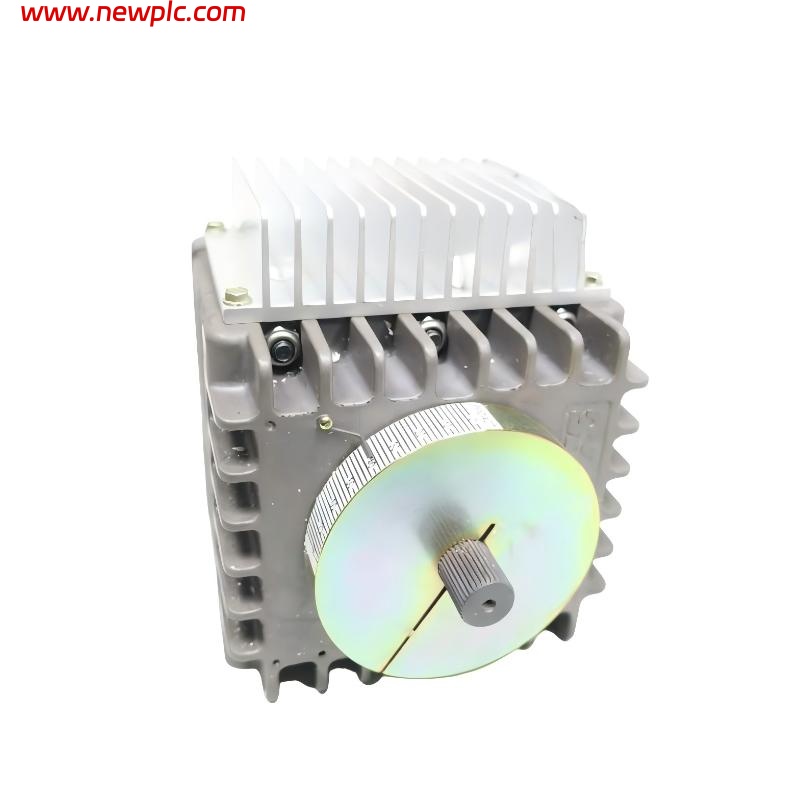

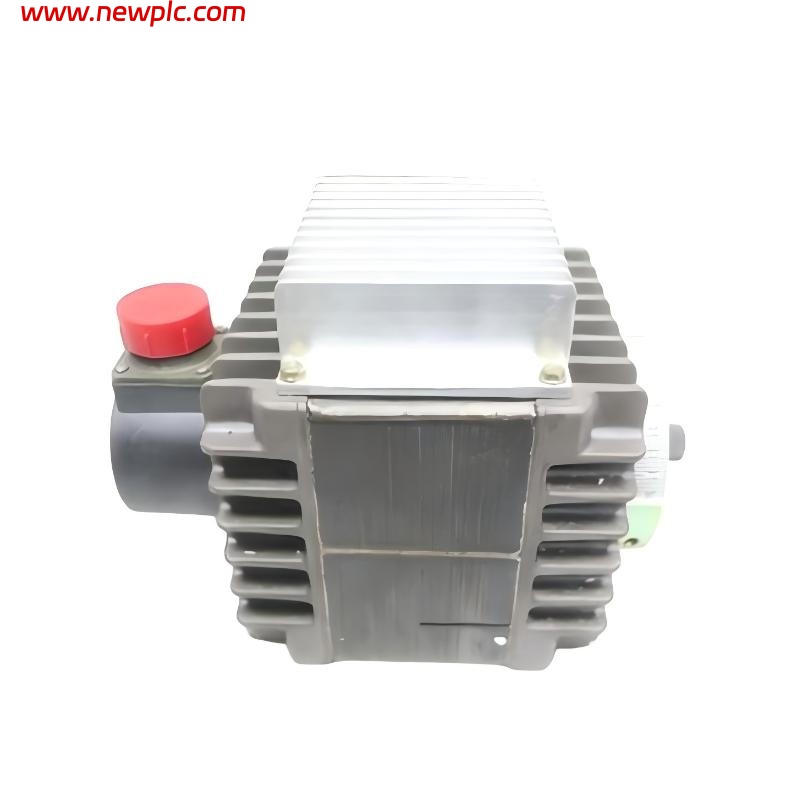

| Product Type | Electric Powered Actuator |
| Function | Provides precise mechanical control of fuel or throttle position based on electrical command input |
| Input Signal | 0–20 mA, 4–20 mA, or voltage input (depending on configuration) |
| Operating Voltage | 24 V DC nominal (18–32 V DC range) |
| Output Torque | Up to 9 N·m |
| Response Time | < 50 ms |
| Position Feedback | Integrated position sensor for closed-loop control |
| Control Mode | Proportional or PID-based (with compatible controllers) |
| Power Consumption | < 20 W |
| Duty Cycle | Continuous |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +100°C |
| Protection Class | IP65 (dust-tight and water-resistant) |
| Vibration Resistance | 5 g, 10–500 Hz |
| Shock Resistance | 20 g, 11 ms |
| Mounting Orientation | Flexible, all directions supported |
| Material | Aluminum alloy housing, corrosion resistant |
| Compliance | CE, UL, CSA certifications |
| Applications | Engine fuel control, turbine systems, generator governors, and industrial automation |
| Dimensions | 350 x 250 x 150 mm |
| Weight | 2.2 kg |
FAQ
FAQ
Q1: What is the function of the Woodward 8405-009 Electric Powered Actuator?
It converts electrical input signals into precise mechanical movement to control throttle or fuel valves in engine and turbine systems.
Q2: What type of control signals can the actuator accept?
It can receive current signals of 0–20 mA or 4–20 mA, as well as voltage-based input depending on configuration.
Q3: What is the nominal operating voltage of the actuator?
The actuator operates on a 24 V DC supply, with an acceptable range between 18 and 32 V DC.
Q4: How quickly does the actuator respond to control inputs?
It has a fast response time of less than 50 milliseconds, providing smooth and accurate control performance.
Q5: Does the actuator provide position feedback?
Yes, it includes an integrated position sensor that supports closed-loop feedback operation.
Q6: What protection features does the actuator have?
It is rated IP65 for protection against dust and water ingress and built to withstand shock and vibration in harsh environments.
Q7: Can the 8405-009 be mounted in any position?
Yes, it supports flexible installation and can be mounted in any orientation without performance degradation.
Q8: What are the common applications of this actuator?
It is widely used in engine fuel control systems, generator governors, turbine control units, and industrial automation processes.
