Technical Specifications
| Parameter | Specification |
|---|---|

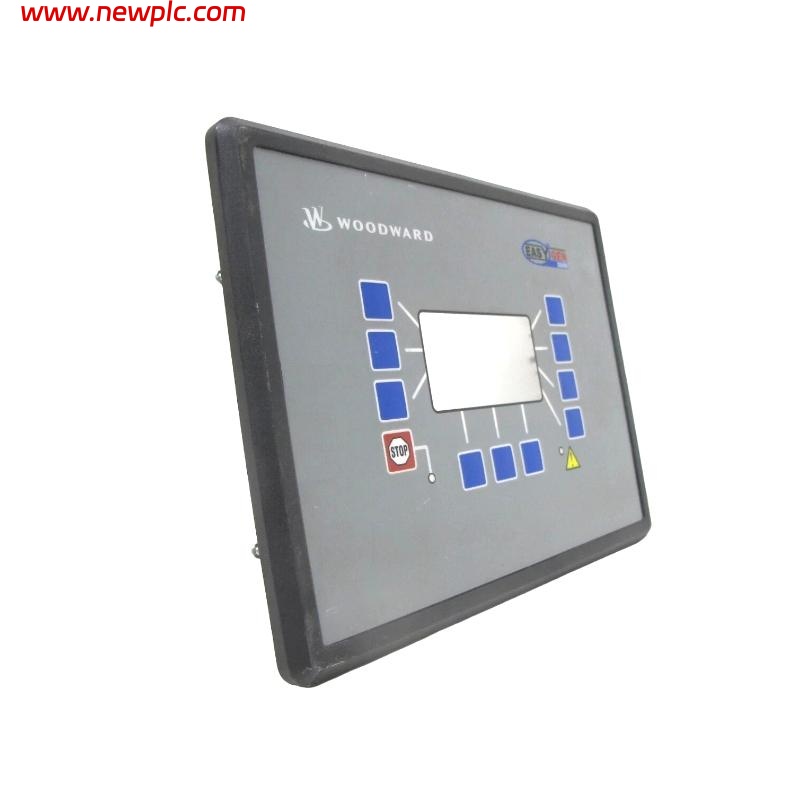

| Model | 8440-1809 |
| Manufacturer | Woodward |
| Product Type | Control Panel |
| Function | Provides monitoring, control, and interface for generator and engine systems |
| Display Type | LCD or LED display for operational data |
| Input Signals | Analog (4–20 mA, 0–10 V), digital, and discrete inputs |
| Output Signals | Digital, analog, and relay outputs |
| Control Interface | Push buttons, rotary switches, and touch interface depending on configuration |
| Communication Interfaces | Modbus, CAN, Ethernet, and proprietary protocols |
| Power Supply Voltage | 24 V DC nominal (18–32 V DC range) |
| Power Consumption | < 15 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP54 |
| Mounting Type | Panel mount with flexible orientation |
| Applications | Generator monitoring, engine control, industrial automation control |
| Dimensions | 280 x 200 x 70 mm |
| Weight | 0.703 kg |
FAQ
FAQ
Q1: What is the main function of the Woodward 8440-1809 Control Panel?
It provides a user interface for monitoring and controlling generator and engine systems.
Q2: What types of input signals does the control panel support?
It accepts analog signals (4–20 mA, 0–10 V), digital inputs, and discrete signals from connected devices.
Q3: What outputs are available from this control panel?
It provides digital, analog, and relay outputs for controlling actuators, alarms, and other devices.
Q4: What types of displays are used on the 8440-1809?
The panel uses either LCD or LED displays to show operational data, alarms, and status indicators.
Q5: Which communication interfaces are included?
It supports Modbus, CAN, Ethernet, and proprietary protocols for integration with control systems.
Q6: What control interfaces are provided for user interaction?
Users can interact with the panel via push buttons, rotary switches, or touch interfaces depending on configuration.
Q7: What is the operating temperature range?
The panel operates reliably between -20°C and +60°C in industrial environments.
Q8: What are the typical applications of the 8440-1809?
It is used for generator monitoring, engine control, and industrial automation systems requiring an operator interface.
