Technical Specifications
| Parameter | Specification |
|---|---|

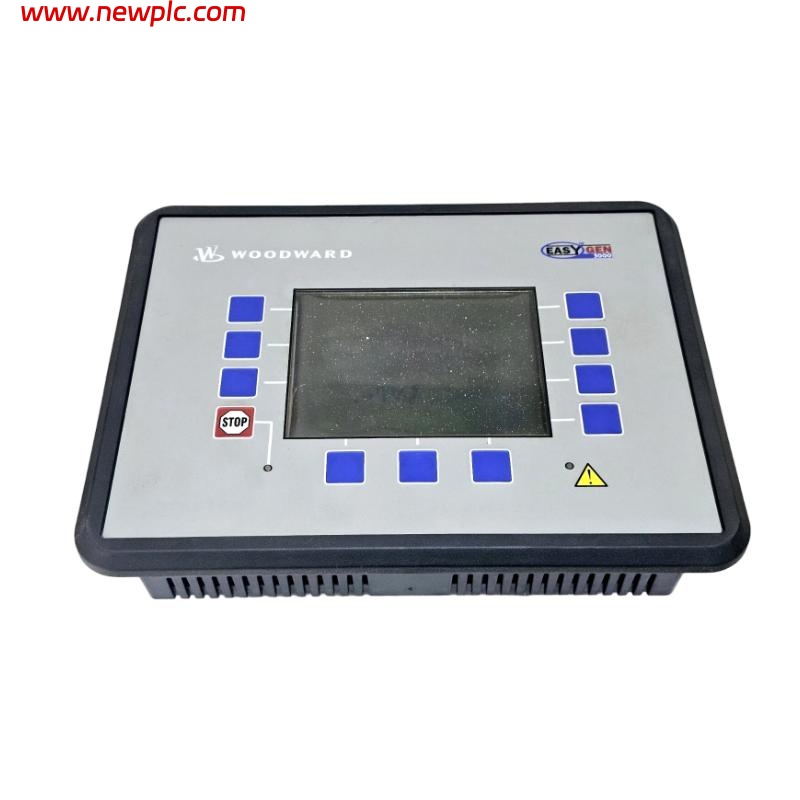

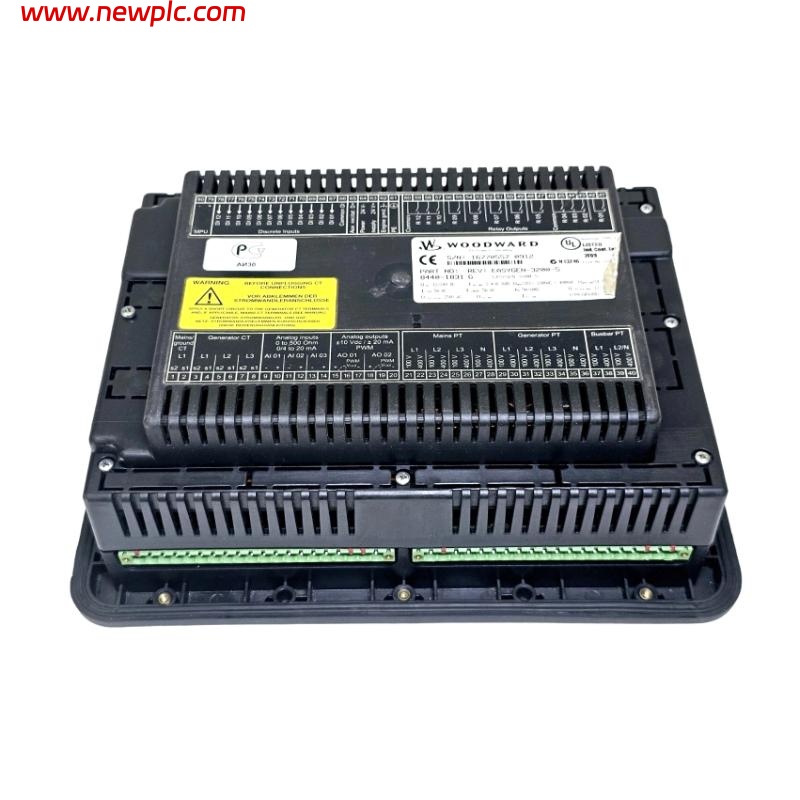

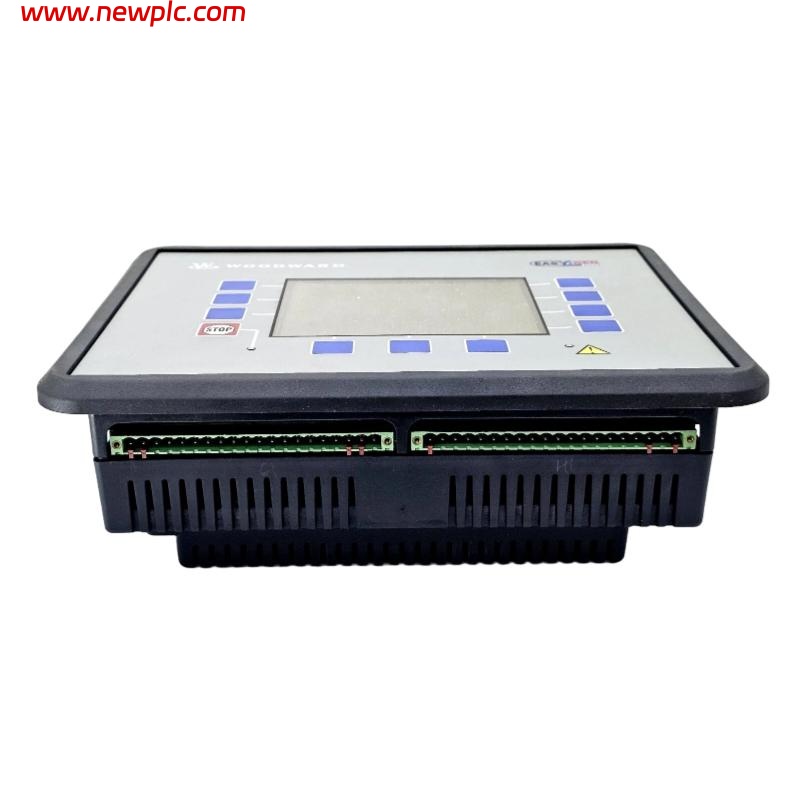

| Model | 8440-1831 |
| Manufacturer | Woodward |
| Product Type | Operator Interface Panel |
| Function | Provides user interface for monitoring, control, and interaction with engine and generator systems |
| Display Type | High-contrast LCD display |
| Input Signals | Analog (4–20 mA, 0–10 V), digital, and discrete inputs |
| Output Signals | Digital, analog, and relay outputs |
| Control Interface | Push buttons and touch interface |
| Communication Interfaces | Modbus, CAN, Ethernet, and proprietary protocols |
| Power Supply Voltage | 24 V DC nominal (18–32 V DC range) |
| Power Consumption | < 20 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP54 |
| Mounting Type | Panel mount with flexible orientation |
| Applications | Engine and generator monitoring, operator interface in industrial automation |
| Dimensions | 280 x 130 x 60 mm |
| Weight | 0.953 kg |
FAQ
FAQ
Q1: What is the main function of the Woodward 8440-1831 Operator Interface Panel?
It provides a user interface for monitoring and controlling engines and generator systems.
Q2: What types of input signals does the interface panel support?
It supports analog inputs (4–20 mA, 0–10 V), digital signals, and discrete inputs from connected devices.
Q3: What outputs are available from this panel?
It provides digital, analog, and relay outputs for controlling actuators, alarms, and system devices.
Q4: What type of display is used on the 8440-1831?
The panel uses a high-contrast LCD display to show operational data, status indicators, and alarms.
Q5: Which communication interfaces are supported?
It includes Modbus, CAN, Ethernet, and proprietary protocols for system integration.
Q6: What control interfaces are available for user operation?
Users can interact through push buttons and a touch interface for system commands and configuration.
Q7: What is the operating temperature range?
The panel operates effectively between -20°C and +60°C in industrial environments.
Q8: What are typical applications of the 8440-1831?
It is used for engine and generator monitoring, operator interaction, and industrial automation control systems.
