Technical Specifications
| Parameter | Description |
|---|---|

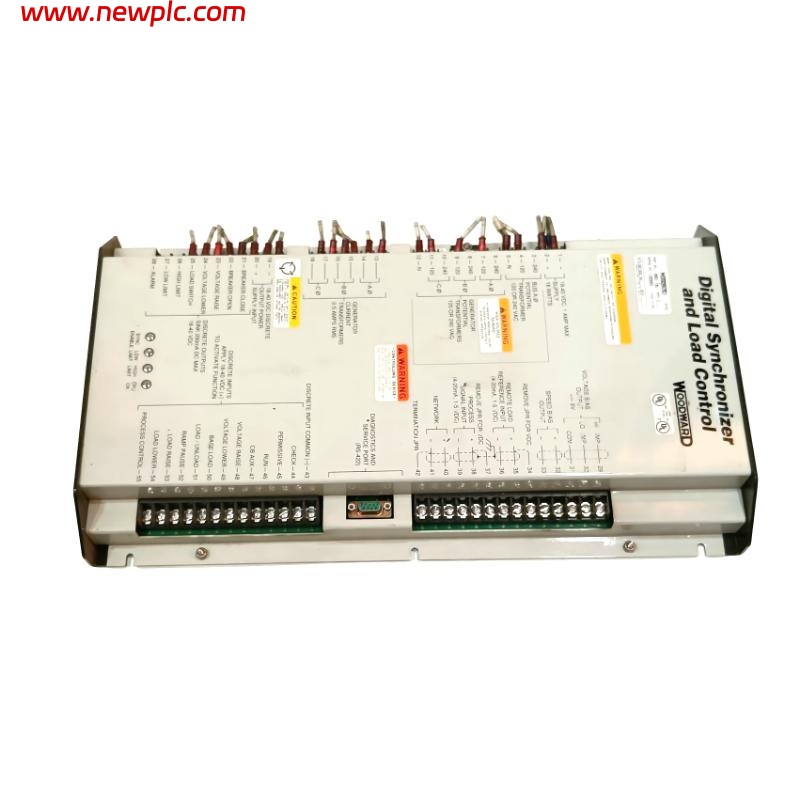

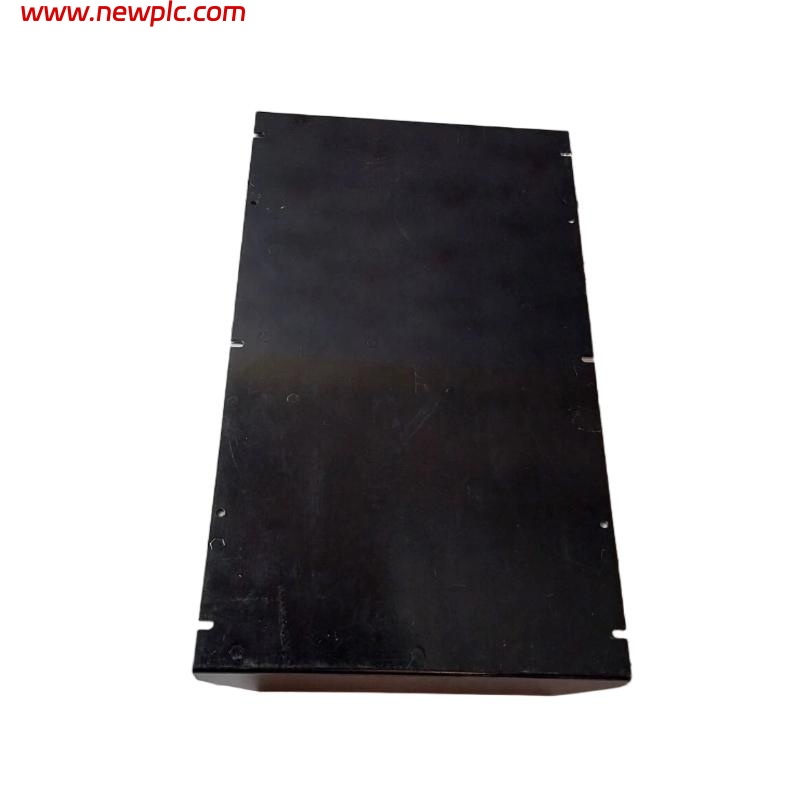

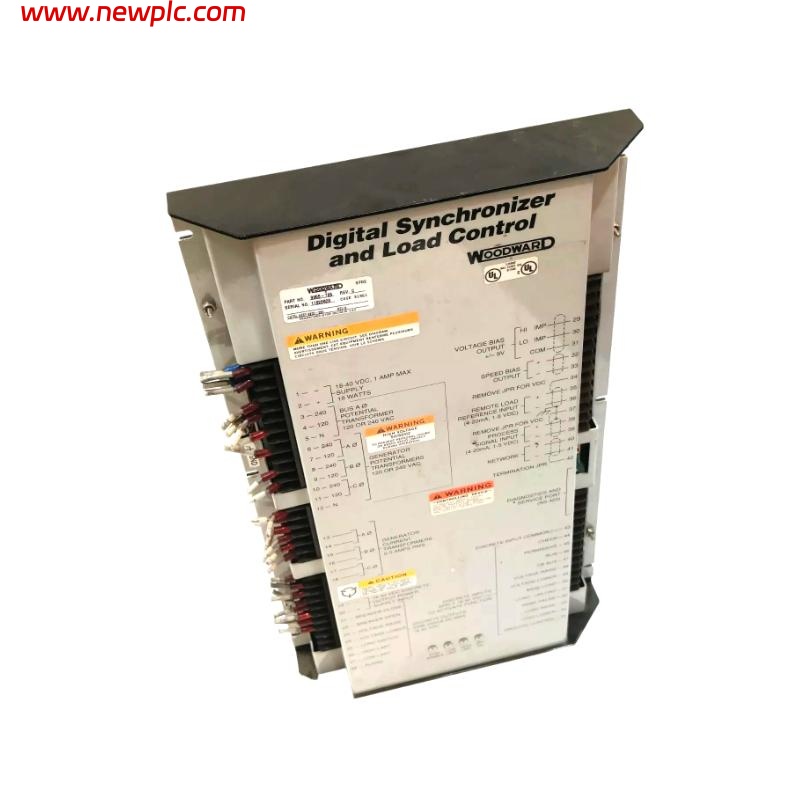

| Product Name | Digital Synchronizer and Load Controller |
| Model Number | 9905-795 |
| Brand | Woodward |
| Product Type | Generator Synchronizer and Load Control Module |
| Function | Provides automatic synchronization, load sharing, and power management for generator systems |
| Input Voltage | 18–32 VDC nominal |
| Power Consumption | 25 W typical |
| Frequency Range | 45–65 Hz |
| Voltage Sensing Range | 90–480 VAC, 3-phase |
| Synchronizing Accuracy | ±0.05 Hz frequency, ±2° phase angle |
| Load Control Type | Isochronous or droop load sharing |
| Control Output | Analog and discrete output signals for speed and voltage regulation |
| Communication Interface | RS-232 and CANopen (optional) |
| Display | Multi-function LED indicators for status and fault monitoring |
| Protection Features | Overvoltage, reverse polarity, phase loss, and thermal protection |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +105°C |
| Humidity | Up to 95% non-condensing |
| Vibration Resistance | 5 g, 10–500 Hz |
| Shock Resistance | 20 g, 11 ms |
| Mounting Type | Panel mount |
| Enclosure Rating | IP65 (front panel sealed) |
| Dimensions | 311 × 173 × 65 mm |
| Weight | 1.36 kg |
FAQ
FAQ
Q1: What is the main purpose of the Woodward 9905-795 Digital Synchronizer and Load Controller?
A1: It is designed to automatically synchronize multiple generators to a common bus and manage load sharing to ensure stable and efficient power generation.
Q2: How does the synchronizer detect synchronization conditions?
A2: The unit continuously monitors voltage, frequency, and phase angle between the generator and the bus to initiate synchronization when parameters match within specified limits.
Q3: What types of generators can this controller be used with?
A3: It supports both diesel and gas engine-driven generators and can be integrated with Woodward or third-party speed and voltage control systems.
Q4: How is load sharing managed between multiple generators?
A4: The controller uses analog and digital communication to distribute load proportionally across all connected generators, maintaining system balance and preventing overloads.
Q5: What communication protocols does the 9905-795 support?
A5: It supports RS-232 for configuration and monitoring, with optional CANopen for networked generator control applications.
Q6: Can the unit provide protection during synchronization errors?
A6: Yes, it automatically prevents breaker closure if frequency, voltage, or phase angle are outside safe limits, protecting the generator and grid equipment.
Q7: Is it possible to adjust synchronization and load-sharing parameters?
A7: Yes, all control parameters including frequency, voltage thresholds, and load bias can be configured through software or front-panel interface.
Q8: In what applications is the 9905-795 typically used?
A8: It is commonly used in power plants, marine systems, and industrial facilities requiring precise generator synchronization, load management, and automatic paralleling control.
