Technical Specifications
| Parameter | Description |
|---|---|

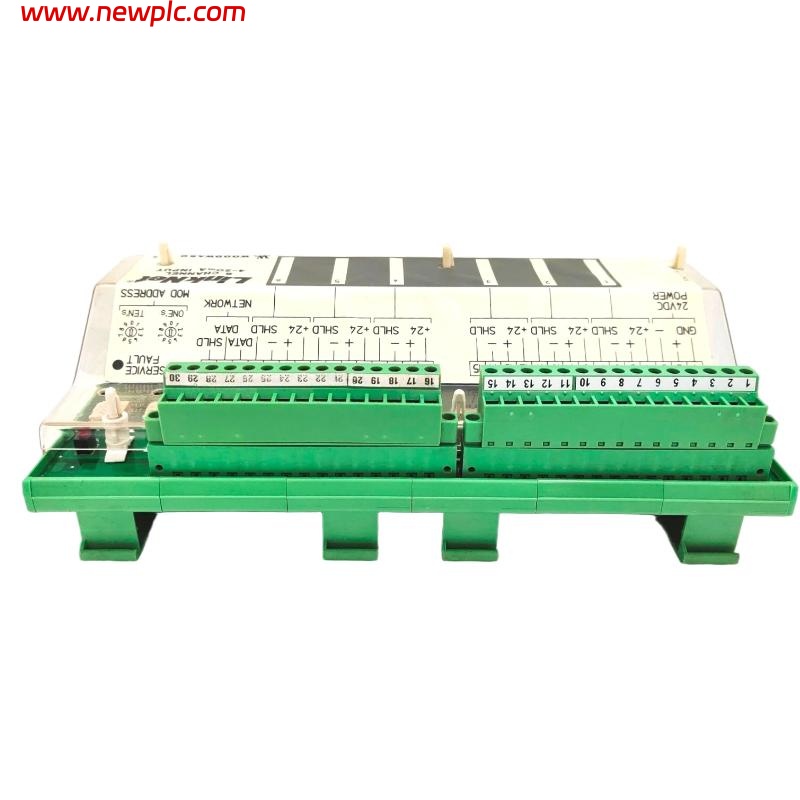

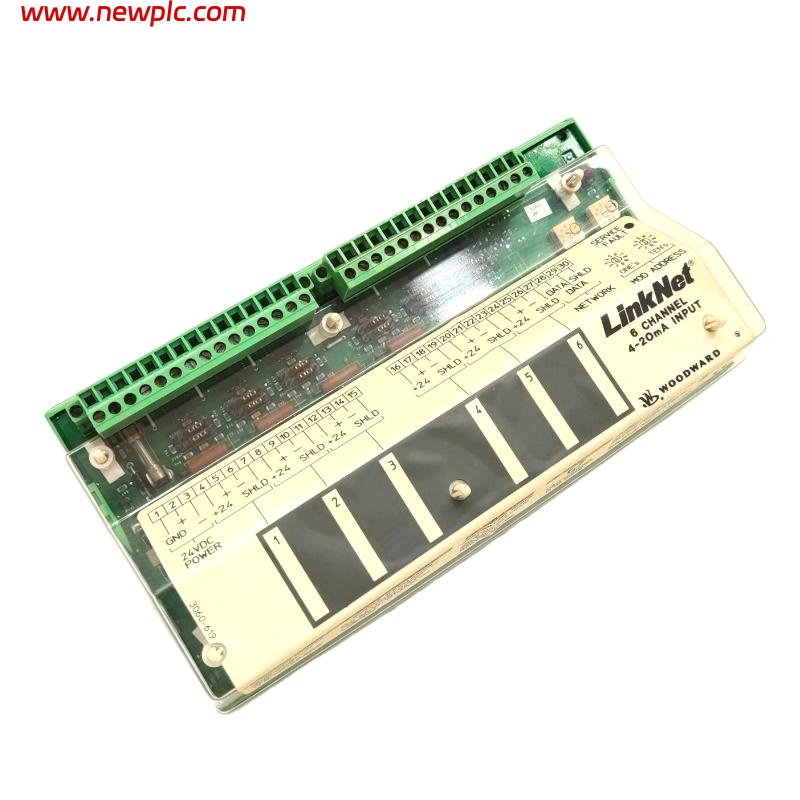

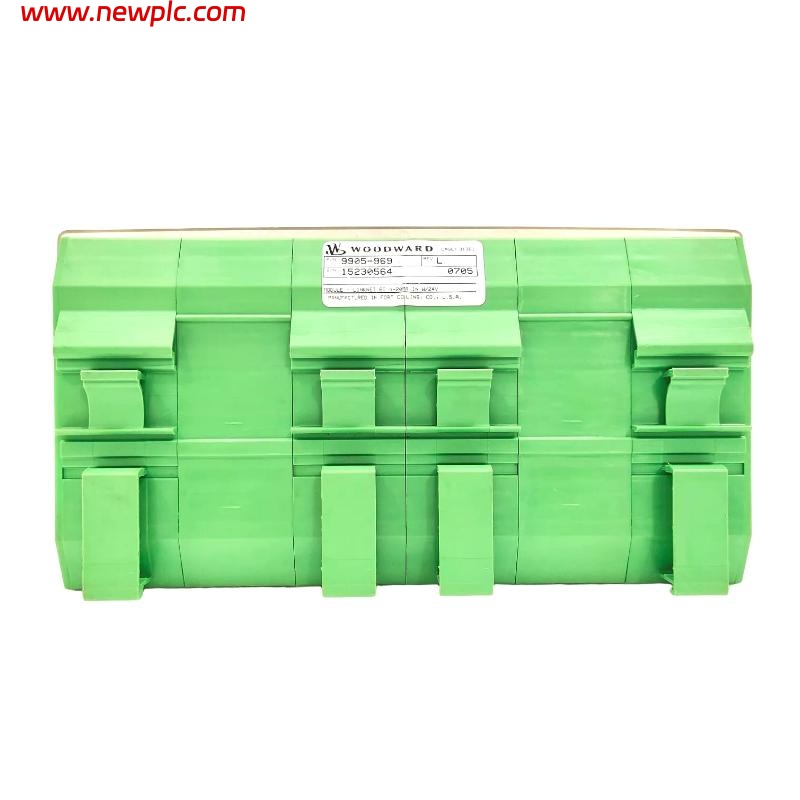

| Product Name | Linknet 6 Channel Analog Input Module |
| Model Number | 9905-969 |
| Brand | Woodward |
| Product Type | Analog Input Module |
| Function | Provides six isolated analog input channels for data acquisition and process monitoring |
| Number of Channels | 6 independent, isolated analog input channels |
| Input Signal Range | 0–10 VDC, ±10 VDC, 0–20 mA, or 4–20 mA (configurable per channel) |
| Input Resolution | 16-bit A/D converter |
| Sampling Rate | 1 kHz per channel (typical) |
| Accuracy | ±0.1% of full scale |
| Isolation | 500 VDC channel-to-channel and channel-to-bus isolation |
| Input Impedance | 250 Ω (current), 100 kΩ (voltage) |
| Communication Interface | Linknet RS-485 / CANopen protocol |
| Power Supply | 18–32 VDC |
| Power Consumption | 12 W typical |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +105°C |
| Humidity | 5% to 95% non-condensing |
| Diagnostic Features | Open circuit detection, input over-range and under-range detection |
| LED Indicators | Power, communication status, channel fault |
| Configuration | Software configurable via Linknet setup utility |
| Mounting Type | DIN rail or panel mount |
| Enclosure Rating | IP20 |
| Dimensions | 355.6 x 279.4 x 101.6 mm |
| Weight | 4.13 kg |
FAQ
FAQ
Q1: What is the main function of the Woodward 9905-969 module?
A1: The 9905-969 module provides six isolated analog input channels designed for accurate acquisition of process variables such as temperature, pressure, and flow signals in control systems.
Q2: What types of input signals can the 9905-969 accept?
A2: It can handle both voltage (0–10 VDC, ±10 VDC) and current (0–20 mA, 4–20 mA) signals, making it suitable for a wide range of analog sensors and transmitters.
Q3: How does the isolation feature benefit the system?
A3: Each channel is electrically isolated from the others and from the communication bus, protecting the system from ground loops and electrical interference.
Q4: Can this module be used in harsh industrial environments?
A4: Yes, it is designed to operate in temperatures from -40°C to +70°C and is built with robust insulation and diagnostic capabilities to ensure reliability in demanding conditions.
Q5: How are communication and data exchange handled?
A5: The module communicates via the Linknet RS-485 or CANopen network, ensuring fast and reliable data transmission to the control processor or PLC.
Q6: How is configuration performed for the 9905-969?
A6: Configuration is done through Woodward’s Linknet setup utility, allowing users to define input ranges, scaling, and diagnostic parameters through software.
Q7: What diagnostic functions are included in this module?
A7: The 9905-969 provides open circuit detection, over-range and under-range indication, and LED fault reporting for each channel.
Q8: In what applications is the Woodward 9905-969 commonly used?
A8: It is typically used in turbine control systems, power generation monitoring, industrial automation, and other process control systems requiring high-accuracy analog input acquisition.
