Technical Specifications
| Parameter | Specification |
|---|---|

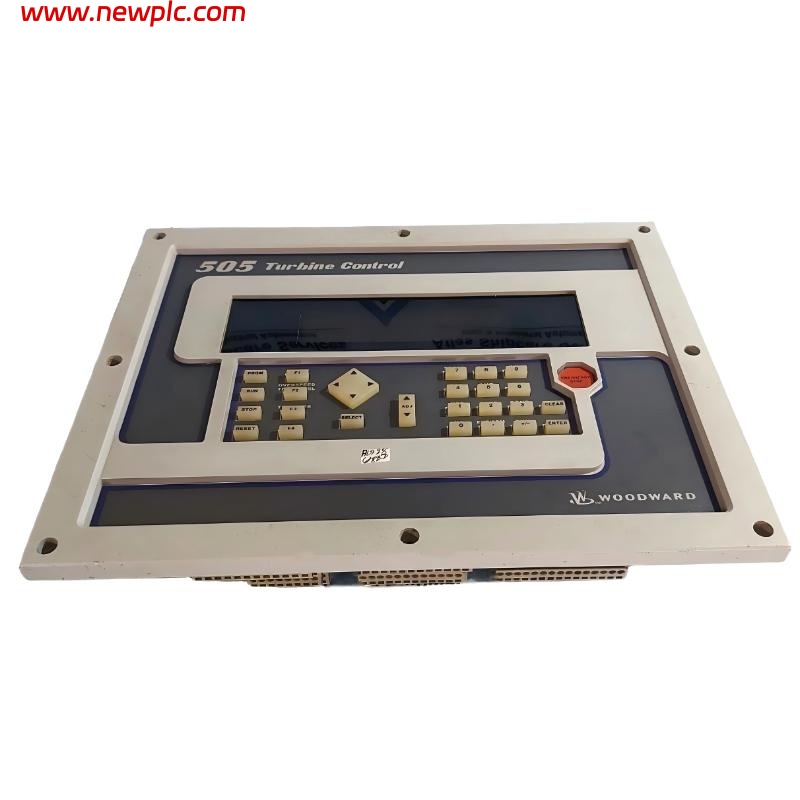

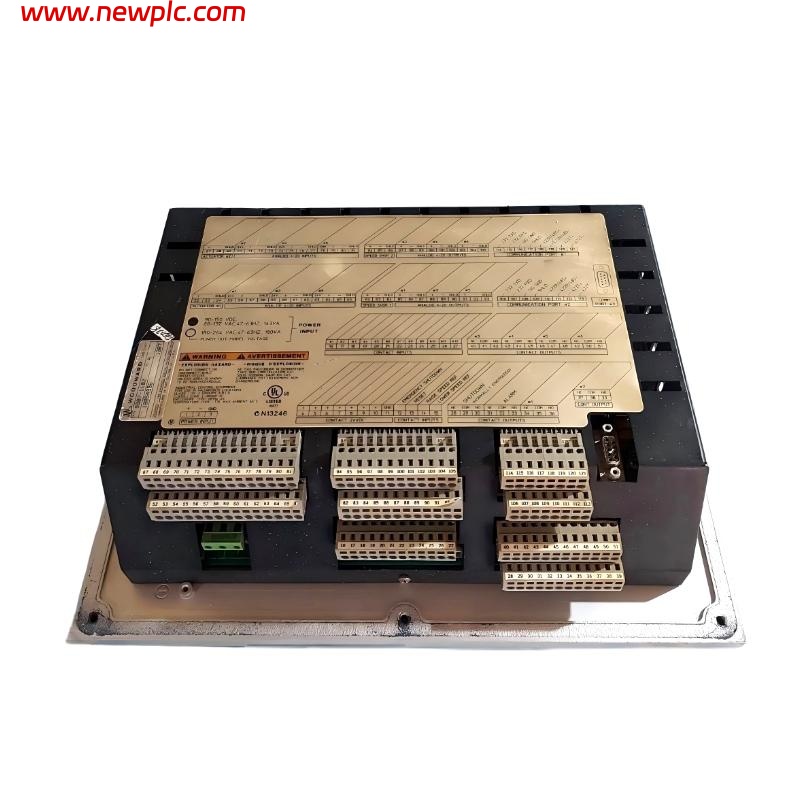

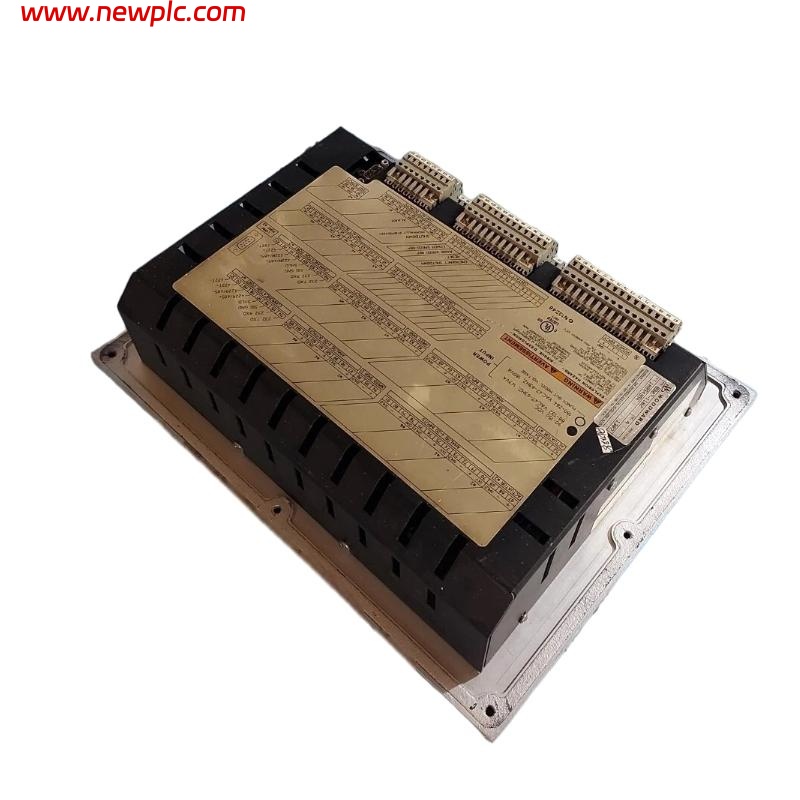

| Model | Woodward 9907-1182 |
| Function | Digital Governor Controller |
| Control Type | Electronic speed and load control |
| Power Supply Voltage | 18 to 32 VDC |
| Power Consumption | 20 W typical |
| Speed Input Signal | Magnetic pickup or MPU (1–30 V RMS) |
| Speed Range | 100 to 25,000 Hz |
| Output Signal | PWM output to actuator |
| Communication Interface | RS-232 / RS-485 |
| Control Accuracy | ±0.25% of rated speed |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Humidity Resistance | Up to 95% non-condensing |
| Vibration Resistance | 5–500 Hz, 1.5 mm / 2 g |
| Dimensions (HxWxD) | 242 × 185 × 62 mm |
| Weight | 3.63 kg |
| Mounting Type | Panel Mount |
FAQ
FAQ
Q1: What is the main purpose of the Woodward 9907-1182 controller?
A1: The Woodward 9907-1182 functions as a digital governor controller, managing engine or turbine speed with high precision and stability.
Q2: What type of input signal does the controller accept?
A2: It accepts magnetic pickup (MPU) signals ranging from 1 to 30 V RMS for speed sensing.
Q3: What is the output interface of the 9907-1182?
A3: The controller provides a pulse-width modulated (PWM) output signal for controlling the actuator.
Q4: Does the 9907-1182 support communication with external systems?
A4: Yes, it includes RS-232 and RS-485 interfaces for digital communication and monitoring.
Q5: How accurate is the speed control of this module?
A5: The controller maintains speed control accuracy within ±0.25% of the rated speed under steady-state conditions.
Q6: What are the environmental conditions for reliable operation?
A6: It operates in temperatures from -40°C to +70°C and tolerates up to 95% non-condensing humidity.
Q7: What kind of engines or turbines can this controller be used with?
A7: It is suitable for diesel, gas, and dual-fuel engines, as well as small turbine applications.
Q8: How is the 9907-1182 installed within a control system?
A8: The module is designed for panel mounting, ensuring easy integration into control cabinets or enclosures.
