Technical Specifications
| Parameter | Specification |
|---|---|

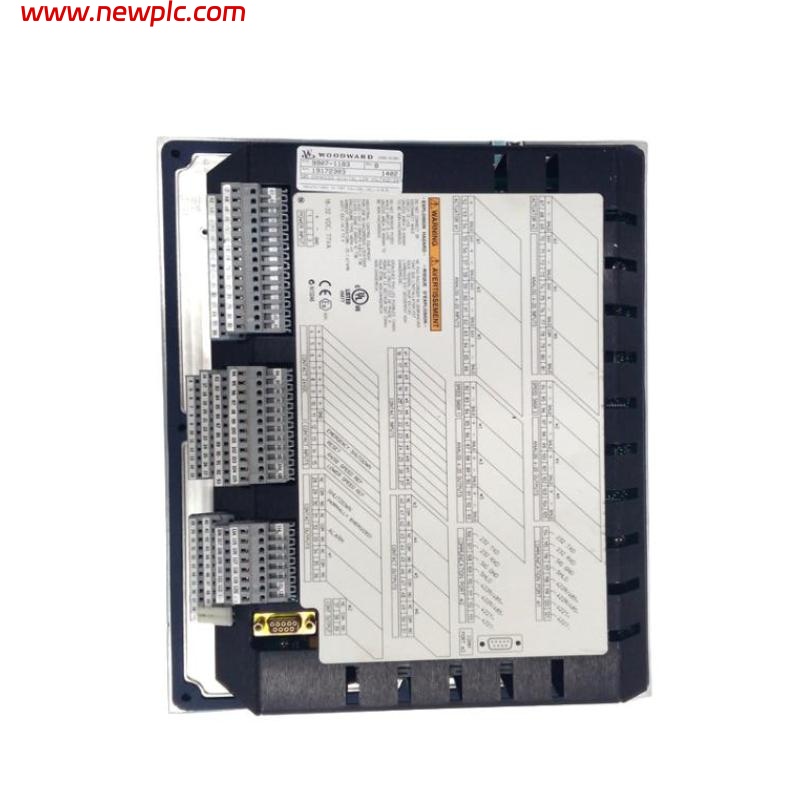

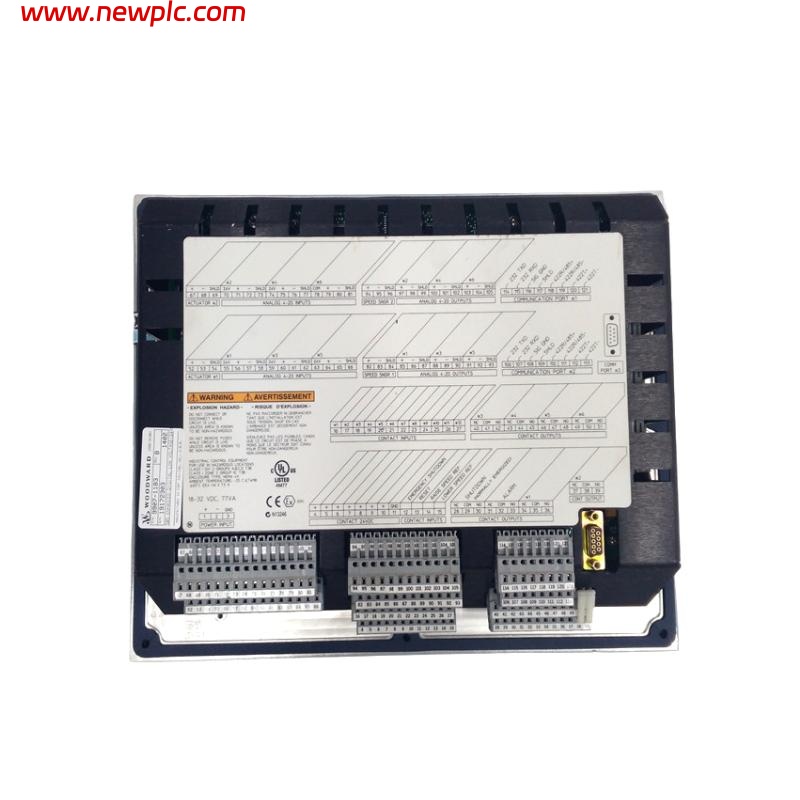

| Model | Woodward 9907-1183 |
| Function | Digital Governor |
| Control Type | Electronic Speed and Load Control |
| Power Supply Voltage | 18 to 32 VDC |
| Power Consumption | 15 W typical |
| Speed Input Signal | Magnetic Pickup (MPU) or 4–20 mA |
| Speed Range | 100 to 25,000 Hz |
| Output Signal | PWM or analog output to actuator |
| Communication Interface | RS-232 / RS-485 |
| Control Accuracy | ±0.25% of rated speed |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Humidity Resistance | Up to 95% non-condensing |
| Vibration Resistance | 5–500 Hz, 1.5 mm / 2 g |
| Dimensions (HxWxD) | 242 × 185 × 62 mm |
| Weight | 1.8 kg |
| Mounting Type | Panel Mount |
FAQ
FAQ
Q1: What is the main function of the Woodward 9907-1183?
A1: The 9907-1183 serves as a digital governor, providing precise speed and load control for engines and turbines.
Q2: What type of input signals does it accept?
A2: It accepts magnetic pickup (MPU) signals or 4–20 mA input for speed measurement.
Q3: What is the output provided by this governor?
A3: The module provides either a PWM or analog output to control the actuator.
Q4: Does the 9907-1183 support digital communication?
A4: Yes, it includes RS-232 and RS-485 interfaces for configuration, monitoring, and integration with control systems.
Q5: How accurate is the speed control?
A5: The governor maintains speed accuracy within ±0.25% of the rated speed.
Q6: What are the environmental operating limits?
A6: It operates reliably in temperatures from -40°C to +70°C and can handle up to 95% non-condensing humidity.
Q7: What types of engines is this governor suitable for?
A7: It is suitable for diesel, gas, dual-fuel engines, and small turbines.
Q8: How is the 9907-1183 installed?
A8: The module is designed for panel mounting, allowing integration into control cabinets or engine enclosures.
