Technical Specifications
| Parameter | Specification |
|---|---|

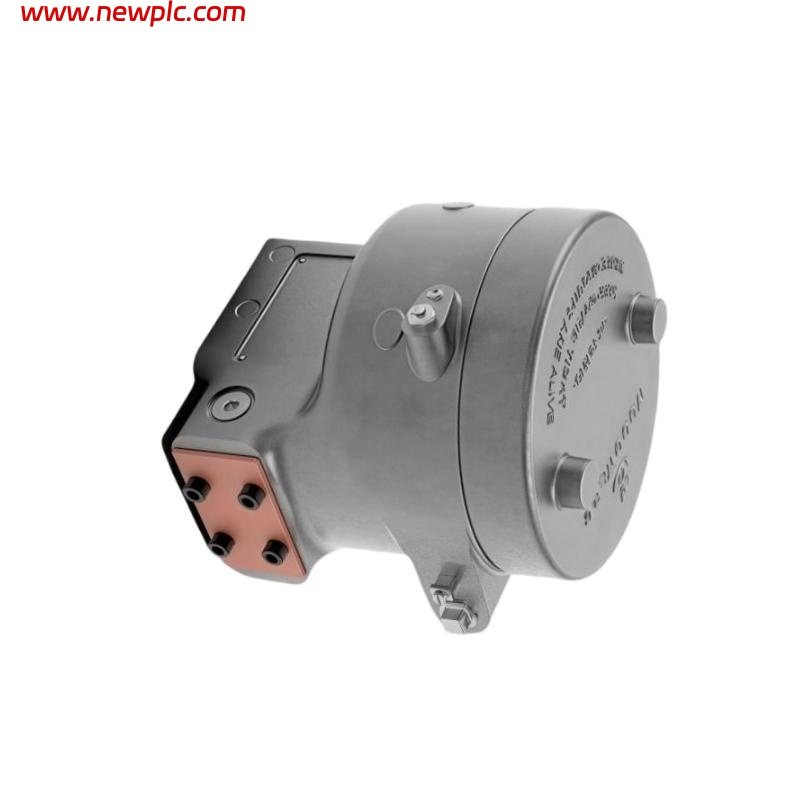

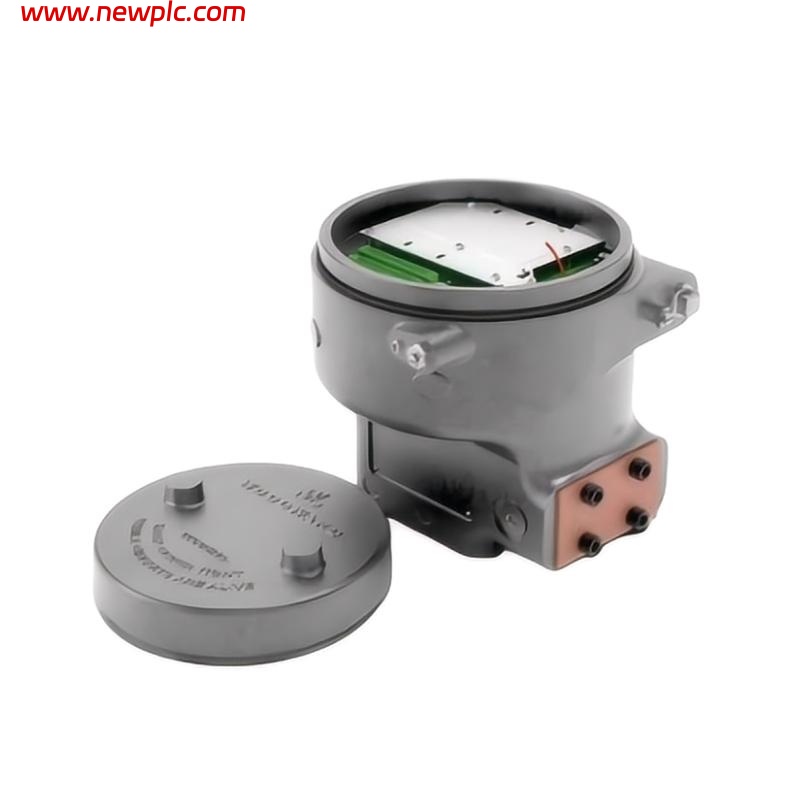

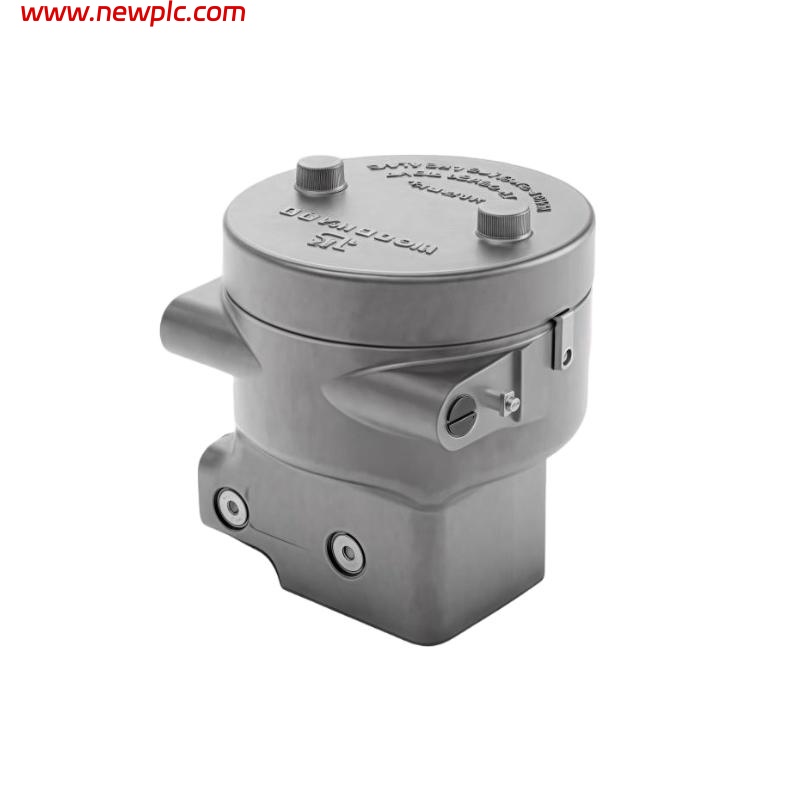

| Model | Woodward 9907-1200 |
| Function | CPC-II Current to Pressure Converter |
| Input Signal | 4–20 mA DC |
| Output Pressure Range | 3–15 psi, 0.2–1.0 bar (configurable) |
| Supply Voltage | 18 to 32 VDC |
| Accuracy | ±0.5% of full scale |
| Response Time | < 50 ms |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Power Consumption | 12 W typical |
| Housing Material | Aluminum / Corrosion-resistant coating |
| Dimensions (HxWxD) | 358 x 282 x 95 mm |
| Weight | 4.45 kg |
| Mounting Type | Panel or Wall Mount |
FAQ
FAQ
Q1: What is the primary function of the Woodward 9907-1200?
A1: The 9907-1200 converts a standard 4–20 mA electrical signal into a proportional pneumatic pressure output for actuator control.
Q2: What input signal does the CPC-II accept?
A2: It accepts a 4–20 mA DC input signal.
Q3: What is the range of the output pressure?
A3: The output pressure can be configured between 3–15 psi or 0.2–1.0 bar, depending on system requirements.
Q4: What is the accuracy of this converter?
A4: The converter provides an accuracy of ±0.5% of the full-scale output.
Q5: What is the response time of the 9907-1200?
A5: The device responds in less than 50 milliseconds to changes in the input signal.
Q6: What is the operating temperature range?
A6: It operates reliably in temperatures from -40°C to +70°C.
Q7: How is the CPC-II mounted?
A7: It can be mounted on a panel or wall using standard mounting brackets.
Q8: What type of supply voltage does the 9907-1200 require?
A8: The converter requires a DC supply voltage between 18 and 32 VDC.
