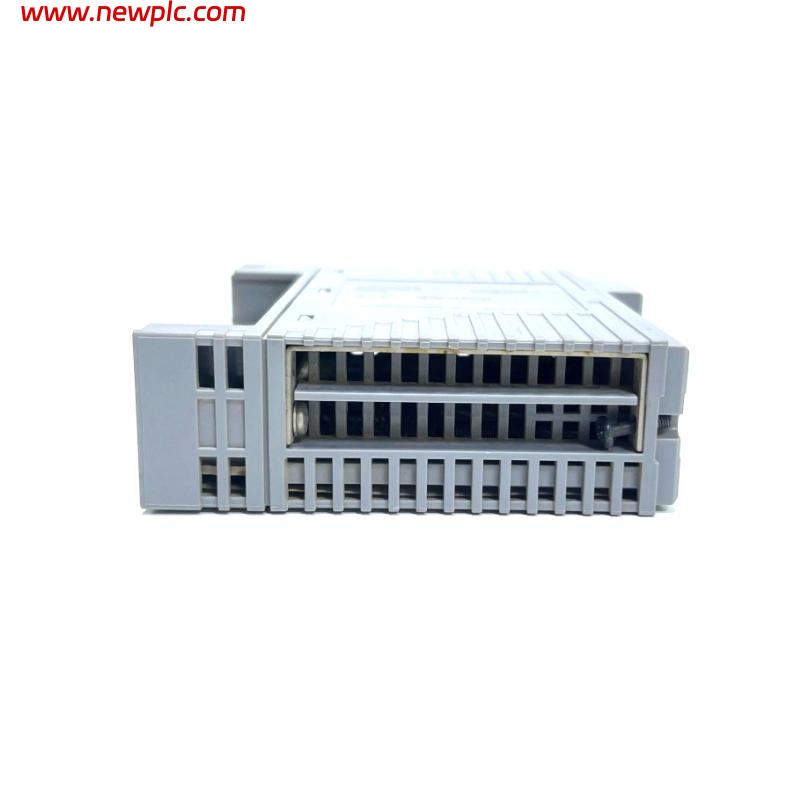

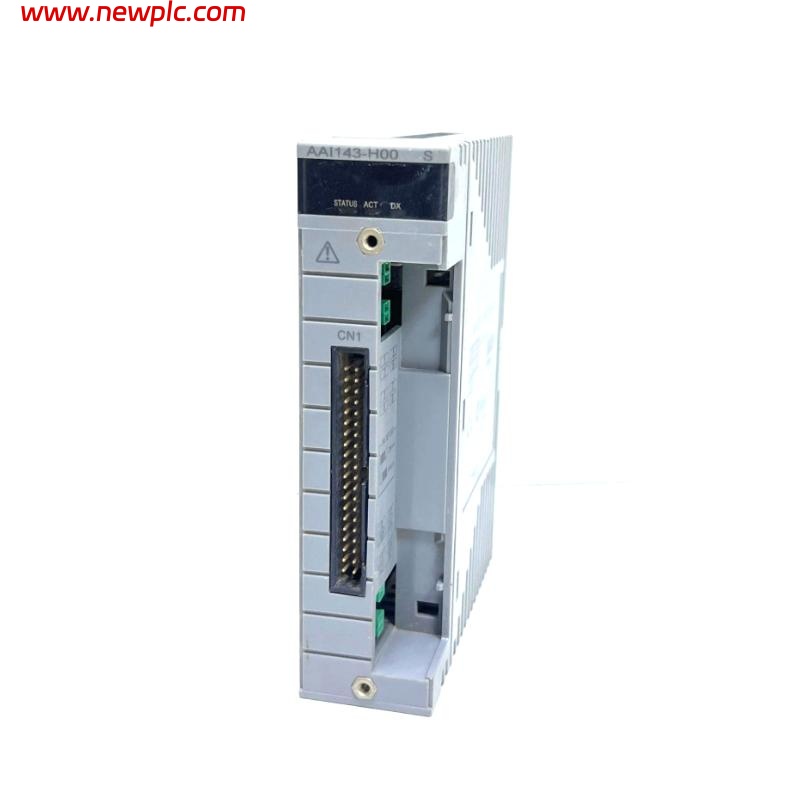

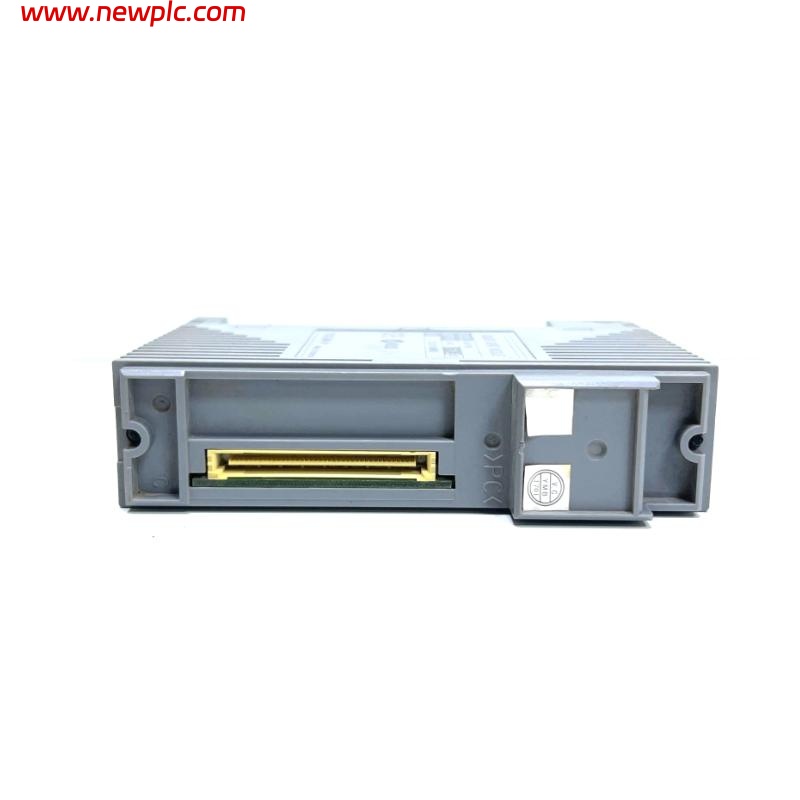

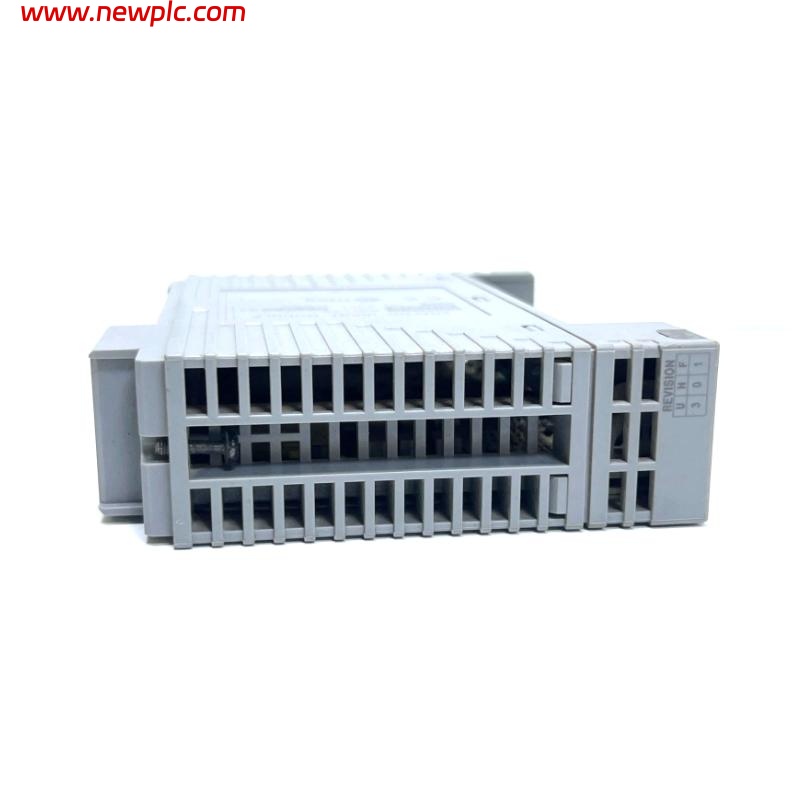

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-H00 S2 |
| Input Channels | 16 channels, isolated |
| Input Signal Range | 4 to 20 mA |
| Allowable Input Current | 24 mA |
| Input Resistance (Power ON) | 270 Ω (at 20 mA) to 350 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or larger |
| Withstanding Voltage | 1500 V AC between input and system (1 min) |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 19.0 V or higher (at 20 mA), max 25.5 V |
| Output Current Limit | 25 mA |
| 2-wire/4-wire Setting | Pin setting per channel |
| Temperature Drift | ±16 µA/10°C |
| Max Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| HART Communication | Supported |
| External Connection | Pressure clamp terminal, MIL connector, KS1 cable |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What type of input signals does the AAI143-H00 S2 support?
A1: It supports 4 to 20 mA DC current input signals.
Q2: Is this module isolated?
A2: Yes, all 16 input channels are isolated for enhanced safety and reliability.
Q3: Does the module support HART communication?
A3: Yes, it supports HART protocol via built-in HART modem.
Q4: What is the power consumption of the module?
A4: It consumes up to 230 mA at 5 V DC and 540 mA at 24 V DC.
Q5: What voltage does the module supply to transmitters?
A5: It provides at least 19.0 V at 20 mA, up to 25.5 V, with a current limit of 25 mA.
Q6: Can each channel be configured for 2-wire or 4-wire transmitters?
A6: Yes, each channel can be configured individually using pin settings.
Q7: What are the physical dimensions and weight of the module?
A7: Dimensions are 107.5 × 32.8 × 130 mm and it weighs 0.3 kg.
Q8: Is the module suitable for redundant configurations?
A8: Yes, it supports dual-redundant configuration for critical applications.
