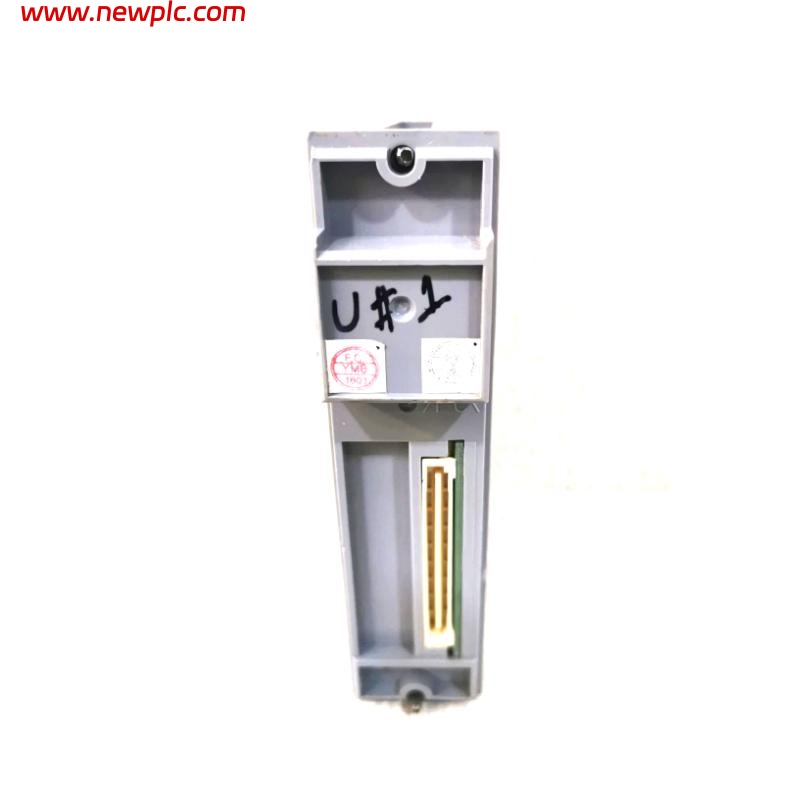

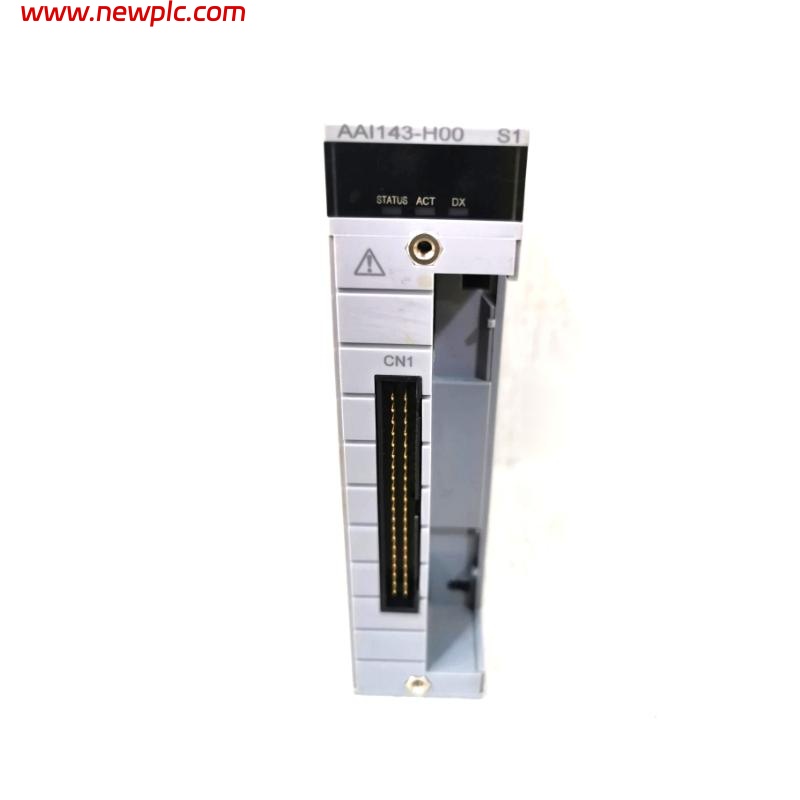

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-H00/A4S00 |
| Type | Analog Input Module (Current Input, Isolated) |
| Number of Input Channels | 16 channels |
| Input Signal | 4 to 20 mA DC |
| Allowable Input Current | 24 mA |
| Withstanding Voltage | 1500 V AC between input and system (for 1 minute) |
| Input Resistance (Power ON) | 270 Ω (at 20 mA) to 350 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or larger |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 19.0 V or higher (at 20 mA), 25.5 V or less (at 0 mA), max current 25 mA |
| 2-wire/4-wire Transmitter Setting | By setting pin for each channel |
| Ambient Temperature Drift | ±16 µA/10°C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Communication | Pressure clamp terminal, MIL connector cable, KS1 cable |
| HART Communication | Available |
| Dimensions (W × D × H) | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What type of input signals does the AAI143-H00/A4S00 support?
A1: It supports standard 4 to 20 mA DC current input signals.
Q2: Is the module isolated?
A2: Yes, the AAI143 provides full isolation between the input channels and the system.
Q3: Can each channel be configured for 2-wire or 4-wire transmitters?
A3: Yes, configuration is possible per channel using setting pins.
Q4: What is the accuracy of the AAI143 module?
A4: It offers an accuracy of ±16 microamperes.
Q5: Does the module support HART communication?
A5: Yes, HART is supported when connected to a compatible ER bus node unit.
Q6: What is the power consumption of this module?
A6: Maximum current consumption is 230 mA (5 V DC) and 540 mA (24 V DC).
Q7: What are the dimensions and weight of the module?
A7: The dimensions are 107.5 × 32.8 × 130 mm, and it weighs 0.3 kg.
Q8: What are the typical applications of this module?
A8: It is ideal for high-precision analog signal acquisition in DCS or SCADA systems.
