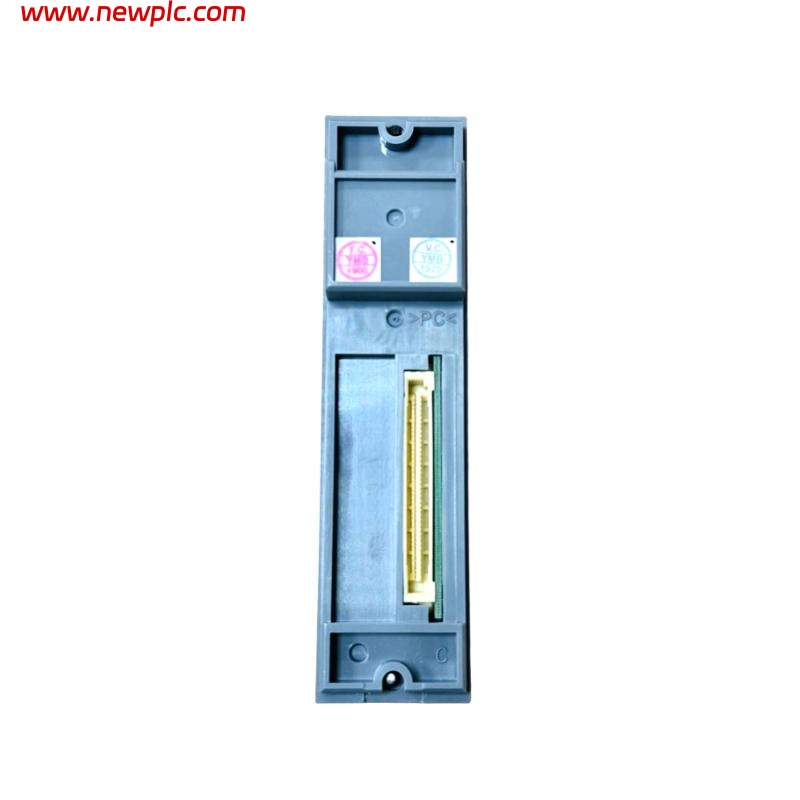

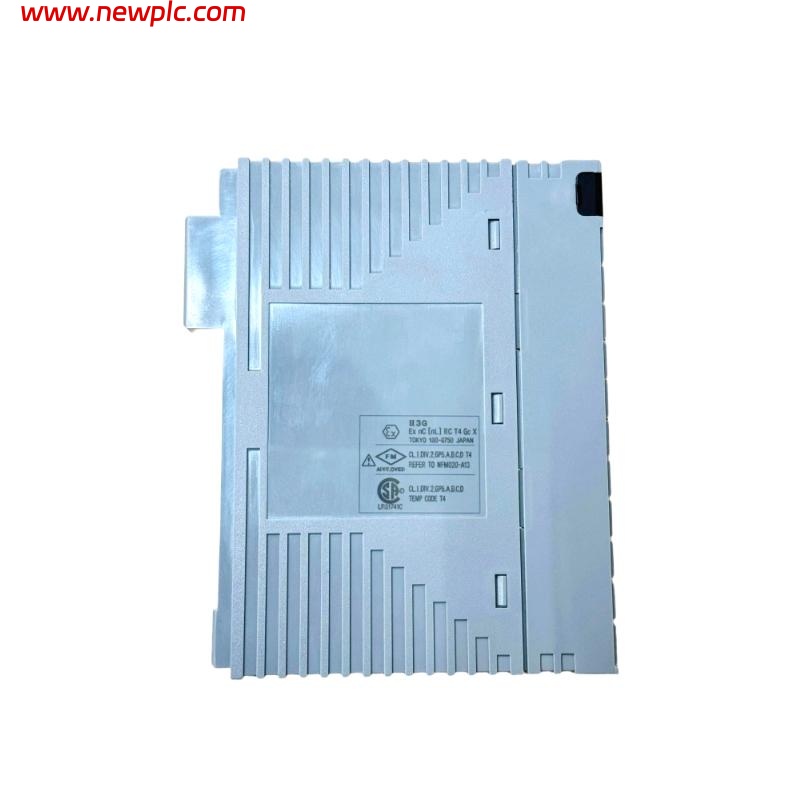

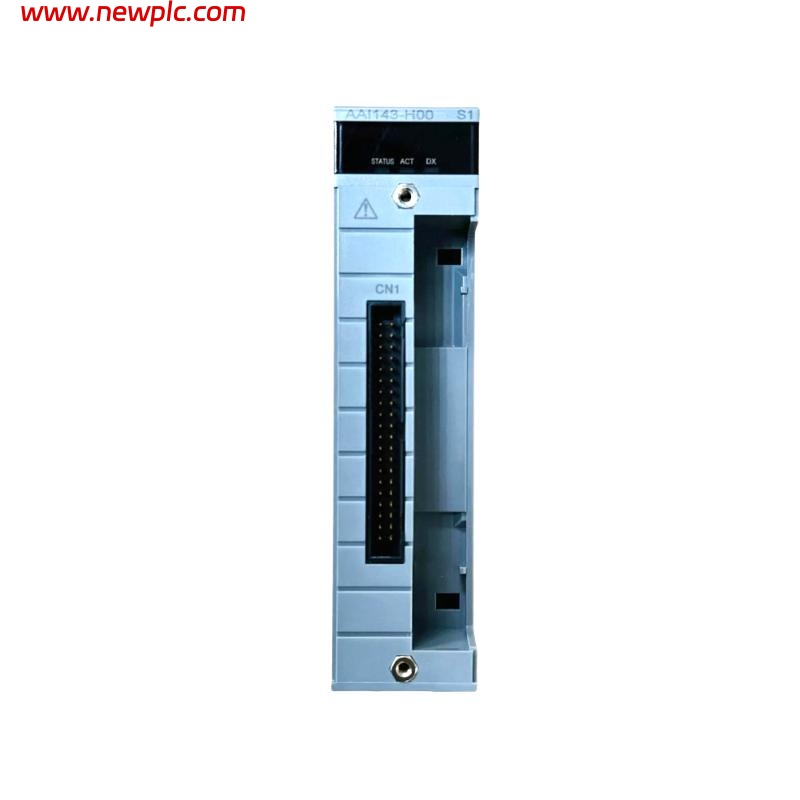

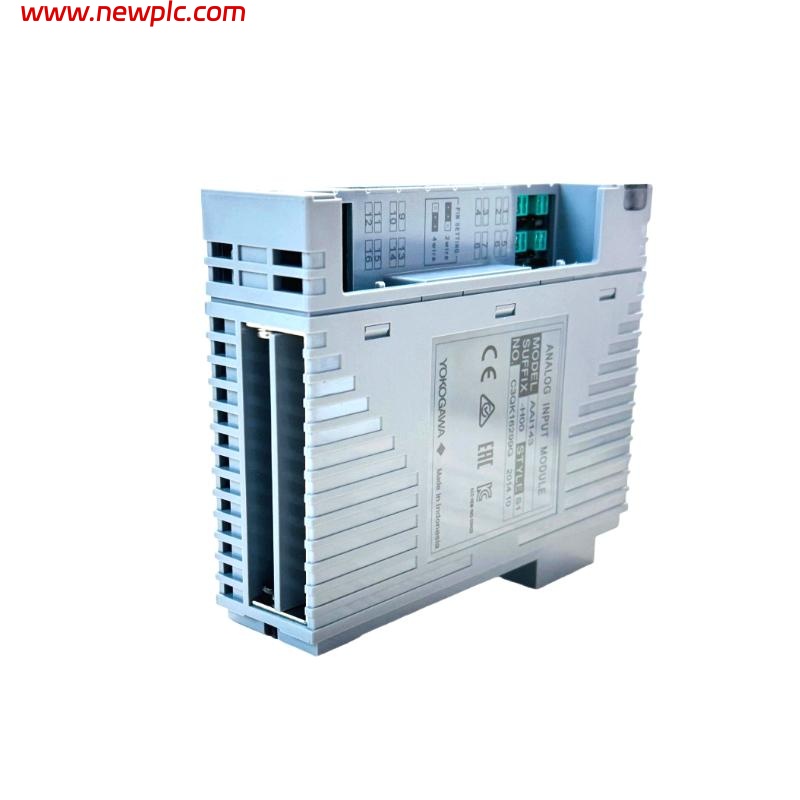

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-H00/A4S10 |
| Input Channels | 16 (isolated) |
| Input Signal | 4 to 20 mA DC |
| Allowable Input Current | 24 mA |
| Withstanding Voltage | 1500 V AC (1 minute) |
| Input Resistance (Power ON) | 270 to 350 Ω (varies by input current) |
| Input Resistance (Power OFF) | ≥ 500 kΩ |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 19.0 V min @ 20 mA, 25.5 V max @ 0 mA |
| Output Current Limit | 25 mA |
| 2-wire/4-wire Setting | Configurable per channel via setting pin |
| Temperature Drift | ±16 µA / 10°C |
| HART Communication | Supported |
| External Connection | Pressure clamp, MIL connector, KS1 cable |
| Power Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| Dimensions (W × D × H) | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What type of input signal does the AAI143-H00/A4S10 support?
A1: It supports 4 to 20 mA DC current input signals.
Q2: Are the input channels isolated?
A2: Yes, the module has 16 isolated input channels.
Q3: Does the module support HART communication?
A3: Yes, HART communication is supported when installed in a compatible ER bus node.
Q4: What is the power requirement of the module?
A4: Maximum power consumption is 230 mA at 5V DC and 540 mA at 24V DC.
Q5: Is the module suitable for intrinsically safe applications?
A5: Yes, but an isolation barrier must be used—Zener barriers are not allowed.
Q6: Can each channel be configured for 2-wire or 4-wire transmitters?
A6: Yes, each channel can be configured individually via a setting pin.
Q7: What is the accuracy of the input measurement?
A7: The input accuracy is ±16 µA.
Q8: What are the physical dimensions and weight of the module?
A8: The dimensions are 107.5 × 32.8 × 130 mm and the weight is 0.3 kg.
