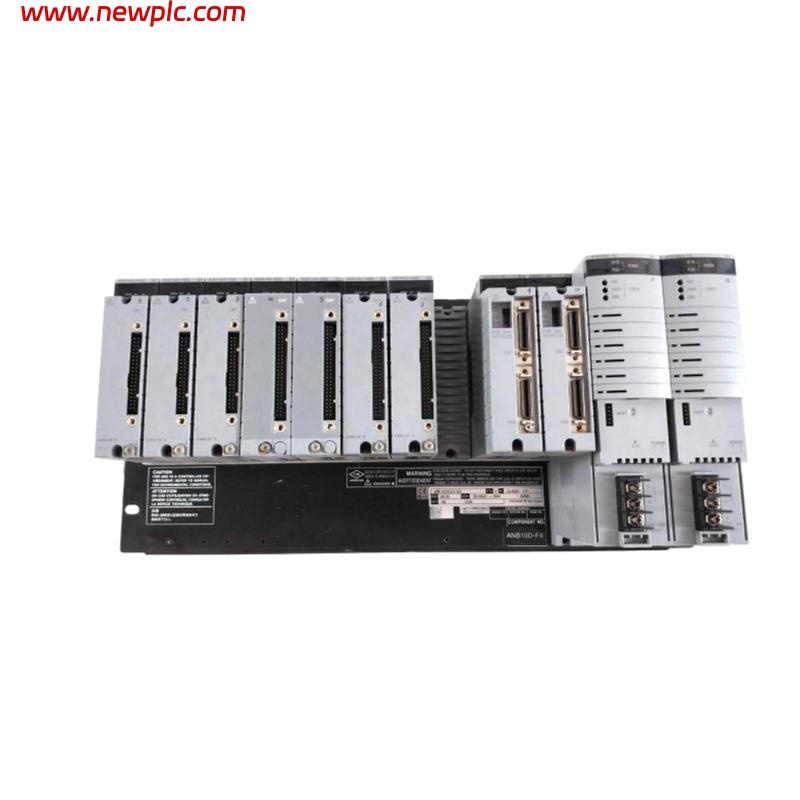

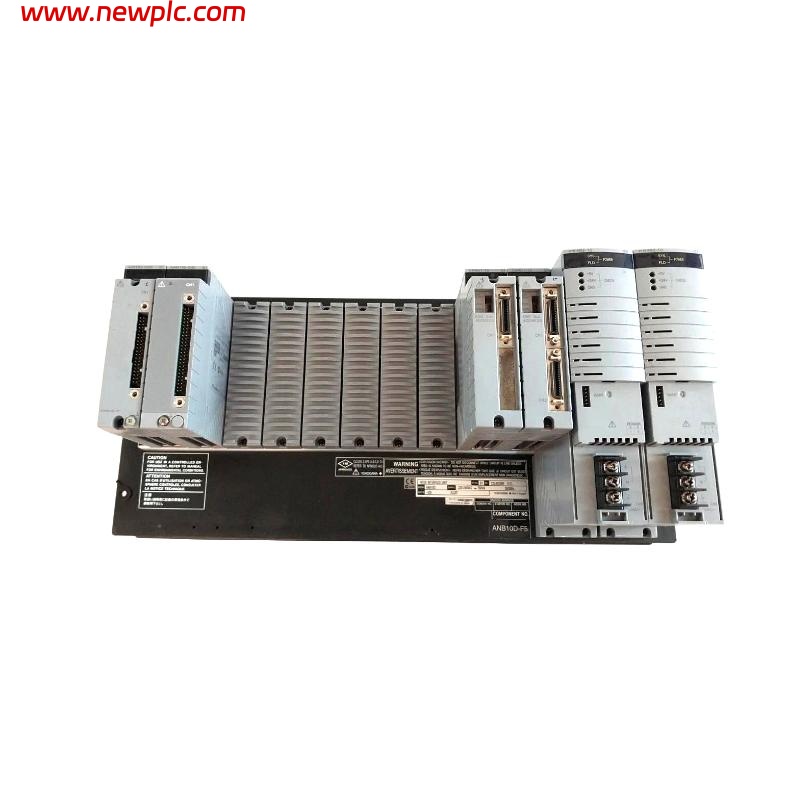

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-H03 S1 |
| Type | Analog Input Module |
| Number of Input Channels | 16, isolated |
| Input Signal | 4 to 20 mA |
| Allowable Input Current | 24 mA |
| Input Resistance (Power ON) | 270 Ω (20 mA) to 350 Ω (4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or larger |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 19.0 V or higher (at 20 mA); 25.5 V or less (at 0 mA); limit: 25 mA |
| Withstanding Voltage | 1500 V AC between input and system for 1 minute |
| HART Communication | Available |
| External Connection | Pressure clamp terminal, MIL connector, KS1 cable |
| Setting for 2-/4-wire Transmitter | Per channel, via setting pin |
| Temperature Drift | ±16 µA/10 °C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What type of input signal is supported?
A1: It supports 4 to 20 mA isolated current input signals.
Q2: Does the module support HART communication?
A2: Yes, the AAI143-H03 S1 module supports HART communication.
Q3: How many channels are available per module?
A3: There are 16 isolated input channels per module.
Q4: What is the module’s power consumption?
A4: The maximum power consumption is 230 mA at 5V DC and 540 mA at 24V DC.
Q5: Can it be used with 2-wire or 4-wire transmitters?
A5: Yes, selectable per channel via a setting pin.
Q6: What is the input accuracy?
A6: The accuracy is ±16 µA.
Q7: What is the isolation withstand voltage?
A7: The withstand voltage between input and system is 1500 V AC for 1 minute.
Q8: What are the module’s dimensions and weight?
A8: Dimensions are 107.5 × 32.8 × 130 mm, and the weight is 0.3 kg.
