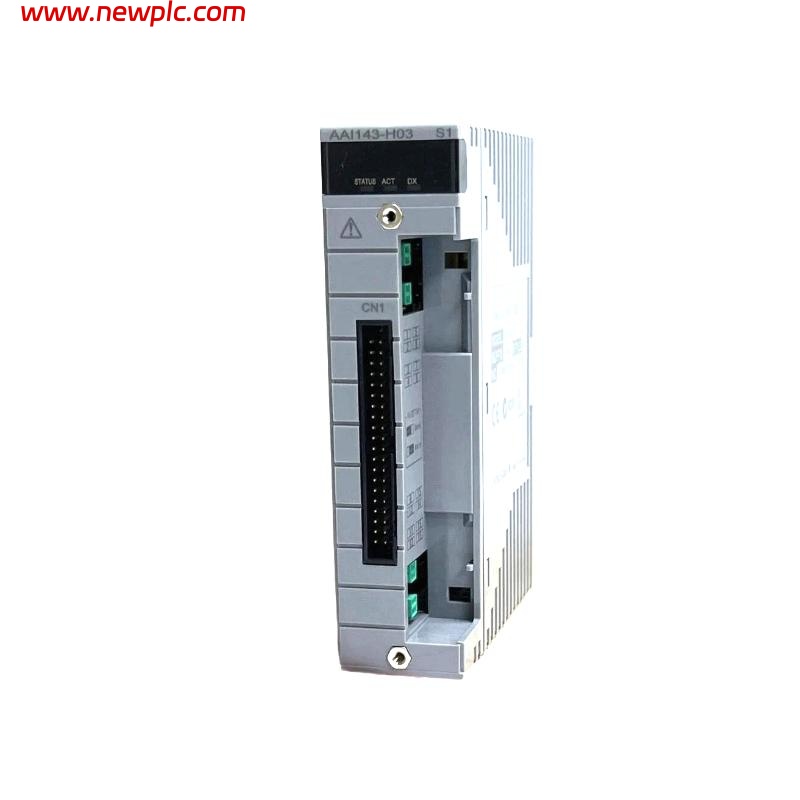

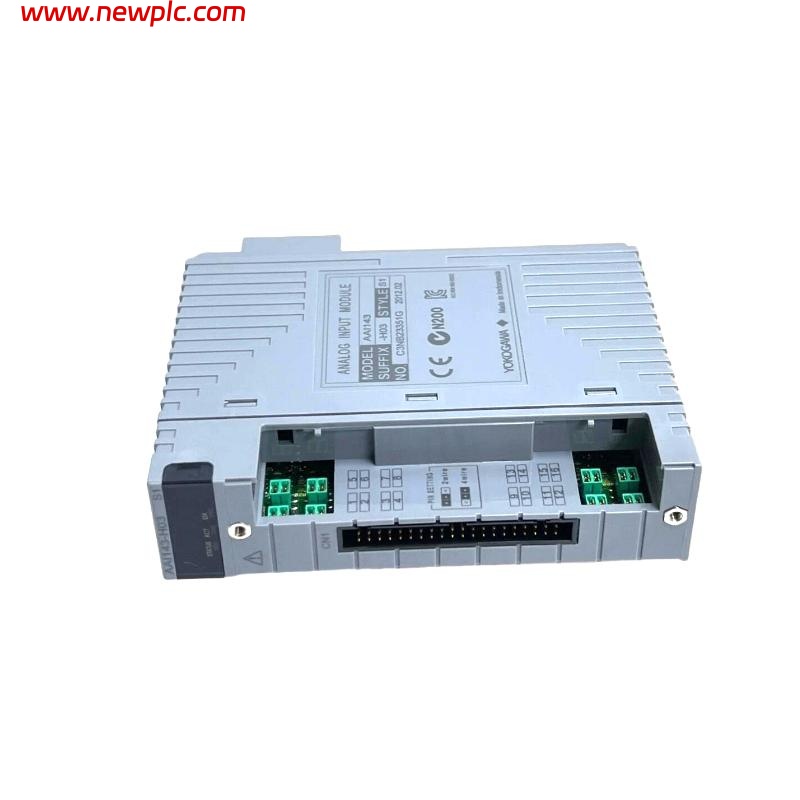

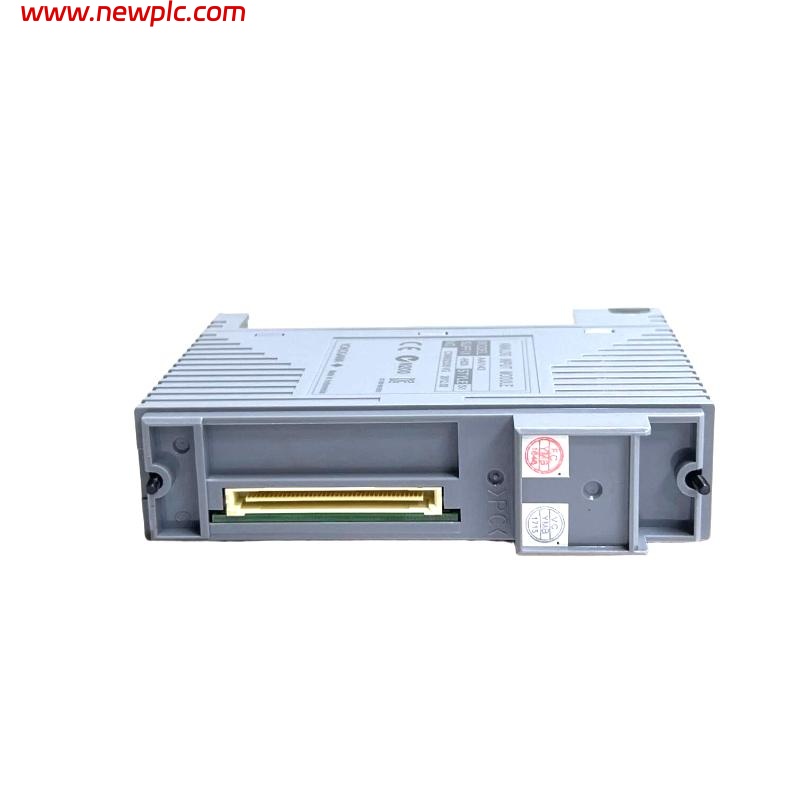

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-H03/K4A00 |
| Input Type | Current Input |
| Number of Channels | 16 isolated channels |
| Input Signal | 4 to 20 mA |
| Allowable Input Current | 24 mA |
| Withstanding Voltage | 1500 V AC (1 min) between input and system |
| Input Resistance (Power ON) | 270 Ω (at 20 mA) to 350 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or more |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 19.0 V or higher (at 20 mA), 25.5 V or less (at 0 mA), limited to 25 mA |
| 2-wire/4-wire Transmitter Setup | Configurable per channel via setting pin |
| Temperature Drift | ±16 µA per 10°C |
| Max. Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| HART Communication | Available (requires compatible node unit and firmware) |
| External Connections | Pressure clamp terminal, MIL connector cable, KS cable |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: How many input channels does the AAI143-H03/K4A00 support?
A1: It supports 16 isolated analog current input channels.
Q2: Is HART communication available on this module?
A2: Yes, HART communication is supported when used with compatible ER bus node units and firmware (e.g., EB401 Rev.2 or later).
Q3: What is the allowable input current for this module?
A3: The allowable input current is up to 24 mA.
Q4: Can a Zener barrier be used with this module?
A4: No, Zener barriers are not allowed. An isolation barrier must be used for intrinsically safe applications.
Q5: What is the data update period of this module?
A5: The data update period is 10 milliseconds.
Q6: What transmitter power supply does the module provide?
A6: The module supplies 19.0 V or higher at 20 mA, with a current limit of 25 mA.
Q7: Which control stations are compatible with this module?
A7: The module is compatible with Yokogawa FIO-based control stations such as AFV, AFF, and AFG series.
Q8: What are the dimensions and weight of the AAI143-H03/K4A00?
A8: Dimensions are 107.5 × 32.8 × 130 mm and the weight is 0.3 kg.
