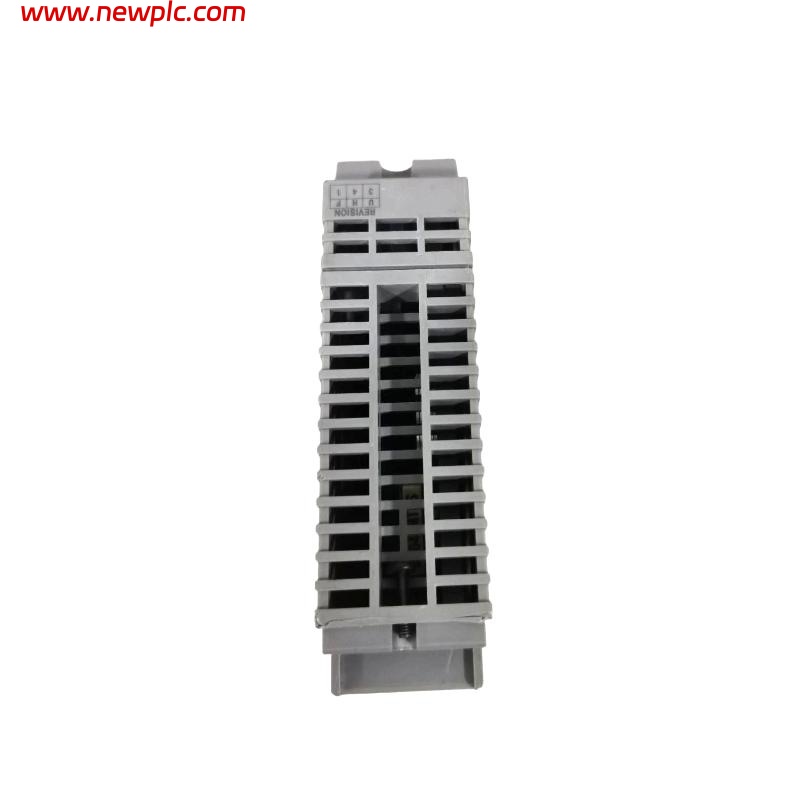

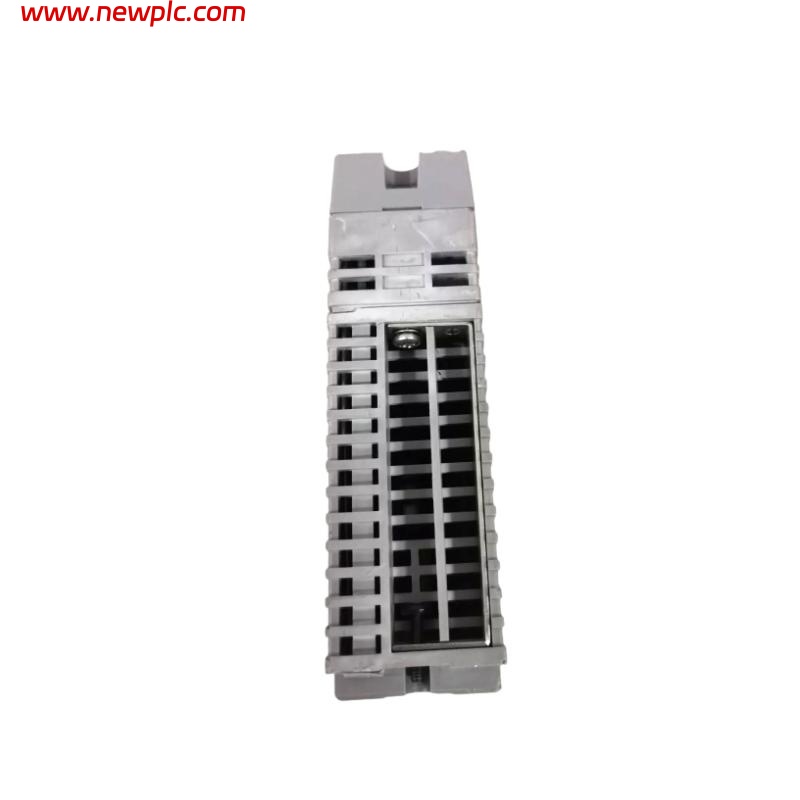

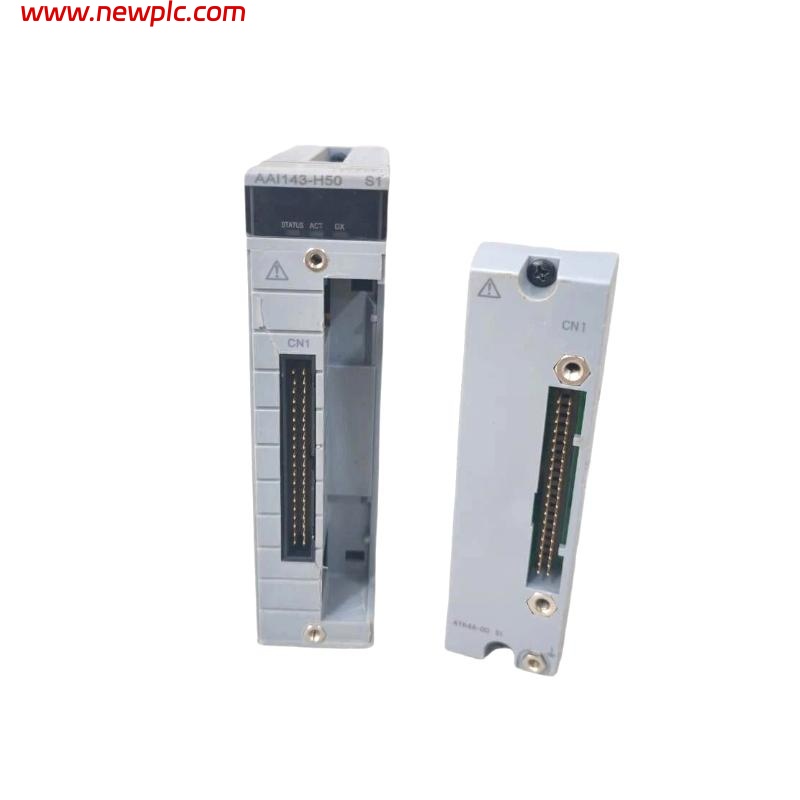

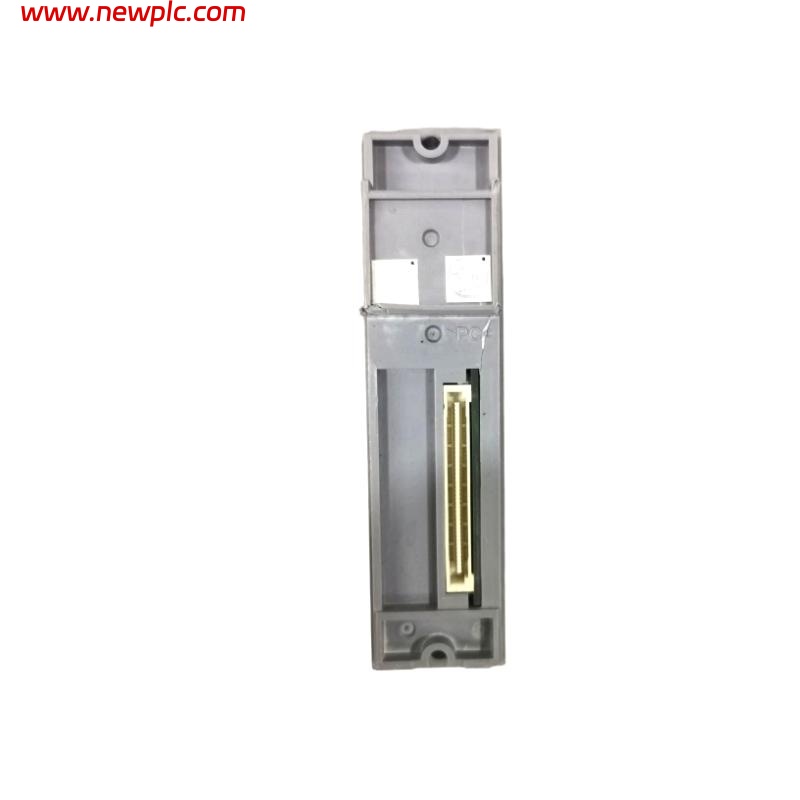

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-H50 S1 |
| Input Channels | 16 channels (isolated) |
| Input Signal | 4 to 20 mA DC |
| Allowable Input Current | 24 mA |
| Withstanding Voltage | 1500 V AC (1 min, between input and system) |
| Input Resistance (Power ON) | 270 Ω (at 20 mA) to 350 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or more |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 19.0 V (at 20 mA) to 25.5 V (at 0 mA) |
| Transmitter Output Current Limit | 25 mA |
| 2-wire/4-wire Selection | Per channel (pin setting) |
| Temperature Drift | ±16 µA/10°C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Connection | Pressure clamp terminal, MIL connector, KS1 cable |
| HART Communication | Supported |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What type of input signals does the AAI143-H50 S1 module support?
A1: It supports 4 to 20 mA DC current input signals only.
Q2: Are the input channels isolated in this module?
A2: Yes, all 16 input channels are isolated from the system.
Q3: Does the AAI143-H50 S1 support HART communication?
A3: Yes, HART communication is supported when installed in compatible ER bus node units.
Q4: What is the power consumption of the module?
A4: It consumes up to 230 mA at 5 V DC and 540 mA at 24 V DC.
Q5: Can both 2-wire and 4-wire transmitters be connected?
A5: Yes, each channel can be configured individually for 2-wire or 4-wire transmitters using pin settings.
Q6: What is the accuracy of the AAI143-H50 S1?
A6: The module has an input accuracy of ±16 µA, with a temperature drift of ±16 µA per 10°C.
Q7: Is the module suitable for intrinsically safe applications?
A7: Not directly; Zener barriers are not allowed. For intrinsically safe use, isolation barriers must be applied.
Q8: What are the physical dimensions and weight of the module?
A8: The module measures 107.5 × 32.8 × 130 mm and weighs 0.3 kg.
