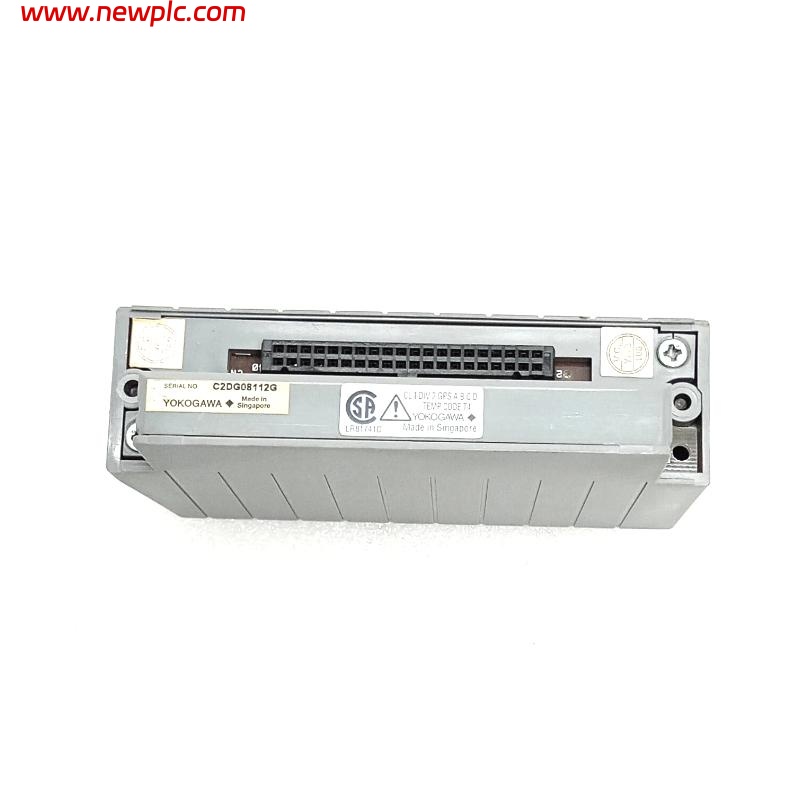

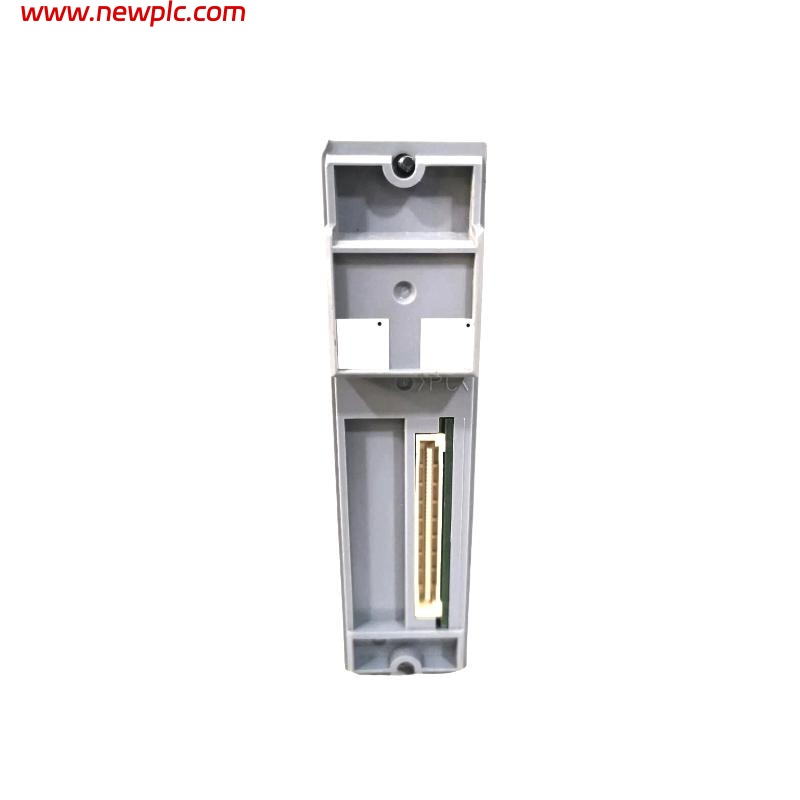

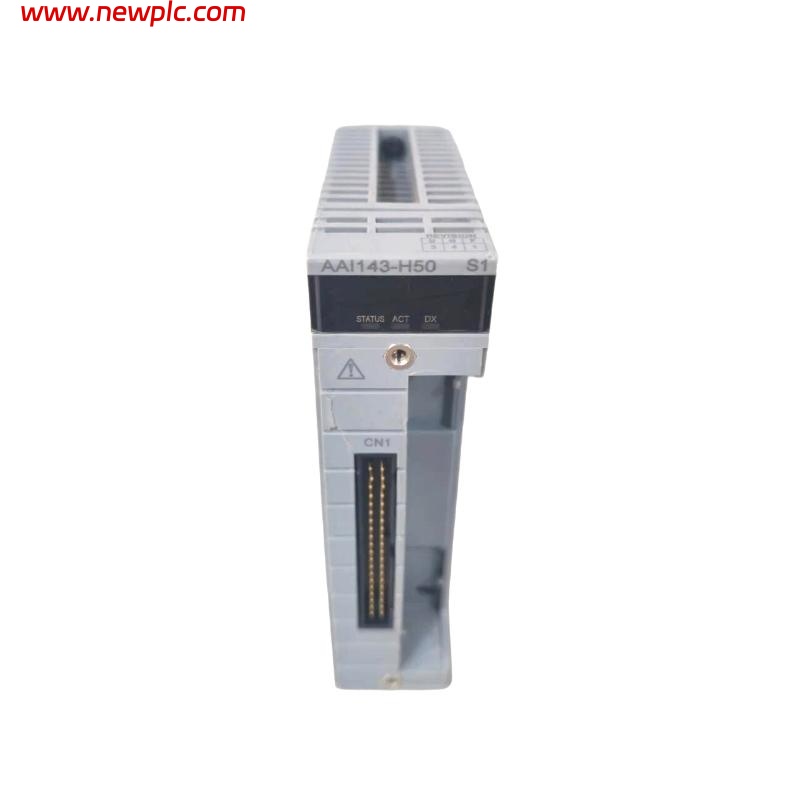

Technical Specifications

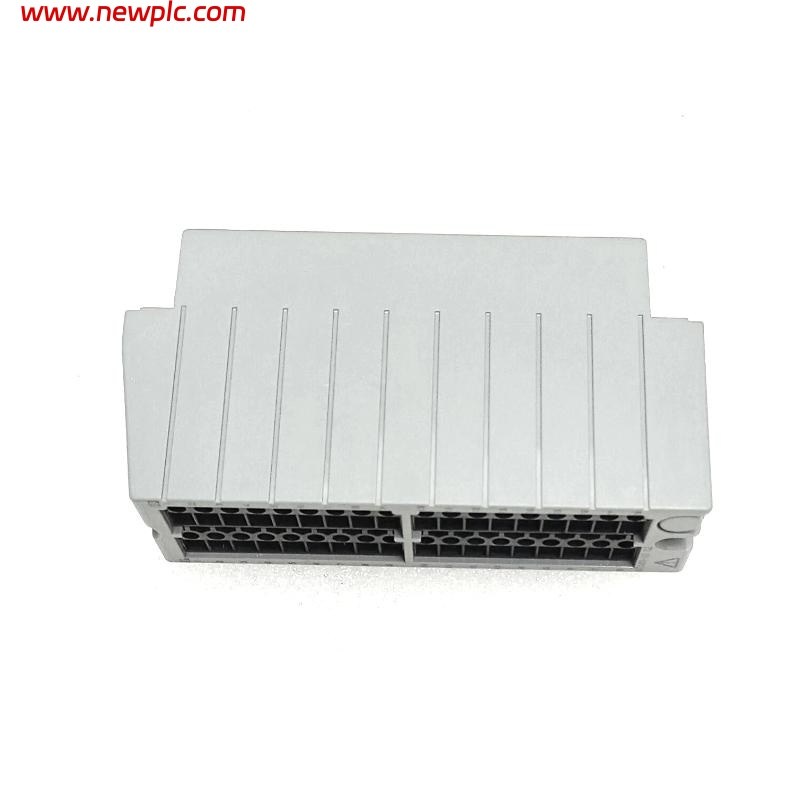

| Parameter | Specification |
|---|---|
| Model | Yokogawa AAI143-H50/ATA4S-00 |
| Input Channels | 16 channels (Isolated) |
| Input Signal | 4 to 20 mA |
| Allowable Input Current | 24 mA |
| Input Resistance (Power ON) | 270 Ω (at 20 mA) to 350 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or more |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Step Response Time | 100 ms |
| Drift Due to Temperature Change | ±16 µA per 10°C |
| Withstanding Voltage | 1500 V AC between input and system for 1 minute |
| Transmitter Power Supply | 19.0 V or more (at 20 mA), 25.5 V or less (at 0 mA), limit: 25 mA |
| 2-wire/4-wire Setting | Configurable per channel via pin settings |
| HART Communication | Available |
| External Connections | Pressure clamp terminal, MIL connector, KS1 cable |
| Power Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What type of input signal does the AAI143-H50/ATA4S-00 module support?
A1: It supports isolated 4 to 20 mA DC analog input signals.
Q2: How many input channels does this module provide?
A2: It provides 16 isolated input channels.
Q3: Does the module support HART communication?
A3: Yes, HART communication is available when connected to compatible ER bus nodes.
Q4: What is the input resistance of the module?
A4: It ranges from 270 Ω (at 20 mA) to 350 Ω (at 4 mA) when powered on.
Q5: What is the update rate of the input data?
A5: The data update period is 10 milliseconds.
Q6: Is the AAI143 module suitable for intrinsically safe applications?
A6: Yes, but it requires the use of isolation barriers. Zener barriers must not be used.
Q7: How is the 2-wire or 4-wire transmitter configured?
A7: Configuration is done individually for each channel using setting pins.
Q8: What is the physical size and weight of the AAI143-H50/ATA4S-00 module?
A8: The dimensions are 107.5 × 32.8 × 130 mm and the weight is 0.3 kg.
