Technical Specifications
| Parameter | Specification |
|---|---|

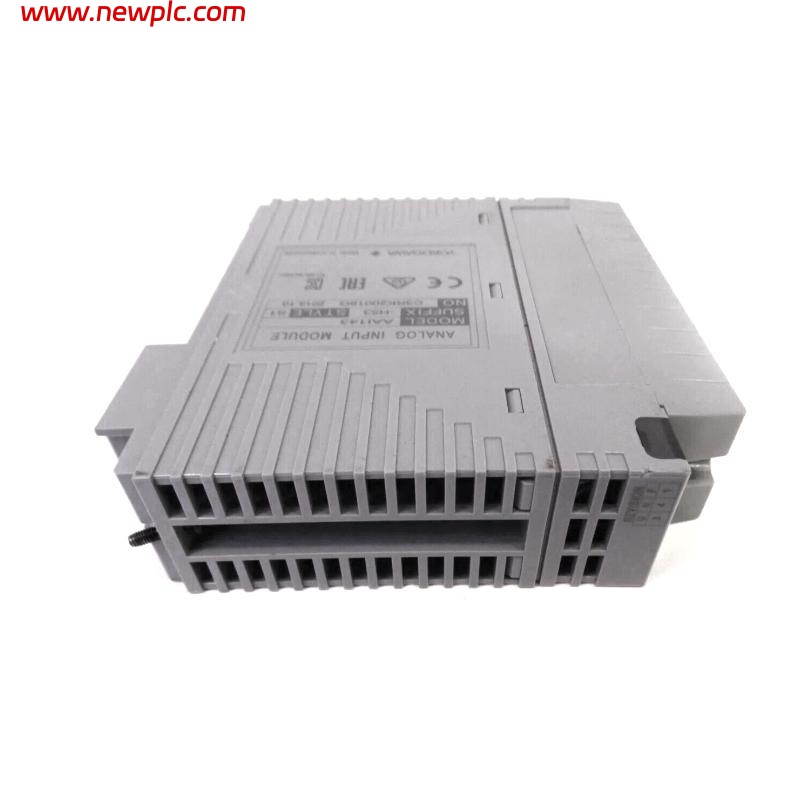

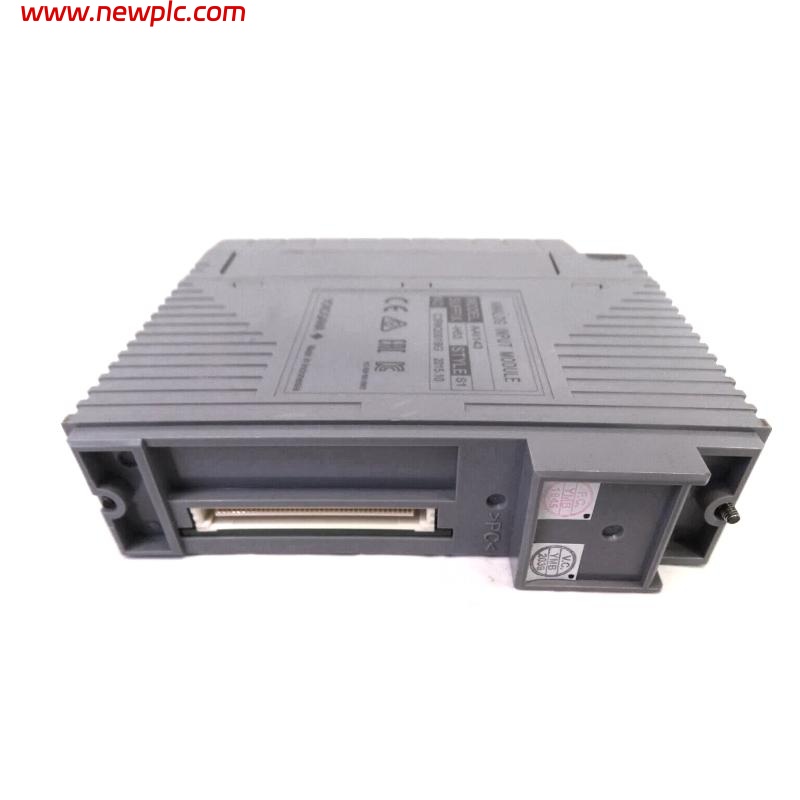

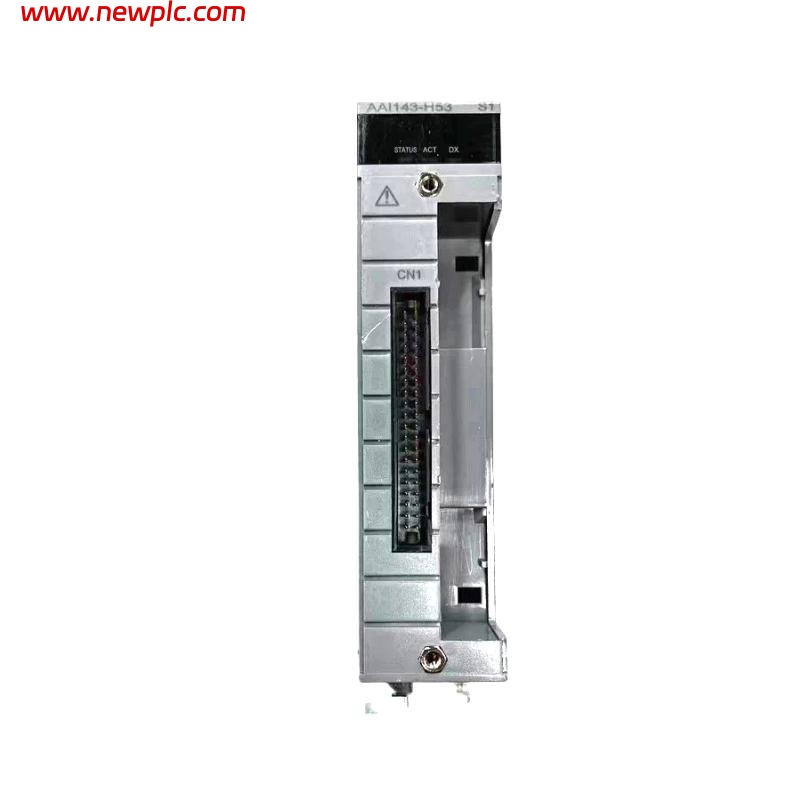

| Model | AAI143-H53/A4D00 |
| Type | Analog Input Module (Isolated, with HART Communication) |
| Number of Input Channels | 16 |
| Input Signal | 4 to 20 mA |
| Allowable Input Current | 24 mA |
| Withstanding Voltage | 1500 V AC for 1 minute (between input and system) |
| Input Resistance (Power ON) | 270 Ω (at 20 mA) to 350 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or larger |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 19.0 V or higher (at 20 mA), 25.5 V or less (at 0 mA), limit 25 mA |
| 2-wire / 4-wire Transmitter | Selectable per channel by setting pin |
| Temperature Drift | ±16 µA / 10°C |
| Max. Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Connection | Pressure clamp terminal, MIL connector cable, KS1 dedicated cable |
| HART Communication | Available |
| Dimensions (W × H × D) | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What type of input signal does the AAI143-H53/A4D00 module accept?
A1: It accepts 4 to 20 mA current input signals.
Q2: Is the module isolated?
A2: Yes, it features isolation between the input and the system.
Q3: Does this module support HART communication?
A3: Yes, HART communication is supported for enhanced field device integration.
Q4: How is 2-wire and 4-wire transmitter support configured?
A4: Each channel can be configured individually via setting pins.
Q5: What is the input resistance when the module is powered off?
A5: When powered off, the input resistance is 500 kΩ or more.
Q6: What are the physical dimensions of this module?
A6: It measures 107.5 × 32.8 × 130 mm and weighs 0.3 kg.
Q7: What is the maximum allowable input current per channel?
A7: The module allows up to 24 mA per channel.
Q8: Are there any safety precautions when using this module?
A8: Yes, Zener barriers must not be connected. Use isolation barriers in intrinsically safe applications.
