Technical Specifications
| Parameter | Specification |
|---|---|

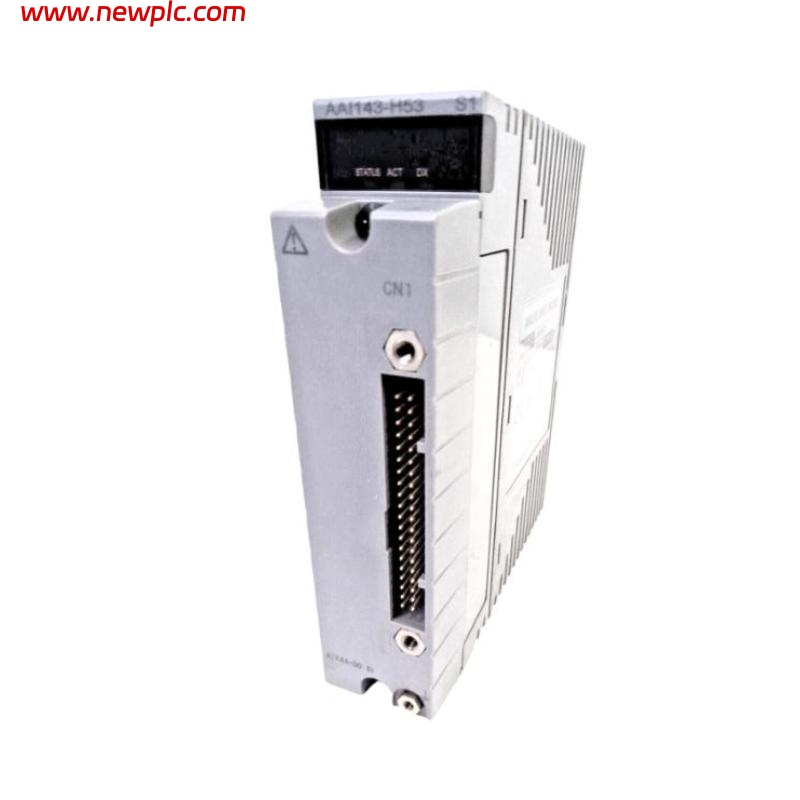

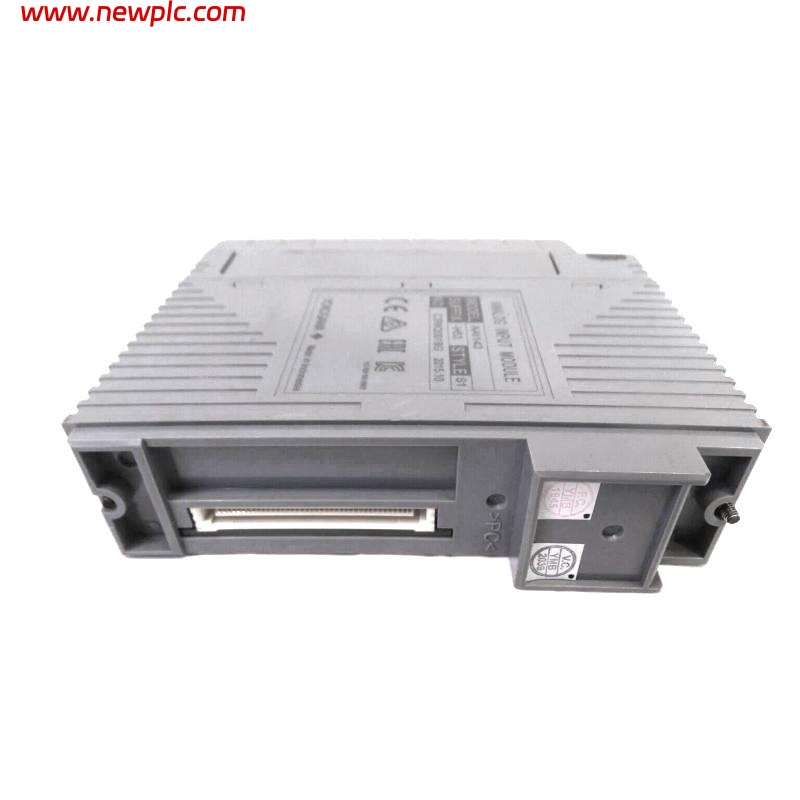

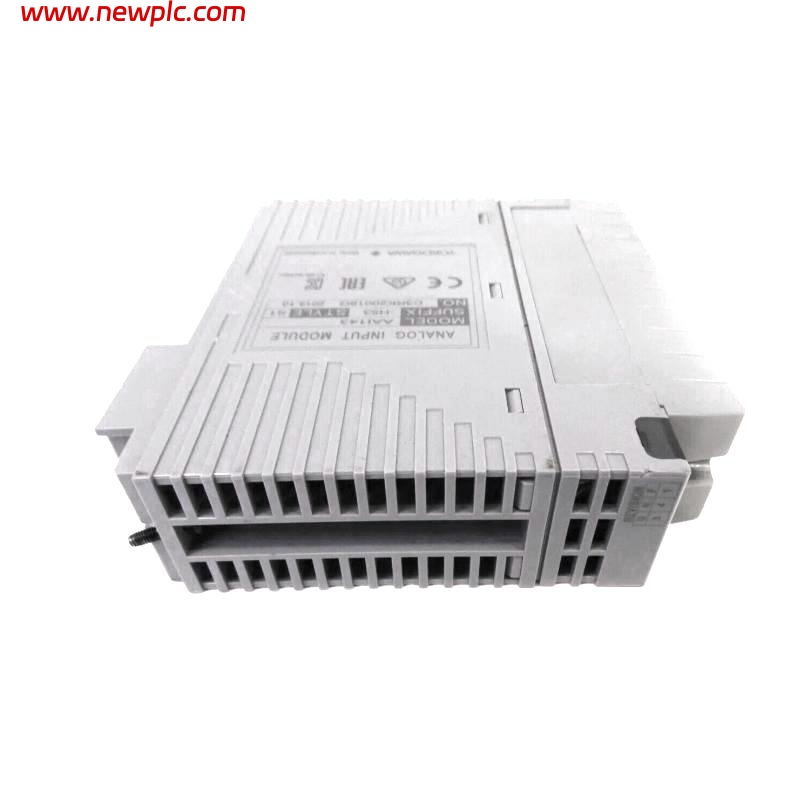

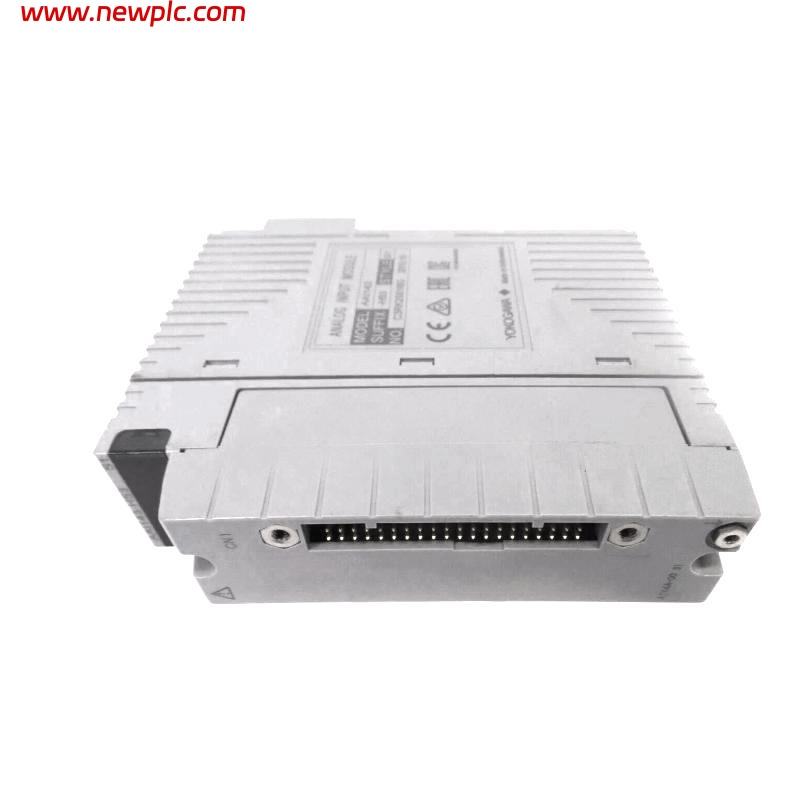

| Model | AAI143-H53/A4S00 |
| Input Type | Analog Current Input (Isolated) |
| Number of Input Channels | 16 channels |
| Input Signal Range | 4 to 20 mA DC |
| Allowable Input Current | Up to 24 mA |
| Input Resistance (Power ON) | 270 Ω (at 20 mA) to 350 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or larger |
| Withstanding Voltage | 1500 V AC for 1 minute (input to system) |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 19.0 V (min at 20 mA), 25.5 V (max at 0 mA), 25 mA limit |
| Channel Type Setting | Individual setting pin (2-wire/4-wire) |
| Temperature Drift | ±16 µA / 10°C |
| HART Communication | Supported (Rev. 5.7) |
| External Connection | Pressure clamp terminal, MIL connector, KS1 cable |
| Power Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What type of signals does this module support?
A1: It supports 4 to 20 mA DC analog current input signals.
Q2: Is the AAI143-H53/A4S00 an isolated input module?
A2: Yes, the module is electrically isolated between the input and the system.
Q3: Does this module support HART communication?
A3: Yes, it supports HART communication protocol (HART Revision 5.7).
Q4: Can each channel be configured individually for 2-wire or 4-wire transmitters?
A4: Yes, each channel can be configured using setting pins.
Q5: What is the typical accuracy of this module?
A5: The accuracy is ±16 µA.
Q6: What are the power consumption requirements of this module?
A6: The typical power consumption is 230 mA at 5 V DC and 540 mA at 24 V DC.
Q7: Can a Zener barrier be used with this module?
A7: No, a Zener barrier is not allowed. Use an isolation barrier for intrinsically safe applications.
Q8: What are the dimensions and weight of this module?
A8: The dimensions are 107.5 × 32.8 × 130 mm, and the weight is 0.3 kg.
