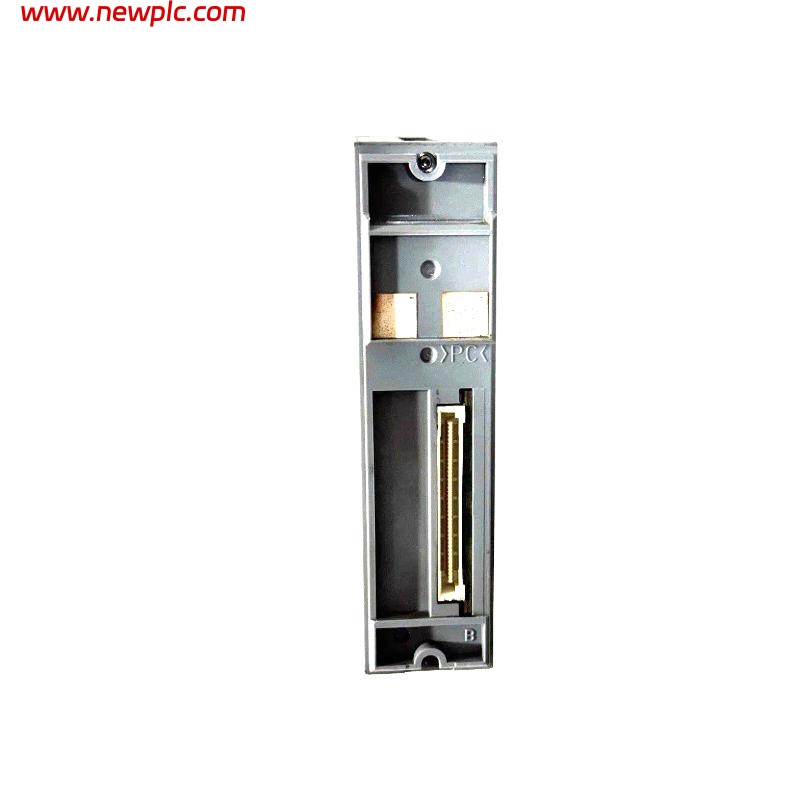

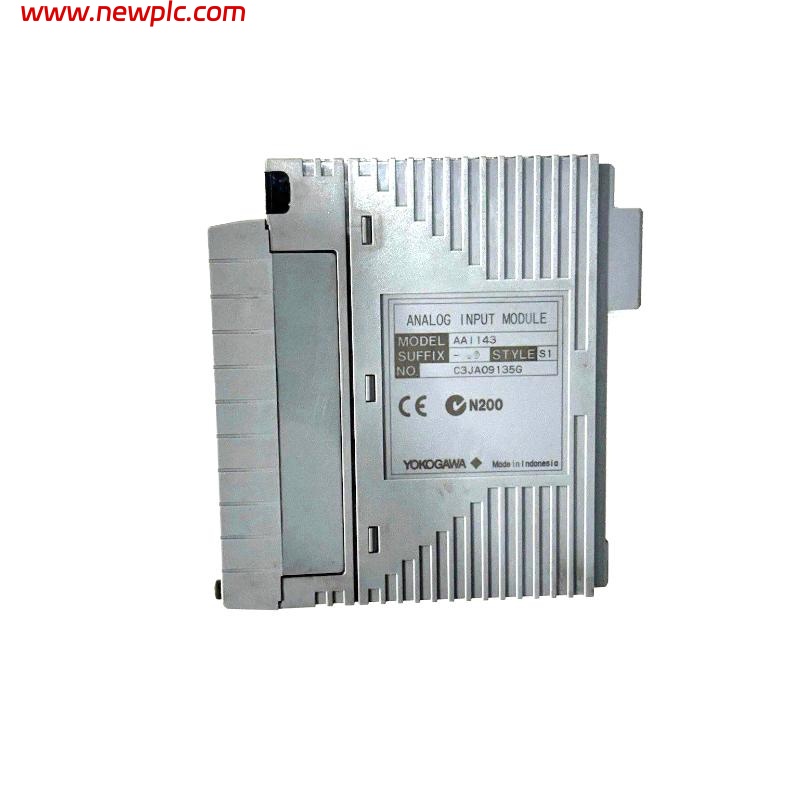

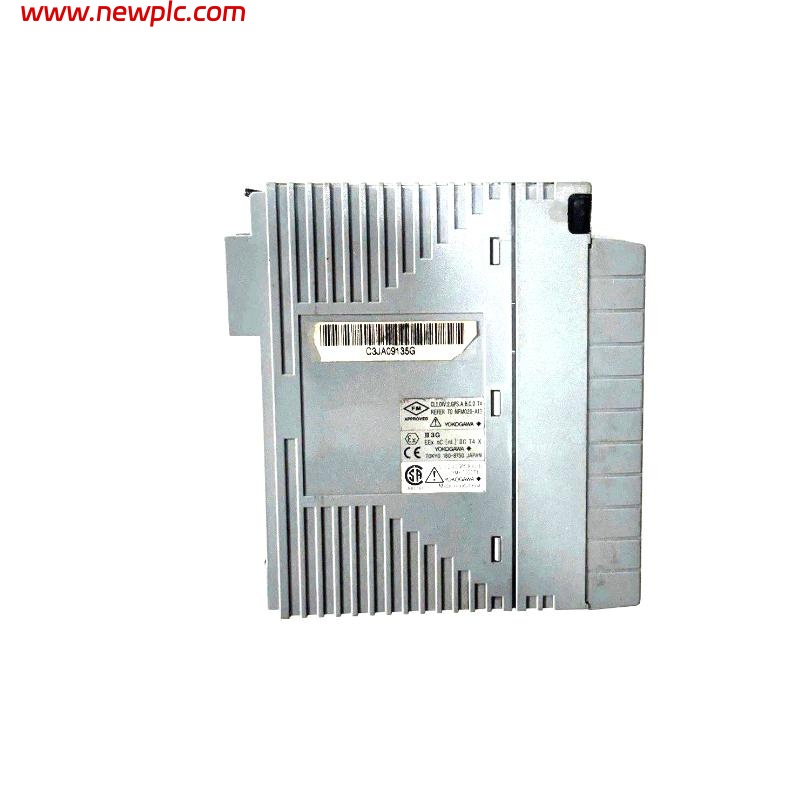

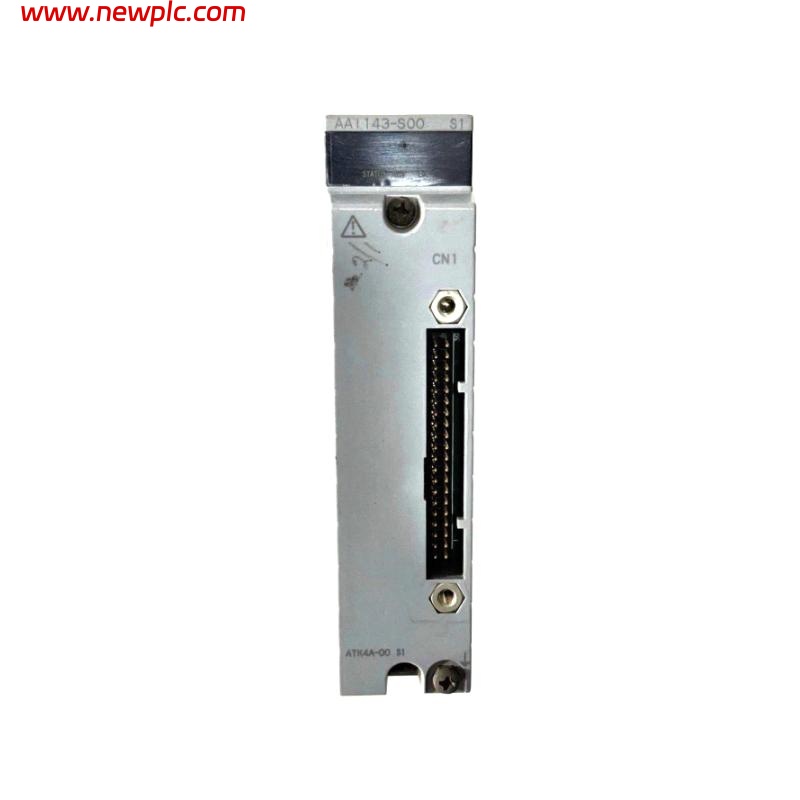

Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | AAI143-H53/K4A00 |
| Type | Analog Input Module (Isolated) |
| Input Channels | 16 channels |
| Input Signal | 4 to 20 mA |
| Allowable Input Current | 24 mA |
| Withstanding Voltage | 1500 V AC (1 min) between input and system |
| Input Resistance (Power ON) | 270 Ω (at 20 mA) to 350 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or more |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 19.0 V or higher (at 20 mA), 25.5 V or less (at 0 mA) |
| Output Current Limit | 25 mA |
| 2-wire/4-wire Transmitter Setting | Configurable per channel by setting pin |
| Temperature Drift | ±16 µA/10°C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Communication | Pressure clamp terminal, MIL connector, KS1 dedicated cable |
| HART Communication | Available |
| Dimensions (W × D × H) | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What type of signal does the module accept?
A1: The AAI143-H53/K4A00 accepts 4 to 20 mA DC analog current signals.
Q2: Is this module electrically isolated?
A2: Yes, it features isolation between input channels and the system for safety and signal integrity.
Q3: Does it support HART communication?
A3: Yes, HART communication is supported for integration with smart transmitters.
Q4: Can this module be used in intrinsically safe applications?
A4: Not directly; use an isolation barrier instead of a Zener barrier for such applications.
Q5: Are 2-wire and 4-wire transmitters supported?
A5: Yes, each channel supports individual configuration for 2-wire or 4-wire transmitters.
Q6: What is the power consumption of the module?
A6: Maximum consumption is 230 mA at 5 V DC and 540 mA at 24 V DC.
Q7: What are the physical dimensions and weight?
A7: The module measures 107.5 × 32.8 × 130 mm and weighs 0.3 kg.
Q8: What types of connectors are supported for field wiring?
A8: The module supports pressure clamp terminals, MIL connector cables, and KS1 dedicated cables.
