Technical Specifications
| Parameter | Description |
|---|---|

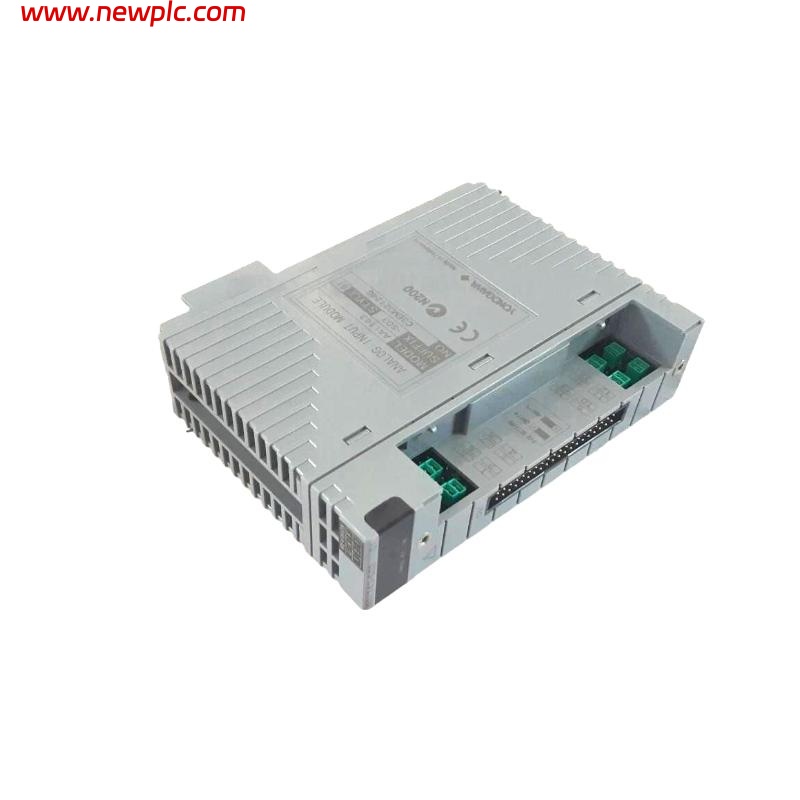

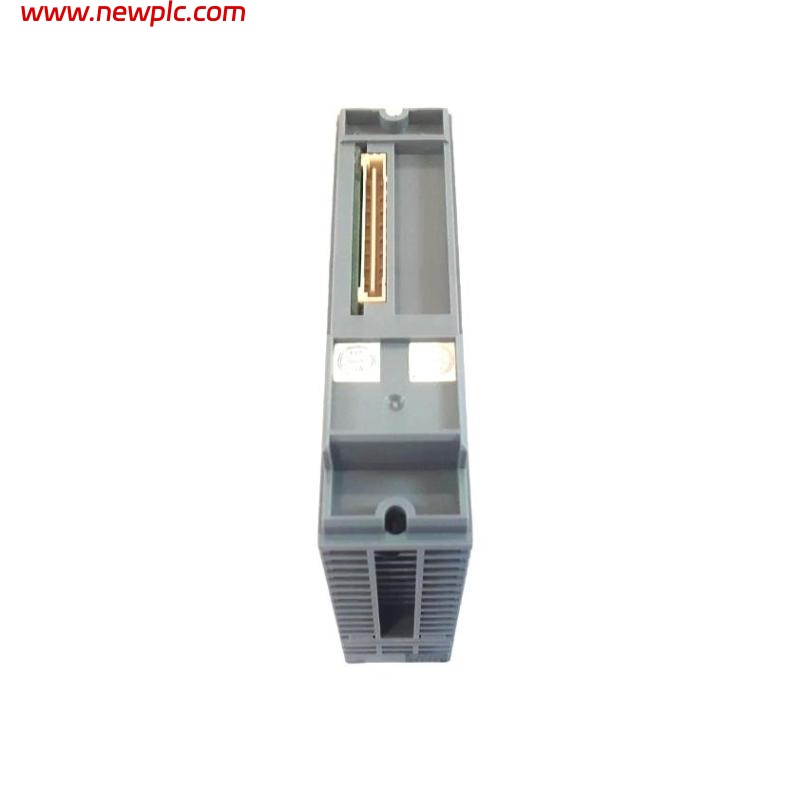

| Model | Yokogawa AAI143-S03/ATA4S-00 |
| Module Type | Analog Input Module |
| Input Channels | 16 channels |
| Input Signal Type | 4–20 mA DC |
| Resolution | 12 bits |
| Input Accuracy | ±0.1% of span |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Power Supply Voltage | 24 V DC |
| Power Consumption | 3.5 W |
| Operating Temperature Range | 0 to 55 °C |
| Storage Temperature Range | -40 to 70 °C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What type of signals does the AAI143-S03/ATA4S-00 accept?
A1: It accepts 4–20 mA DC analog input signals.
Q2: How many channels does this module provide?
A2: It provides 16 independent analog input channels.
Q3: What is the resolution of the input data?
A3: The resolution is 12 bits.
Q4: Does this module provide input isolation?
A4: Yes, it provides both channel-to-channel and channel-to-system isolation.
Q5: What is the power consumption of the module?
A5: The power consumption is approximately 3.5 W.
Q6: What is the operating temperature range?
A6: The module operates between 0 and 55 °C.
Q7: Is it suitable for high-humidity environments?
A7: Yes, it can operate in 5% to 95% RH non-condensing environments.
Q8: What are the physical dimensions and weight of the module?
A8: The dimensions are 107.5 × 32.8 × 130 mm, and the weight is 0.3 kg.
