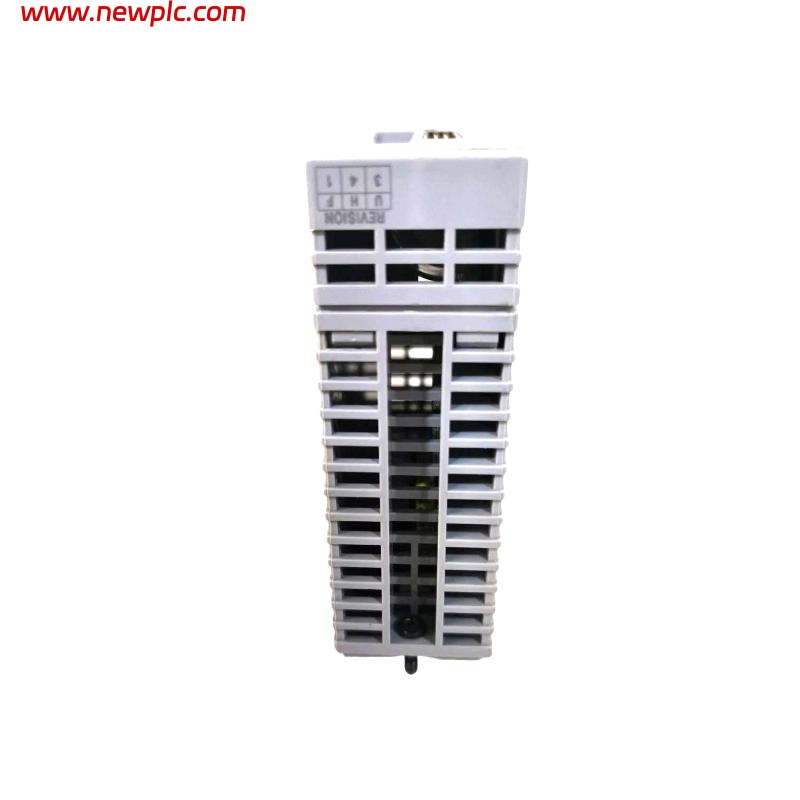

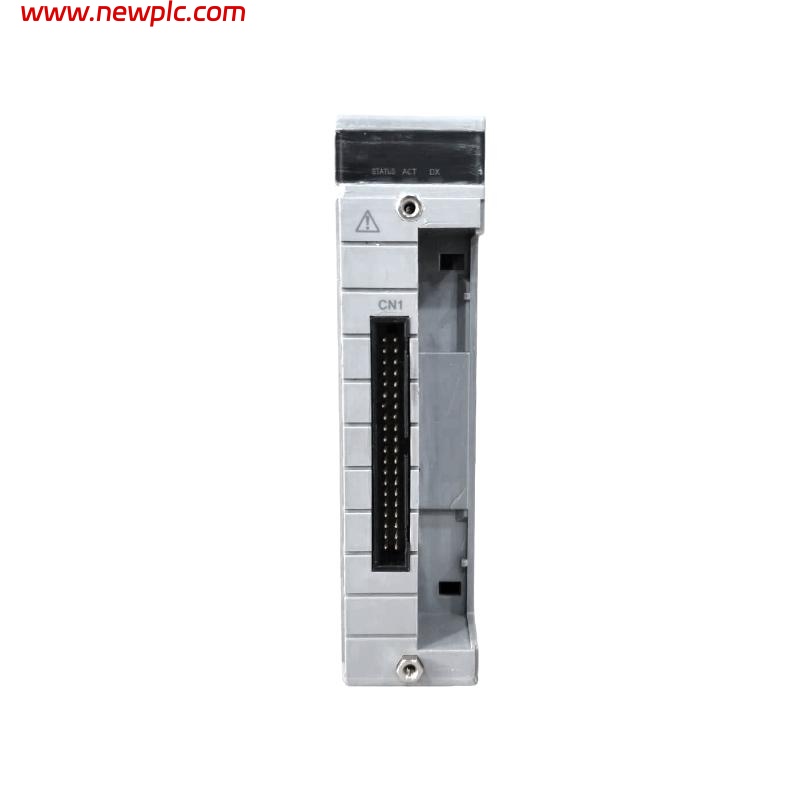

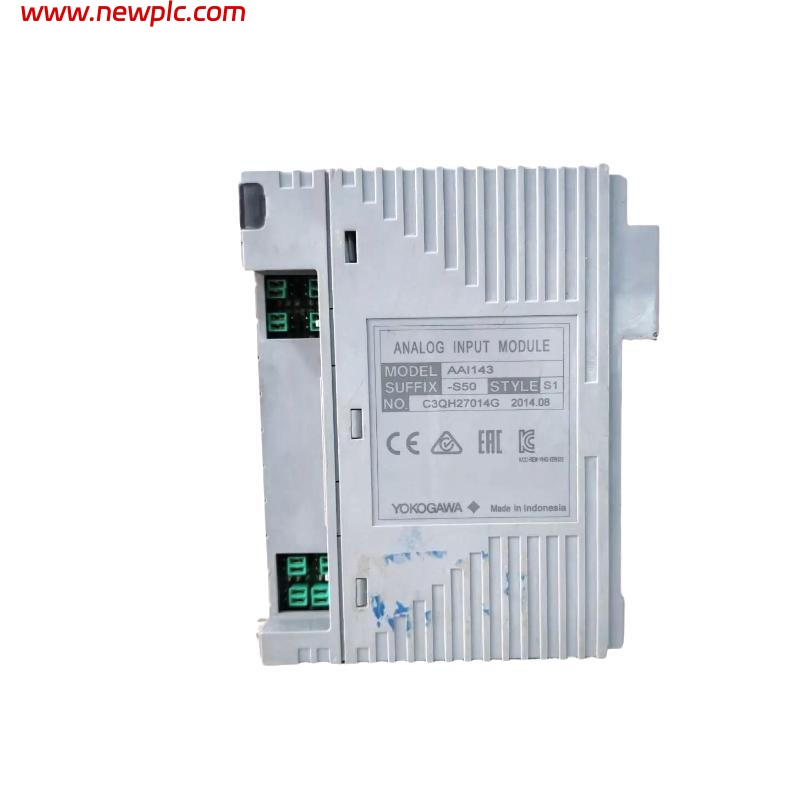

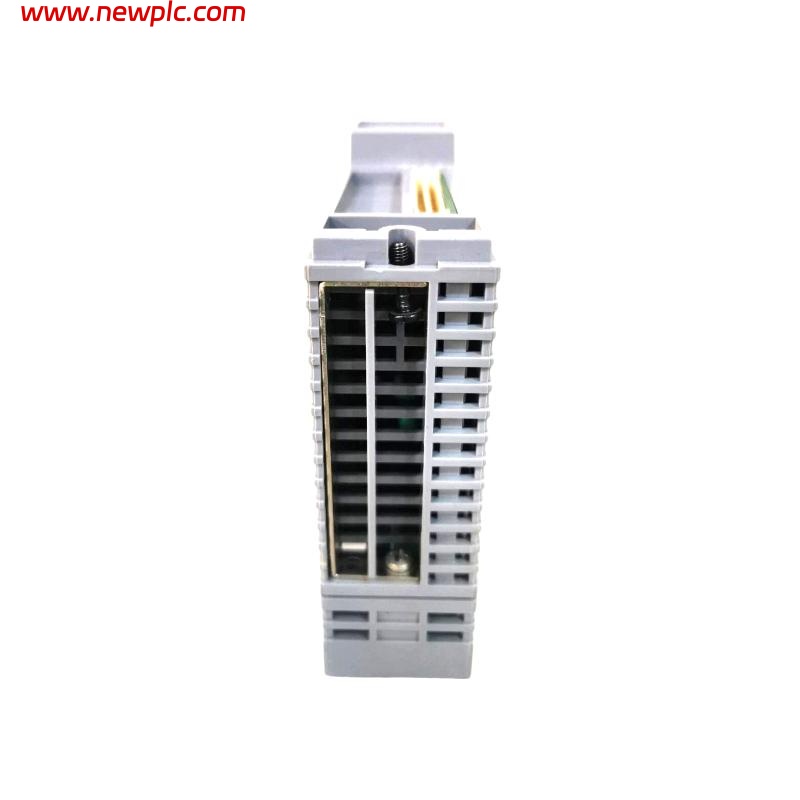

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-S50/A4S00 |
| Input Channels | 16 channels (Isolated) |
| Input Signal | 4 to 20 mA |
| Allowable Input Current | 24 mA |
| Input Resistance (Power ON) | 270 Ω (at 20 mA) to 350 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or more |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Step Response Time | Not specified |
| Drift (Ambient Temperature Change) | ±16 µA per 10 °C |
| Withstanding Voltage | 1500 V AC (between input and system, 1 minute) |
| Transmitter Power Supply | 19.0 V or higher (at 20 mA), 25.5 V or less (at 0 mA) |
| Output Current Limit | 25 mA |
| 2-wire/4-wire Transmitter Setting | Settable per channel via pin |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| HART Communication | Supported |
| External Connections | Pressure clamp terminal, MIL connector cable, KS1 cable |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What type of input signal does the AAI143 module support?
A1: The AAI143 supports 4 to 20 mA analog current input signals.
Q2: Are the input channels of AAI143 electrically isolated?
A2: Yes, all 16 input channels are isolated to ensure better signal integrity and noise immunity.
Q3: Does the module support HART communication?
A3: Yes, the AAI143-H model supports HART communication when connected with compatible equipment.
Q4: What is the maximum power consumption of the AAI143 module?
A4: The module consumes up to 230 mA at 5 V DC and 540 mA at 24 V DC.
Q5: Can each channel be configured for 2-wire or 4-wire transmitter?
A5: Yes, each channel can be individually configured for 2-wire or 4-wire mode using a setting pin.
Q6: What is the input accuracy of the AAI143?
A6: The input accuracy is ±16 µA, suitable for precise measurement applications.
Q7: What are the physical dimensions of the AAI143 module?
A7: The dimensions are 107.5 × 32.8 × 130 mm.
Q8: What connection options are available for external wiring?
A8: The module supports pressure clamp terminals, MIL connector cables, and KS1 dedicated cables.
