Technical Specifications
| Parameter | Specification |
|---|---|

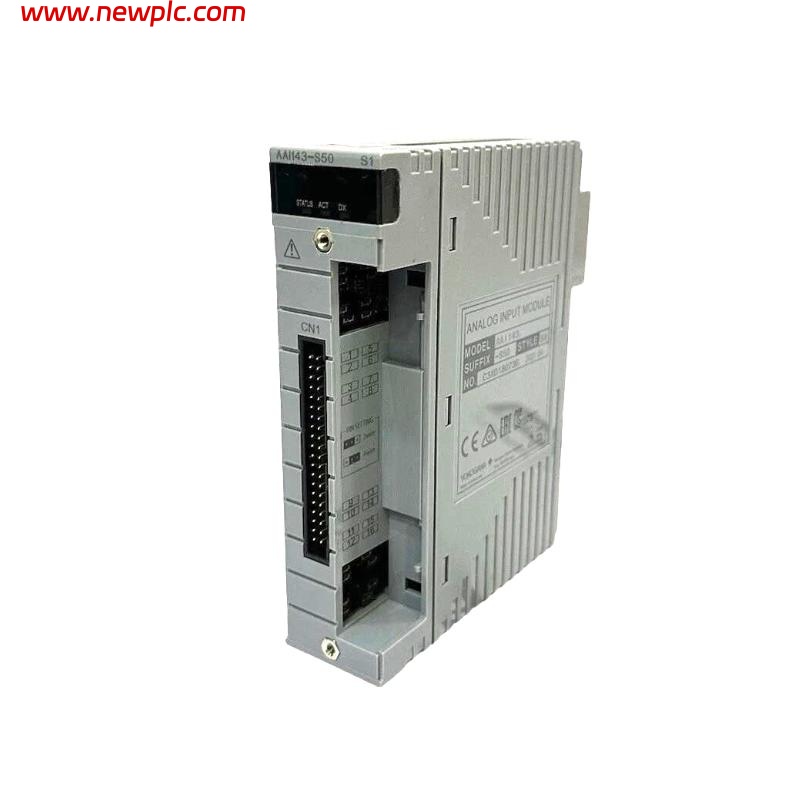

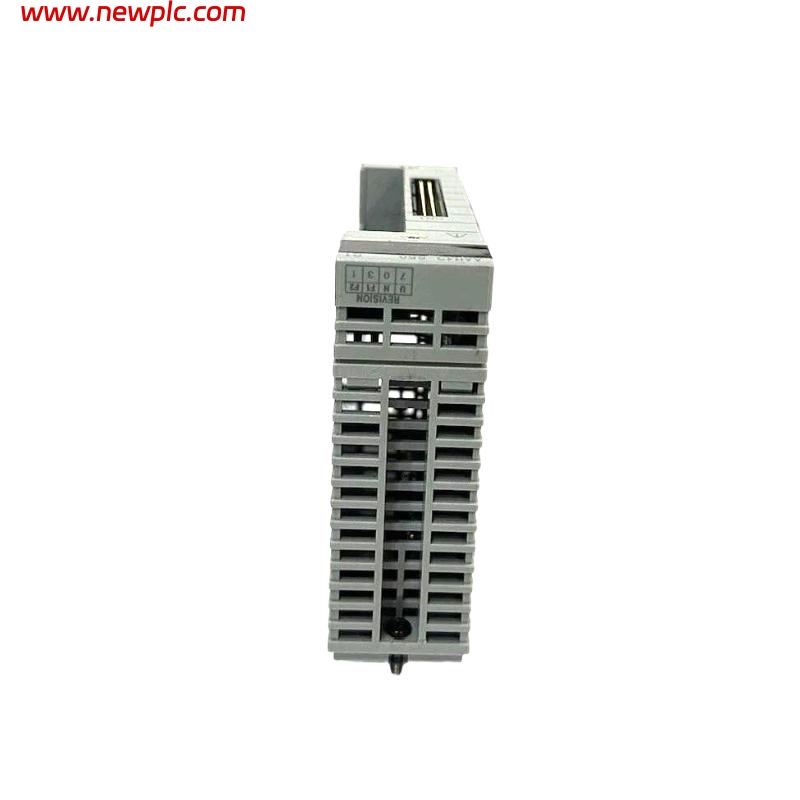

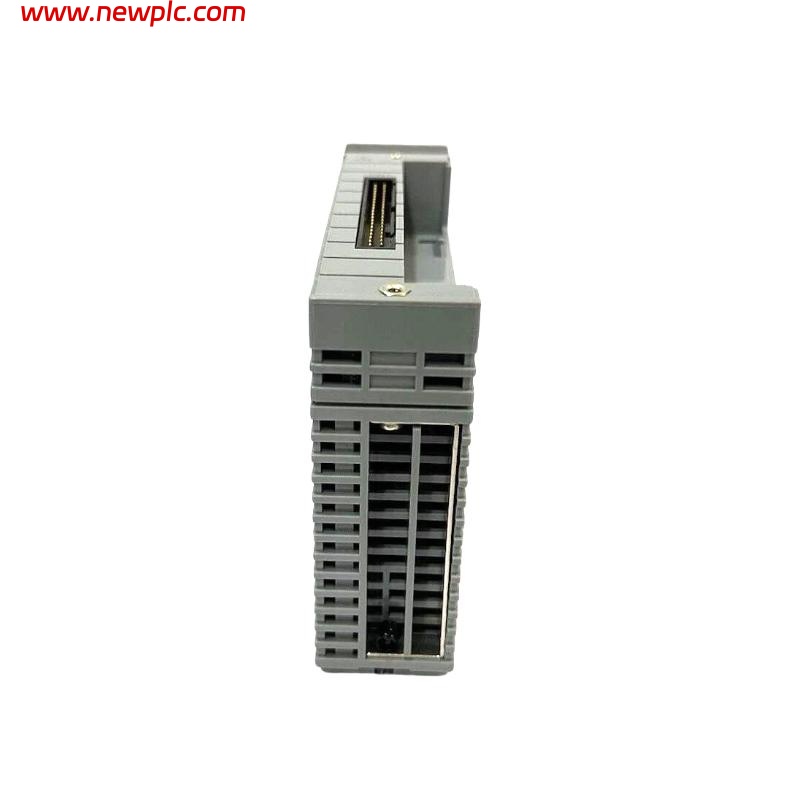

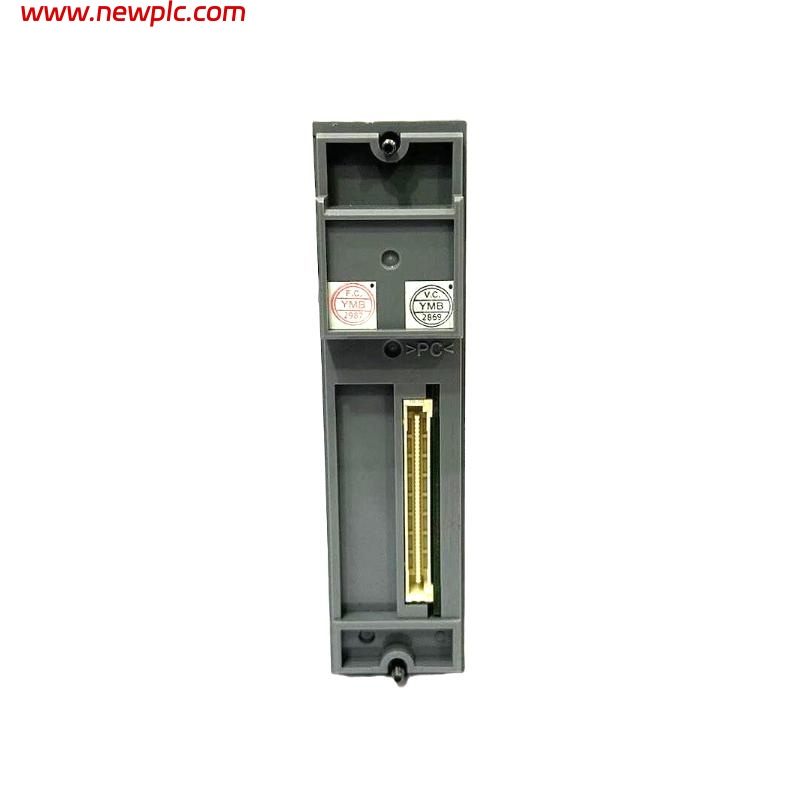

| Model | AAI143-S50/A4S10 |
| Type | Analog Input Module (Isolated) |
| Input Channels | 16 channels |
| Input Signal | 4 to 20 mA DC |
| Input Resistance (Power ON) | 270 Ω (at 20 mA) to 350 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or larger |
| Allowable Input Current | 24 mA |
| Withstanding Voltage | 1500 V AC between input and system, 1 minute |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Step Response Time | 100 ms |
| Transmitter Power Supply | 19.0 V (at 20 mA), 25.5 V max (at 0 mA), limited to 25 mA |
| 2-wire/4-wire Setting | Per channel via setting pin |
| Temperature Drift | ±16 µA/10°C |
| Max. Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Communication | Pressure clamp terminal, MIL connector cable, KS1 cable |
| HART Communication | Available |
| Dimensions (W × D × H) | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What type of input signal does the AAI143-S50/A4S10 module support?
A1: It supports 4 to 20 mA DC current input signals.
Q2: Is the input channel isolated?
A2: Yes, the AAI143 module provides isolation between input channels and the system.
Q3: What is the input accuracy of the module?
A3: The accuracy is ±16 µA.
Q4: Does the module support HART communication?
A4: Yes, HART communication is supported when installed in a compatible ER bus node unit.
Q5: Can each channel be configured individually for 2-wire or 4-wire transmitters?
A5: Yes, each channel supports independent setting via configuration pins.
Q6: What is the input resistance when the power is off?
A6: The input resistance is 500 kΩ or more when the power is off.
Q7: What is the maximum input current allowed?
A7: The module allows up to 24 mA of input current.
Q8: What are the dimensions and weight of the module?
A8: The module measures 107.5 × 32.8 × 130 mm and weighs 0.3 kg.
