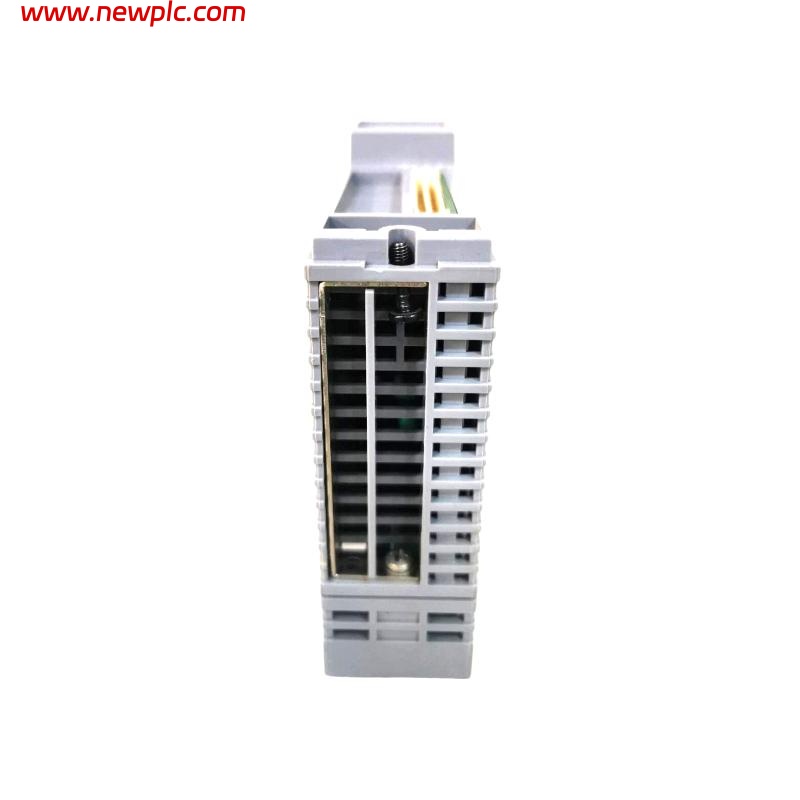

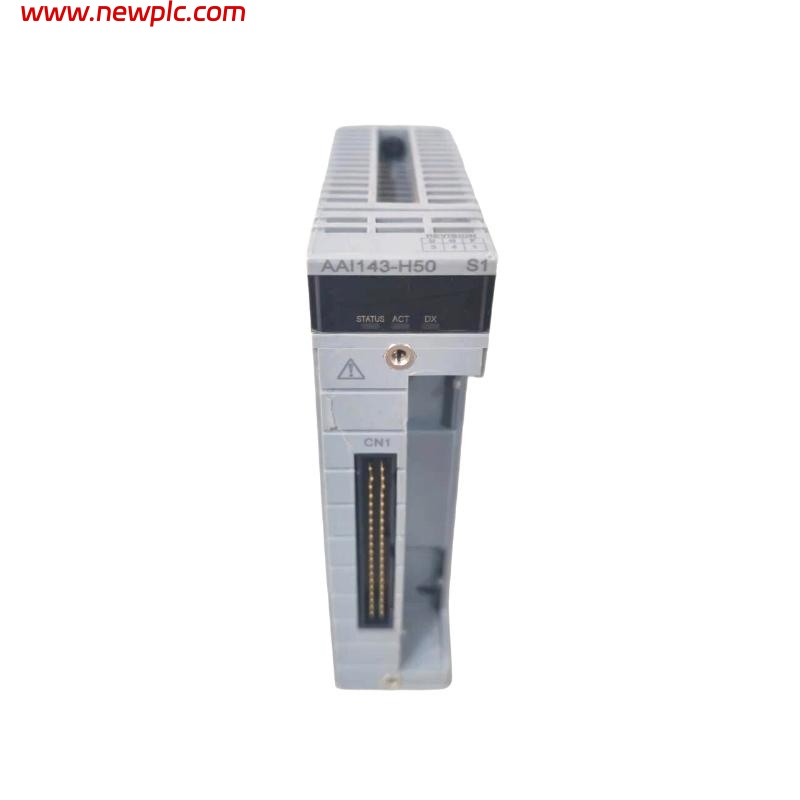

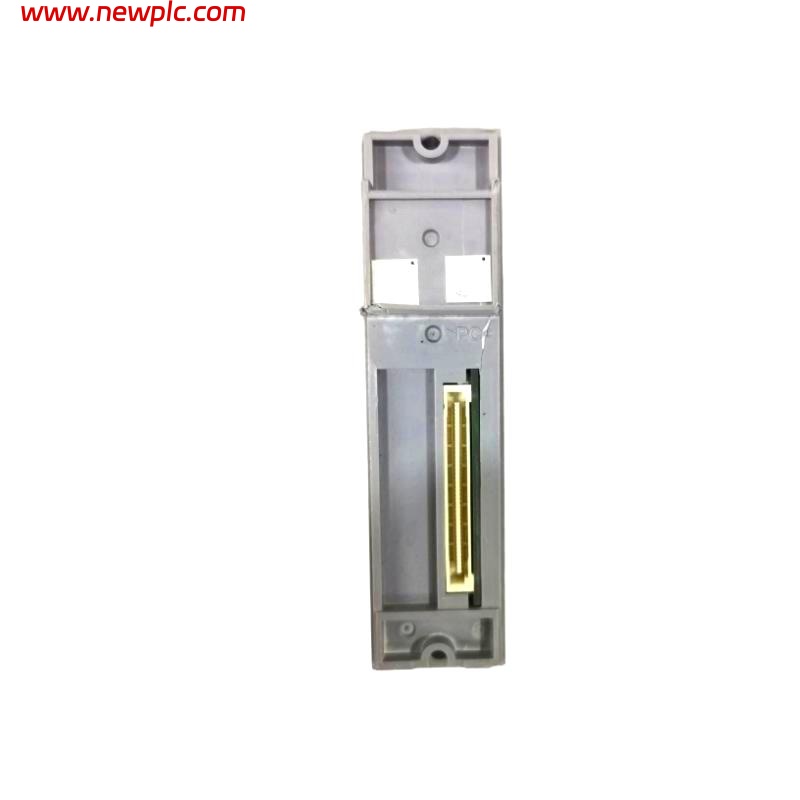

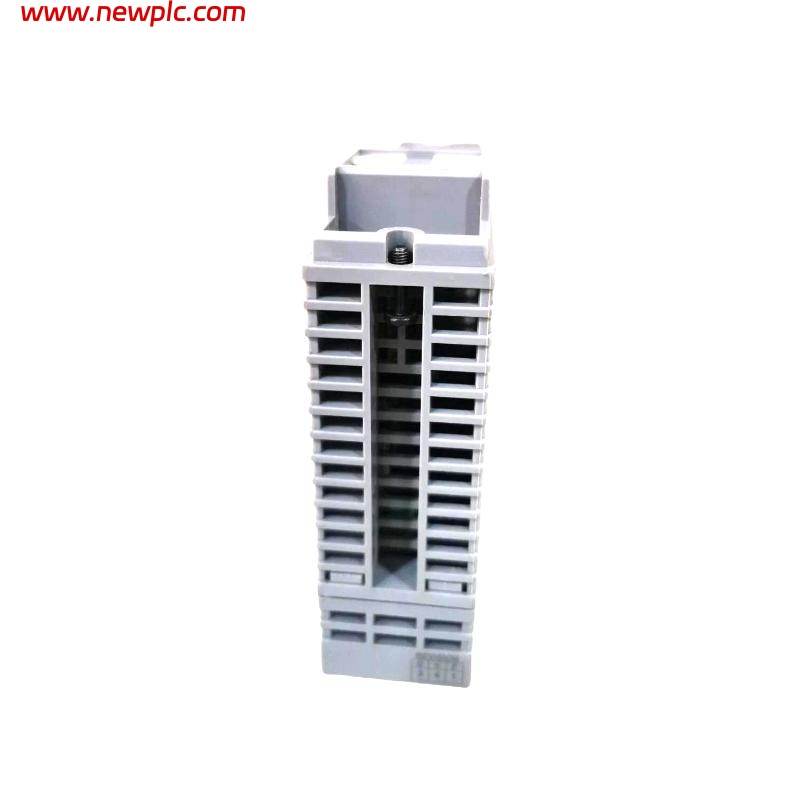

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-S50/ATA4S-00 |
| Type | Analog Input Module |
| Input Channels | 16 (isolated) |
| Input Signal | 4 to 20 mA |
| Allowable Input Current | 24 mA |
| Withstanding Voltage | 1500 V AC (between input and system, 1 min) |
| Input Resistance (Power ON) | 270 Ω (20 mA) to 350 Ω (4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or more |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 19.0 V or higher (at 20 mA), 25.5 V or less (at 0 mA), current limit: 25 mA |
| 2-wire / 4-wire Support | Selectable per channel using pin setting |
| Temperature Drift | ±16 µA/10 °C |
| Max. Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Connection | Pressure clamp terminal, MIL connector cable, KS1 dedicated cable |
| HART Communication | Supported |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What is the main function of the AAI143-S50/ATA4S-00 module?
A1: It functions as a 16-channel isolated analog input module for receiving 4 to 20 mA signals from field instruments.
Q2: Does the module support HART communication?
A2: Yes, it supports HART communication when used with compatible ER bus node units and firmware version EB401 Rev. 2 or later.
Q3: Can it be used with 2-wire and 4-wire transmitters?
A3: Yes, each channel can be configured individually for 2-wire or 4-wire transmitters using pin settings.
Q4: What is the isolation level between the input and system?
A4: The module provides a 1500 V AC isolation for one minute between the input and the system.
Q5: What is the input resistance when powered on?
A5: The input resistance ranges from 270 Ω (at 20 mA) to 350 Ω (at 4 mA) when powered on.
Q6: What is the physical size of the module?
A6: The dimensions of the module are 107.5 × 32.8 × 130 mm.
Q7: How much current does the module consume?
A7: It consumes 230 mA at 5 V DC and 540 mA at 24 V DC.
Q8: What kind of terminal block does ATA4S-00 refer to?
A8: ATA4S-00 refers to a pressure clamp terminal block designed for analog signals.
