Technical Specifications
| Parameter | Specification |
|---|---|

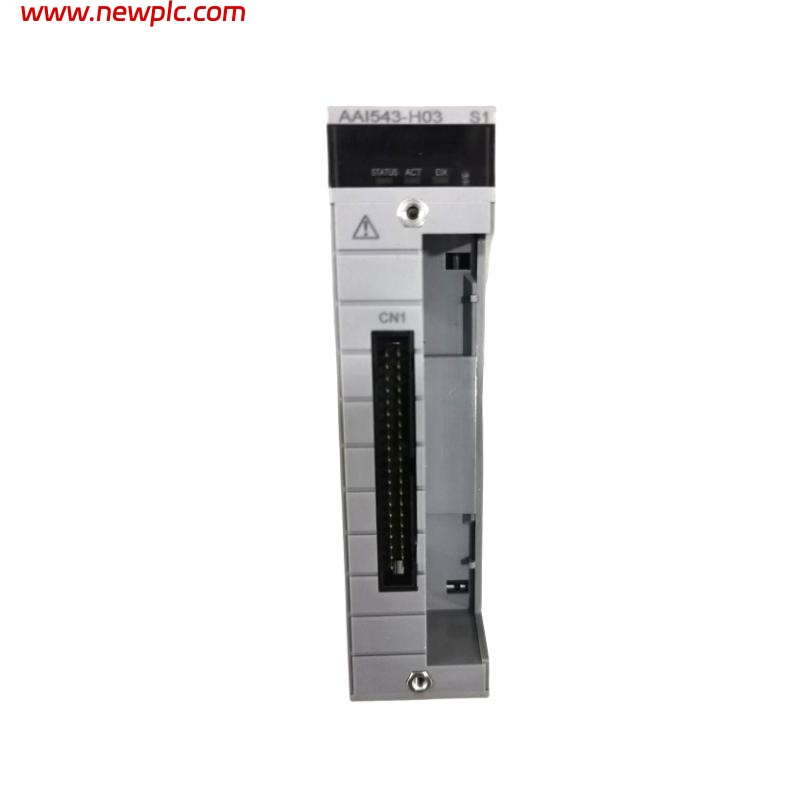

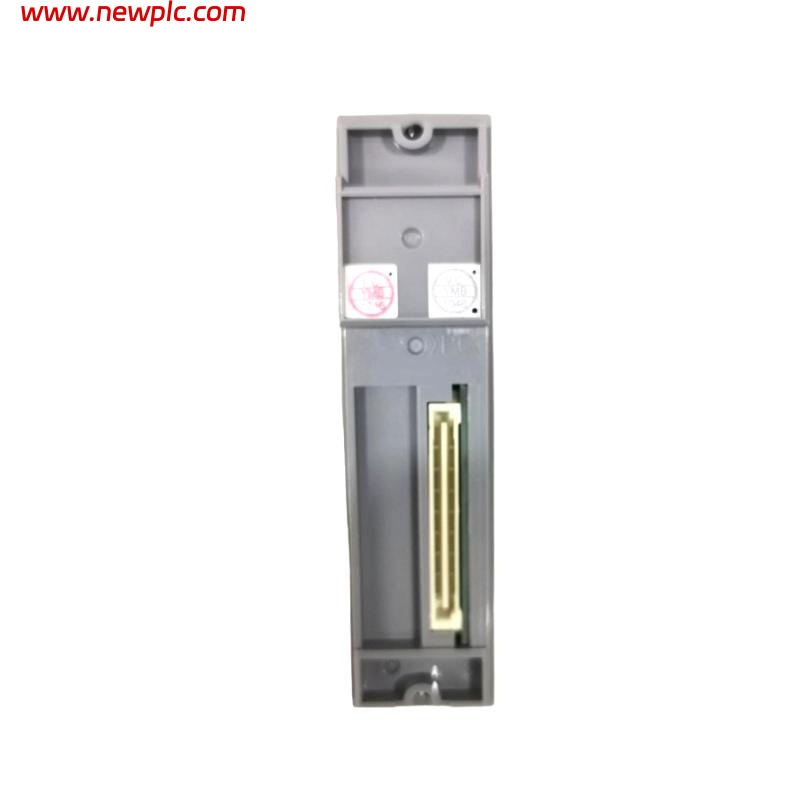

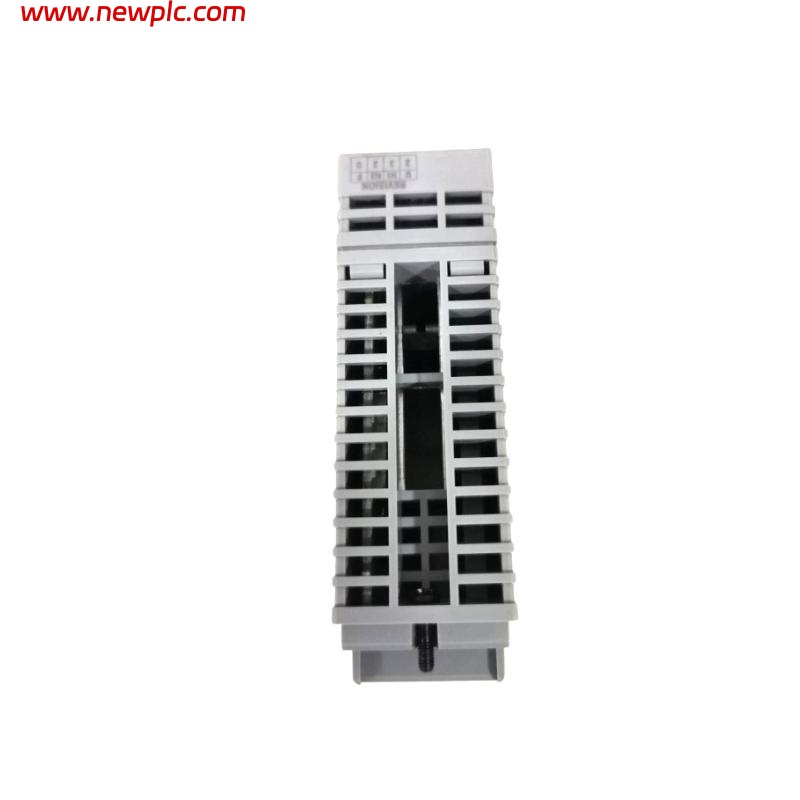

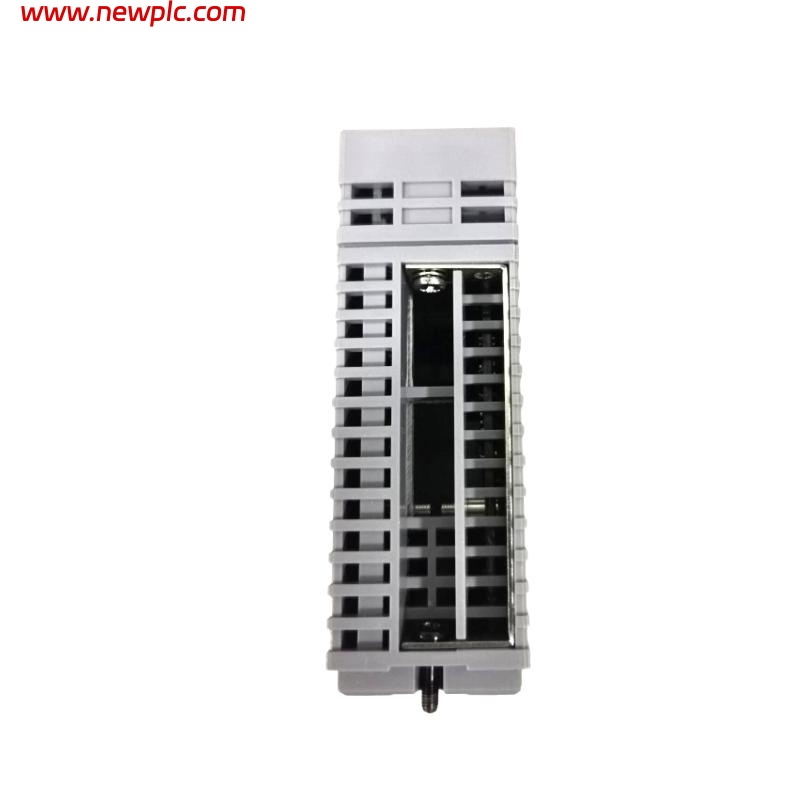

| Model | AAI543-H03/K4A00 |
| Output Channels | 16 channels, isolated |
| Output Signal | 4 to 20 mA |
| Redundant Configuration | Supported (standard or fast switch-over) |
| Withstanding Voltage | 1500 V AC (between output and system, 1 minute) |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit Open Detection | < 0.65 mA |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Temperature Drift | ±16 µA/10°C |
| Max. Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Connections | Pressure clamp terminal, MIL connector cable, KS1 dedicated cable |
| HART Communication | Supported (requires EB401 firmware rev. 2 or later in ER bus node units) |
| Dimensions (W × H × D) | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: What output signal does the AAI543-H03/K4A00 support?
A1: It supports 4 to 20 mA analog current output signals.
Q2: Is redundant configuration supported?
A2: Yes, both standard and fast switchover redundancy are supported.
Q3: How does the circuit-open detection work?
A3: An open circuit is detected when output current drops below 0.65 mA.
Q4: Is the module electrically isolated?
A4: Yes, it provides 1500 V AC isolation between the output and system.
Q5: Does the module support HART communication?
A5: Yes, HART is supported when used with an ER bus node and EB401 firmware version 2 or higher.
Q6: What are the physical dimensions and weight?
A6: The dimensions are 107.5 × 32.8 × 130 mm, and the weight is 0.4 kg.
Q7: What types of external connections are compatible?
A7: It supports pressure clamp terminals, MIL connector cables, and KS1 dedicated cables.
Q8: What is the allowable load resistance range?
A8: The module supports a load resistance range of 0 to 750 ohms.
