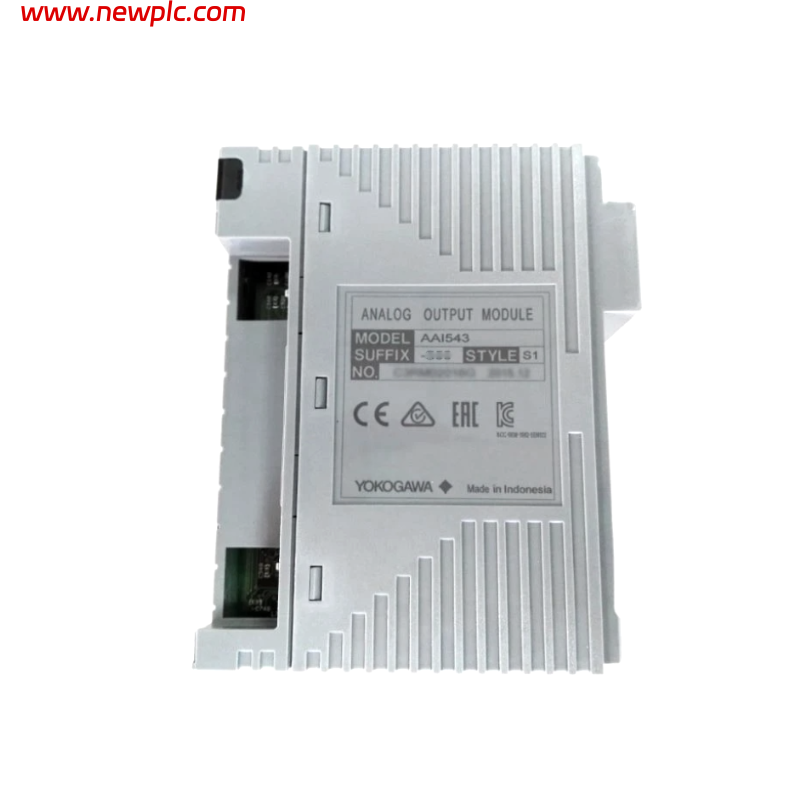

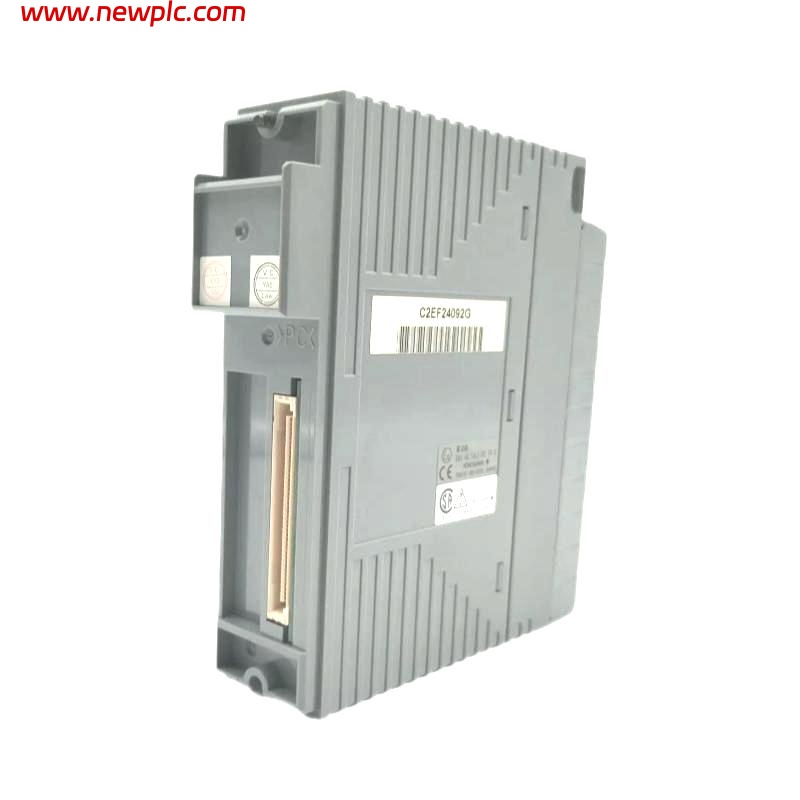

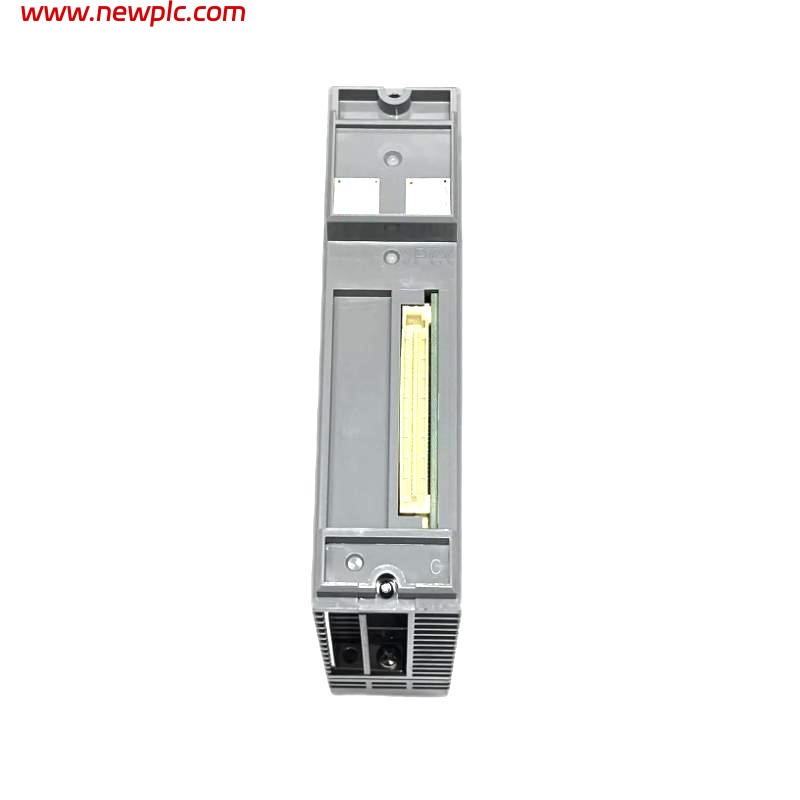

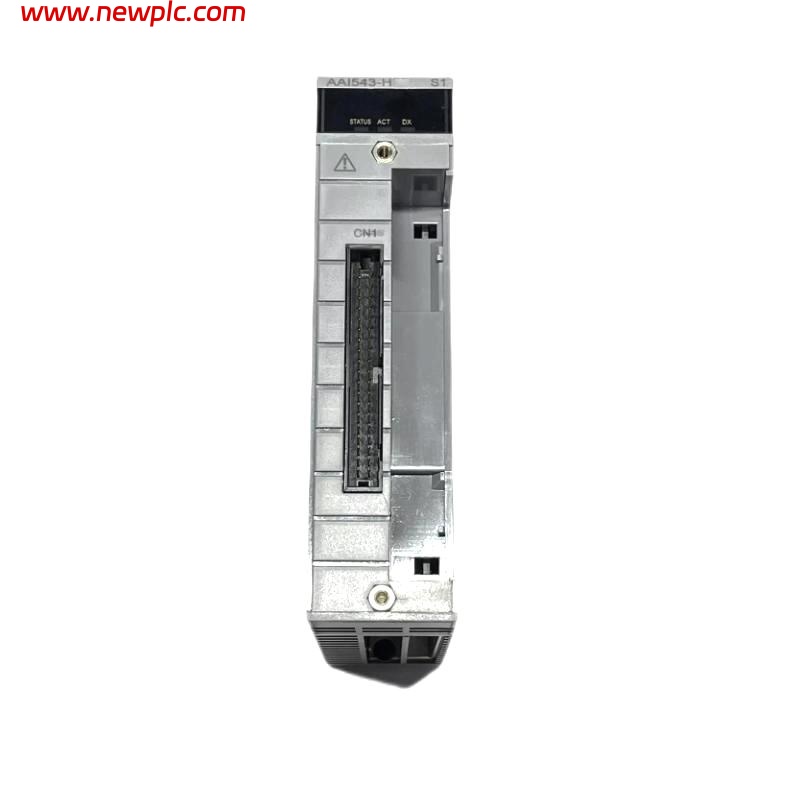

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543-H50/A4D00 |
| Type | Analog Output Module (Isolated, with HART) |
| Number of Output Channels | 16 (isolated channels) |
| Output Signal | 4 to 20 mA DC |
| Withstanding Voltage | 1500 V AC (between output and system, 1 minute) |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-Open Detection | Less than 0.65 mA |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Ambient Temperature Drift | ±16 µA / 10°C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| HART Communication | Supported (requires compatible node and firmware) |
| External Connection | Pressure clamp terminal, MIL connector, KS cable |
| Redundant Configuration Support | Yes (standard switch-over) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: What type of output signal does the module support?
A1: It supports 4 to 20 mA DC analog output signals.
Q2: Is the module output isolated?
A2: Yes, each channel is electrically isolated.
Q3: Does the module support redundant configuration?
A3: Yes, it supports standard switch-over in redundant setups.
Q4: Is HART communication available?
A4: Yes, HART communication is supported when installed in compatible node units with EB401 firmware rev.2 or later.
Q5: What is the allowable load resistance for the output?
A5: The allowable load resistance is 0 to 750 ohms.
Q6: What is the output accuracy of the module?
A6: The accuracy is ±48 microamperes.
Q7: What are the dimensions and weight of the module?
A7: Dimensions are 107.5 × 32.8 × 130 mm and weight is 0.4 kg.
Q8: Will the output drop during redundant switchover?
A8: In standard switchover mode, the output may momentarily drop below 4 mA for a maximum of 100 ms.
