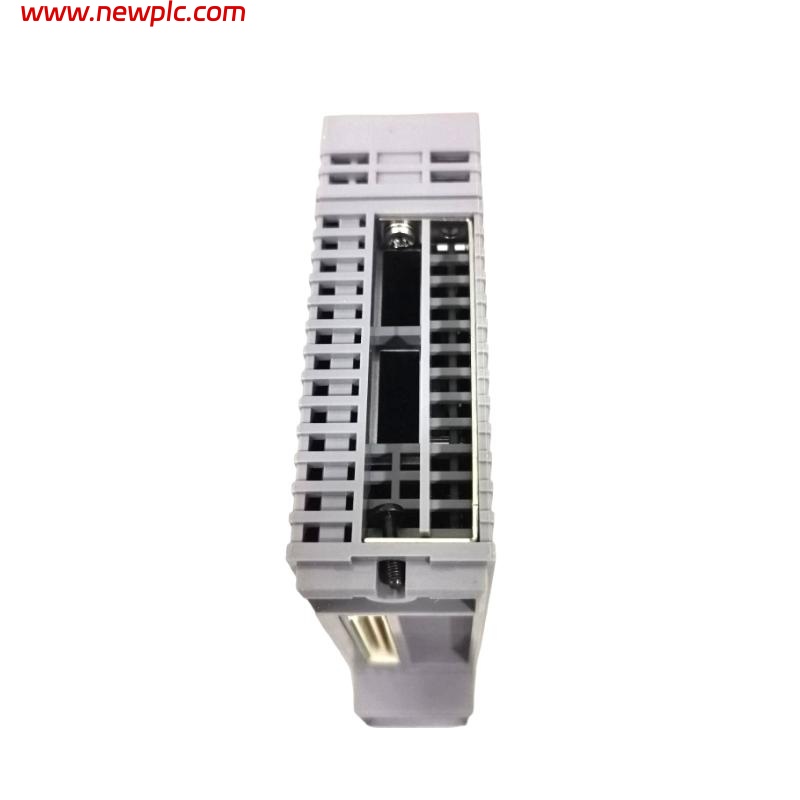

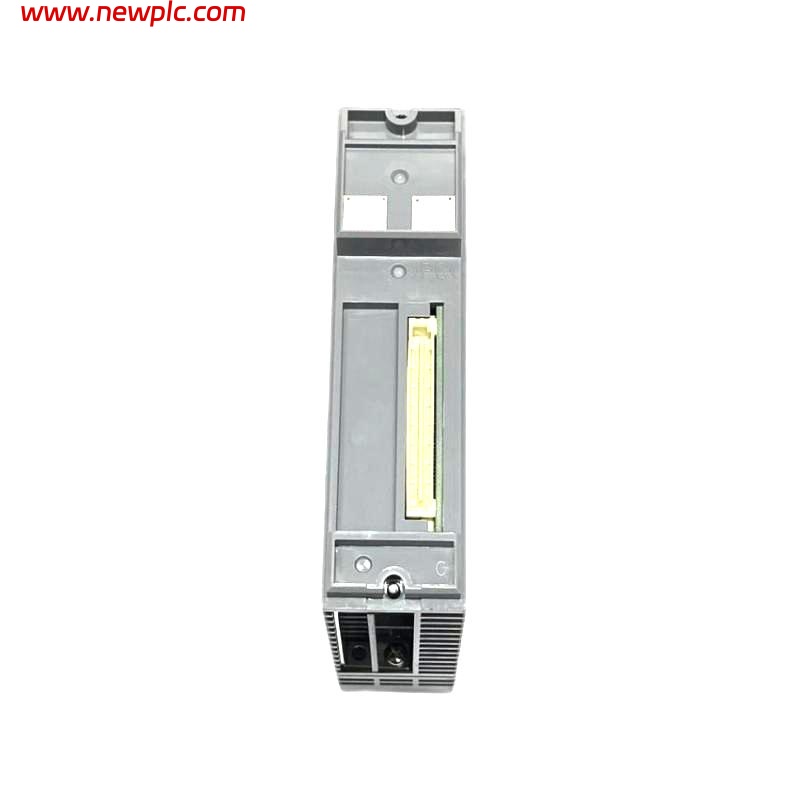

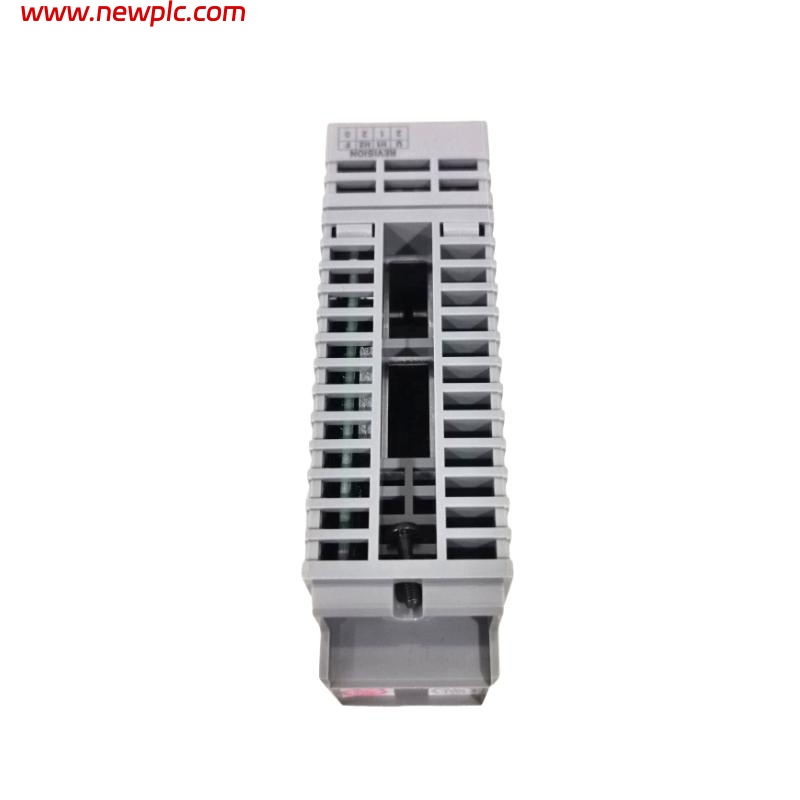

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543-H50/ATA4S-00 |
| Output Channels | 16, isolated |
| Output Signal | 4 to 20 mA |
| Withstanding Voltage | 1500 V AC (between output and system, 1 minute) |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-Open Detection | Less than 0.65 mA |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Temperature Drift | ±16 µA/10°C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| HART Communication | Supported (HART Protocol Revision 5.7) |
| External Connection | Pressure clamp terminal (ATA4S-00), MIL connector cable, KS cable |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: Does the AAI543-H50 support redundant configuration?
A1: Yes, it supports dual-redundant configuration with standard or fast switchover response.
Q2: Is HART communication available on the AAI543-H50?
A2: Yes, HART protocol is supported, with up to 16 connected HART devices.
Q3: What is the output accuracy of the AAI543-H50?
A3: The output accuracy is ±48 µA.
Q4: What is the allowable load resistance range?
A4: It supports a load resistance range of 0 to 750 ohms.
Q5: What is the isolation voltage between output and system?
A5: The module withstands 1500 V AC for 1 minute between output and system.
Q6: What is the operating temperature range of the module?
A6: The standard model supports operation within 0 to 70°C.
Q7: What is the circuit-open detection current threshold?
A7: The detection threshold is less than 0.65 mA.
Q8: Which systems are compatible with the AAI543-H50?
A8: Compatible with field control stations such as AFV30S/D, AFV40S/D, AFV10S/D, and AFF50S/D.
