Technical Specifications
| Parameter | Specification |
|---|---|

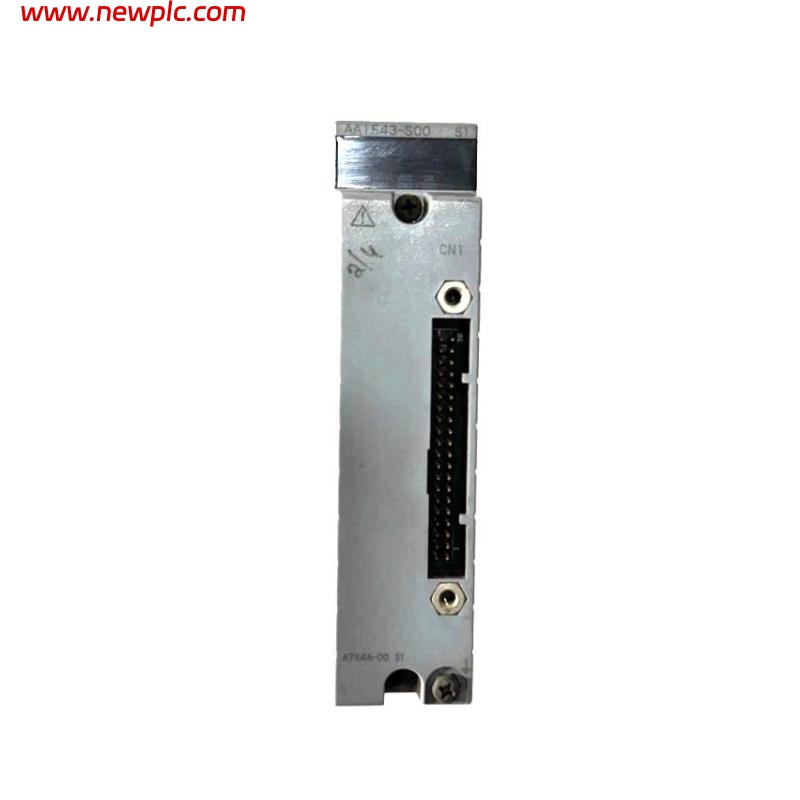

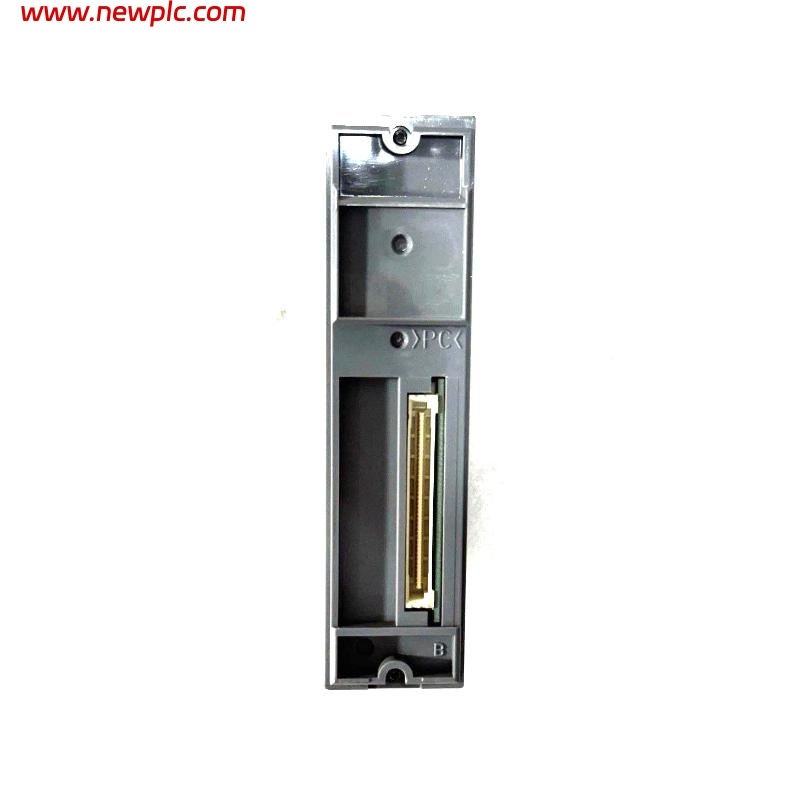

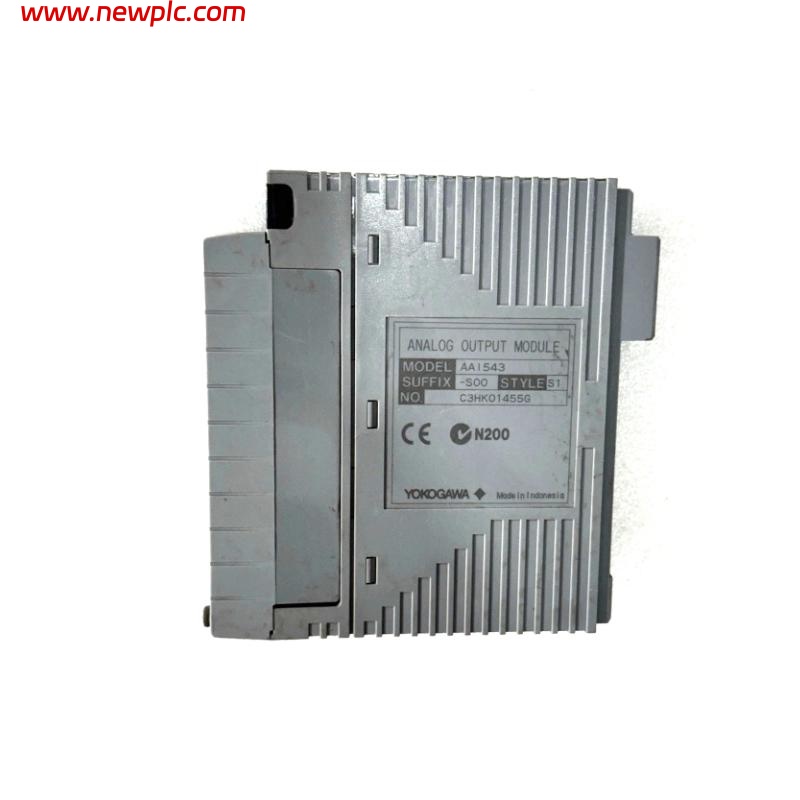

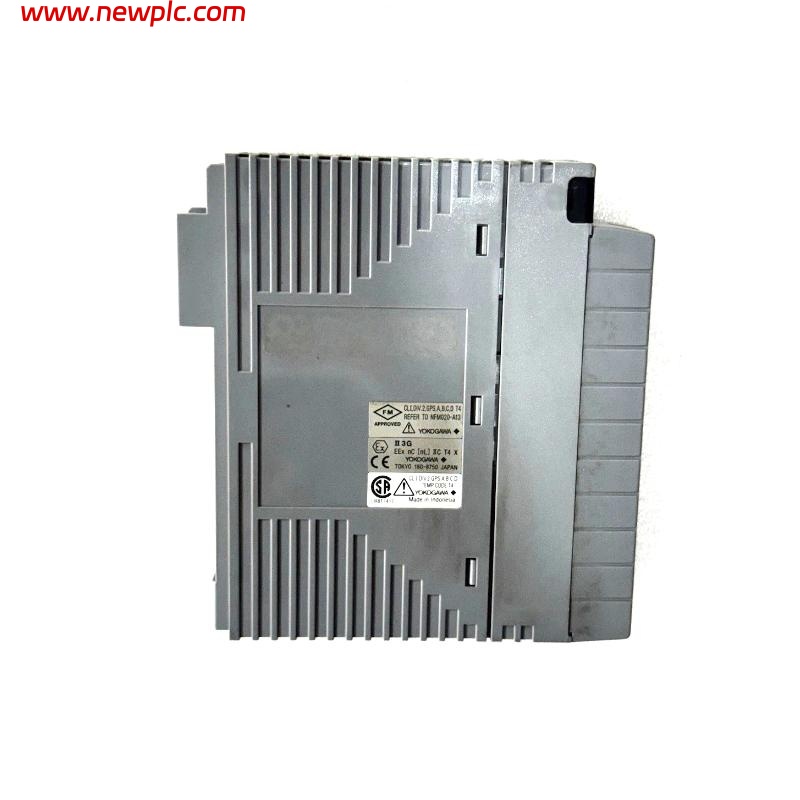

| Model | Yokogawa AAI543-S00/K4A00 Analog Output Module (for FIO) |
| Output Channels | 16, isolated |
| Output Signal | 4 to 20 mA |
| Withstanding Voltage | Between output and system: 1500 V AC, for 1 minute |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-Open Detection | Less than 0.65 mA |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Temperature Drift | ±16 µA/10°C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Connection | Pressure clamp terminal, MIL connector cable, dedicated cable (KS1) |
| HART Communication | Available |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: What is the primary function of the Yokogawa AAI543-S00/K4A00 module?
A1: It outputs isolated 4 to 20 mA analog signals to field devices in process control systems.
Q2: How many output channels does this module have?
A2: It has 16 isolated output channels.
Q3: What is the allowable load resistance range for this module?
A3: The allowable load resistance is from 0 to 750 Ω.
Q4: Does the module support HART communication?
A4: Yes, it supports HART communication when connected to compatible systems.
Q5: What is the accuracy of the output signals?
A5: The output accuracy is ±48 µA.
Q6: Can this module be used in a redundant configuration?
A6: Yes, it supports dual-redundant configurations for improved reliability.
Q7: What is the data update period for the output signals?
A7: The data update period is 10 ms.
Q8: What is the withstanding voltage rating of this module?
A8: It can withstand 1500 V AC between output and system for 1 minute.
