Technical Specifications
| Parameter | Specification |
|---|---|

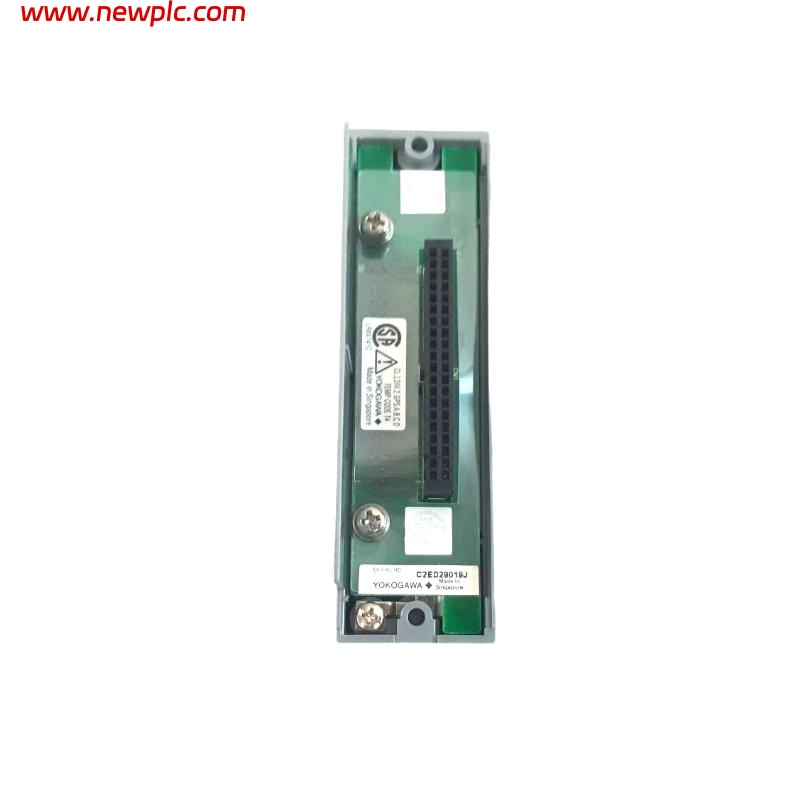

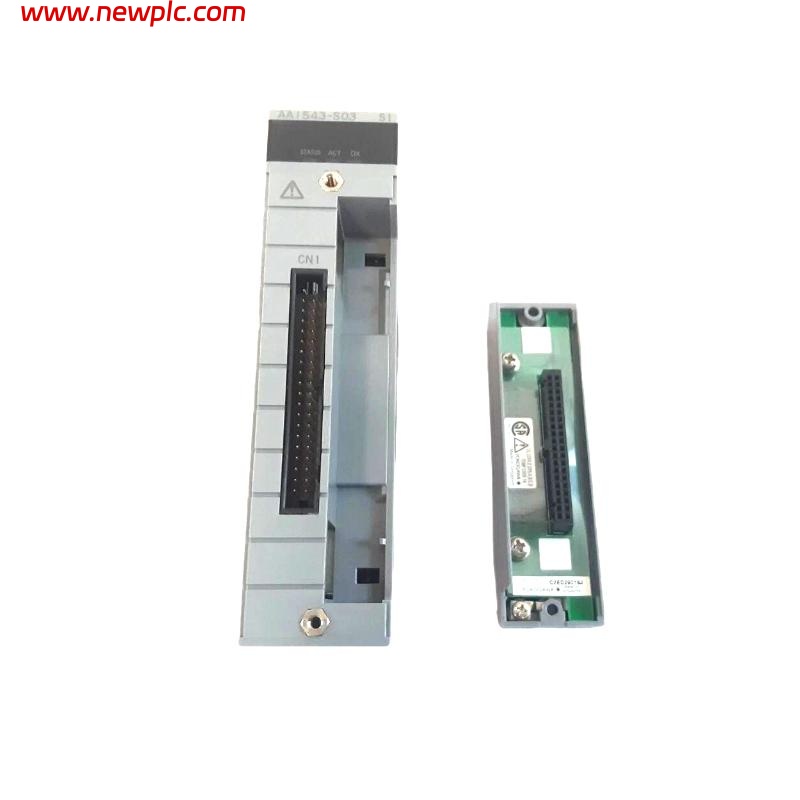

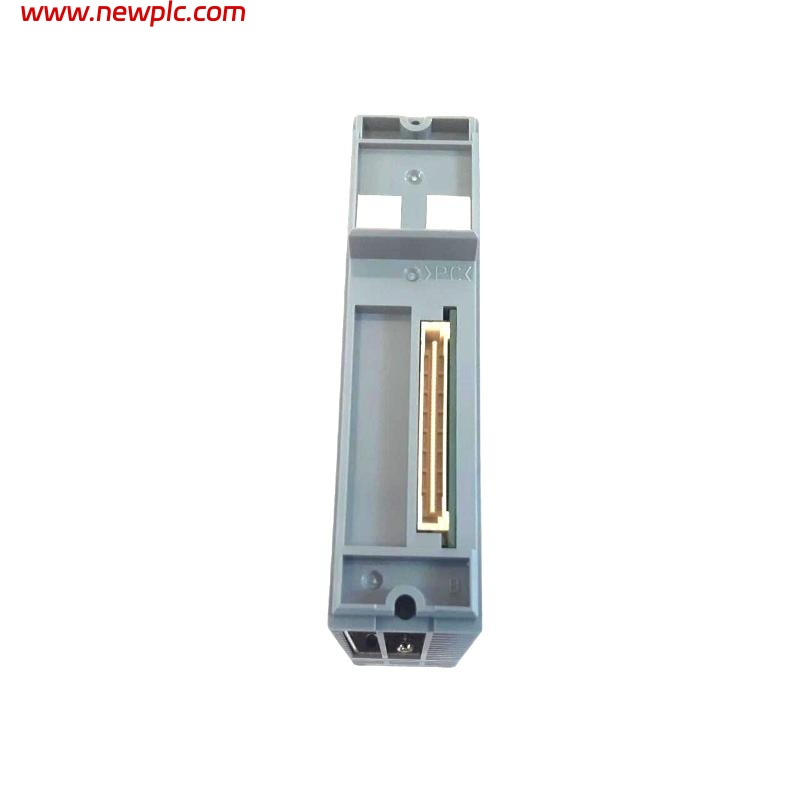

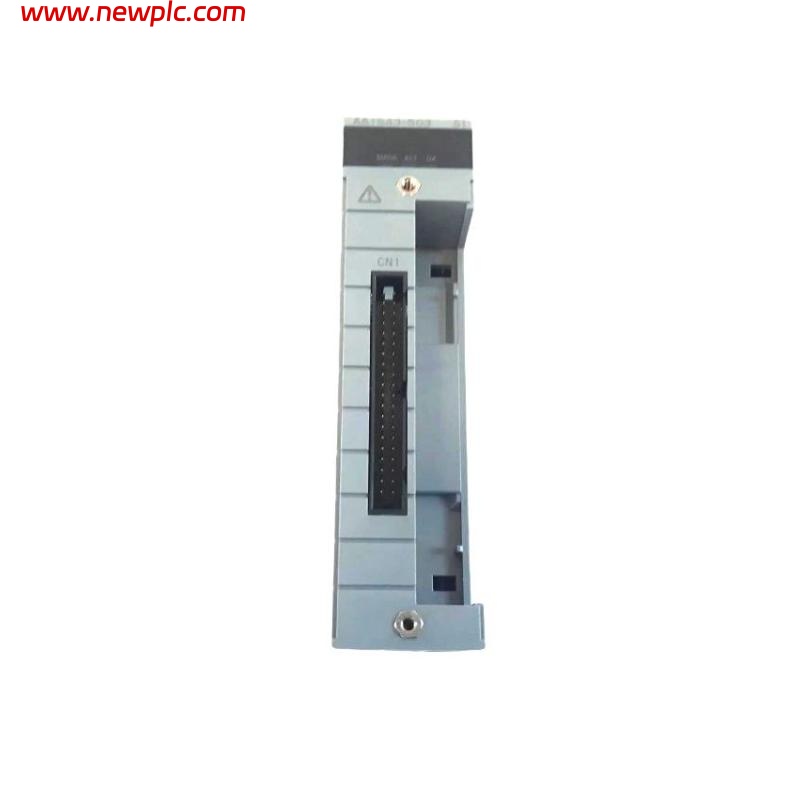

| Model | Yokogawa AAI543-S03 Analog Output Module (for FIO) |
| Number of Output Channels | 16, isolated |
| Output Signal | 4 to 20 mA |
| Withstanding Voltage | Between output and system: 1500 V AC, for 1 minute |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-open Detection | Less than 0.65 mA |
| Accuracy | ±48 μA |
| Data Update Period | 10 ms |
| Drift due to Ambient Temperature Change | ±16 μA/10°C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Communication | Pressure clamp terminal, MIL connector cable, dedicated cable (KS1) |
| HART Communication | Available |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: What type of output signal does the AAI543-S03 provide?
A1: It provides a 4 to 20 mA DC isolated analog output.
Q2: How many output channels does the module have?
A2: The module has 16 isolated output channels.
Q3: What is the allowable load resistance for each channel?
A3: The allowable load resistance is 0 to 750 Ω.
Q4: Is HART communication supported?
A4: Yes, the module supports HART communication.
Q5: What is the accuracy of the output signal?
A5: The accuracy is ±48 μA.
Q6: What is the maximum current consumption of the module?
A6: The maximum current consumption is 230 mA at 5 V DC and 540 mA at 24 V DC.
Q7: What is the withstanding voltage specification?
A7: The module can withstand 1500 V AC between output and system for 1 minute.
Q8: What are the dimensions and weight of the module?
A8: The dimensions are 107.5 × 32.8 × 130 mm, and the weight is 0.4 kg.
