Technical Specifications
| Parameter | Specification |
|---|---|

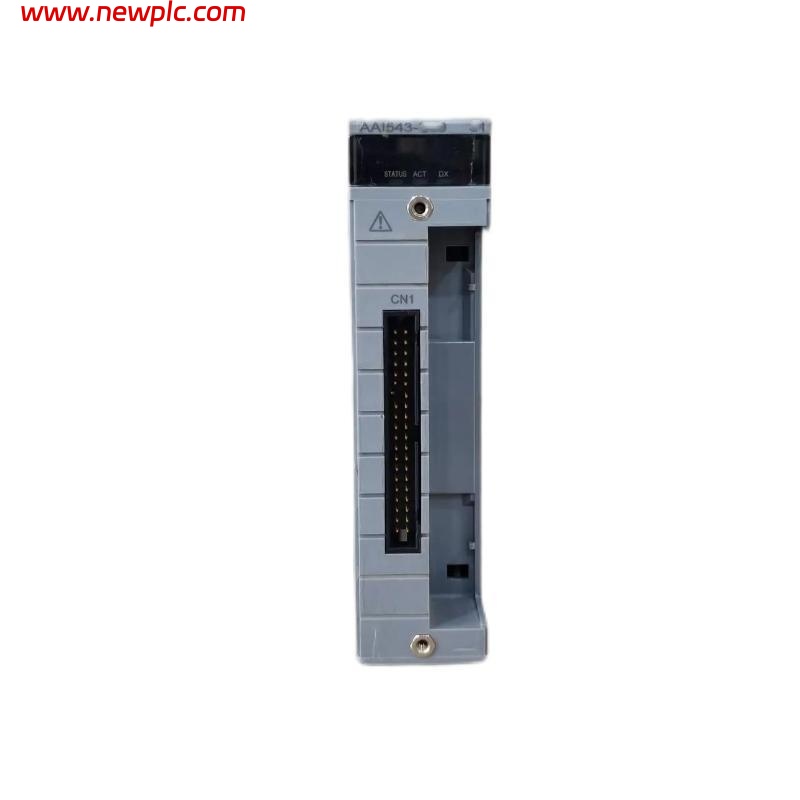

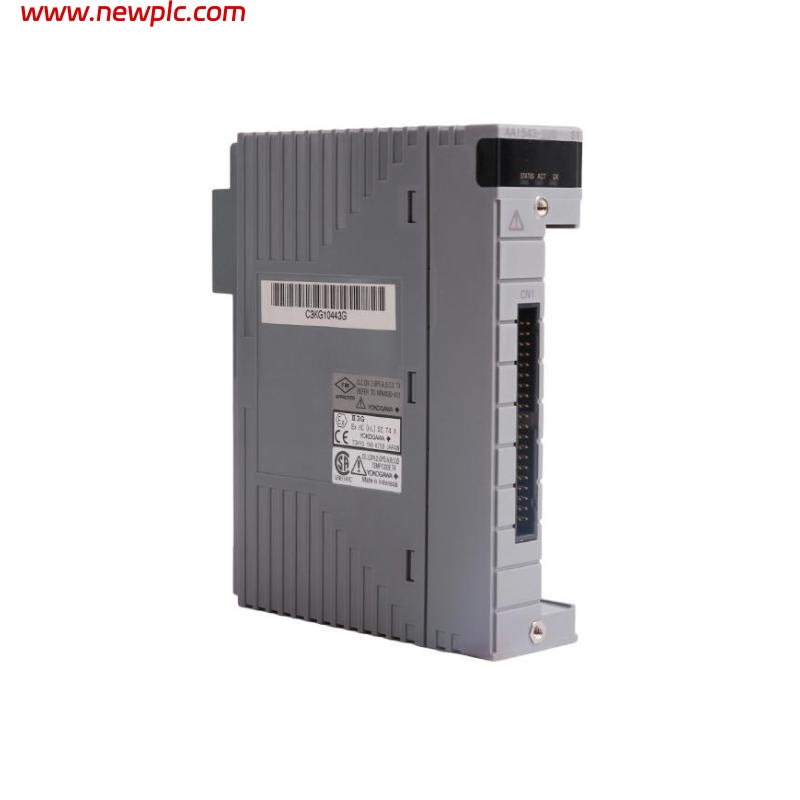

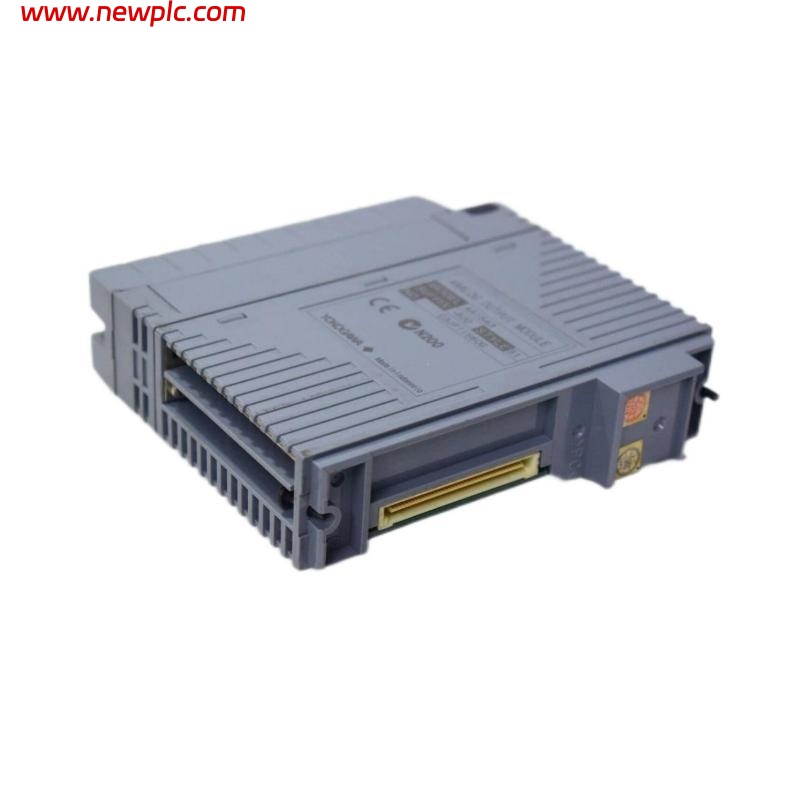

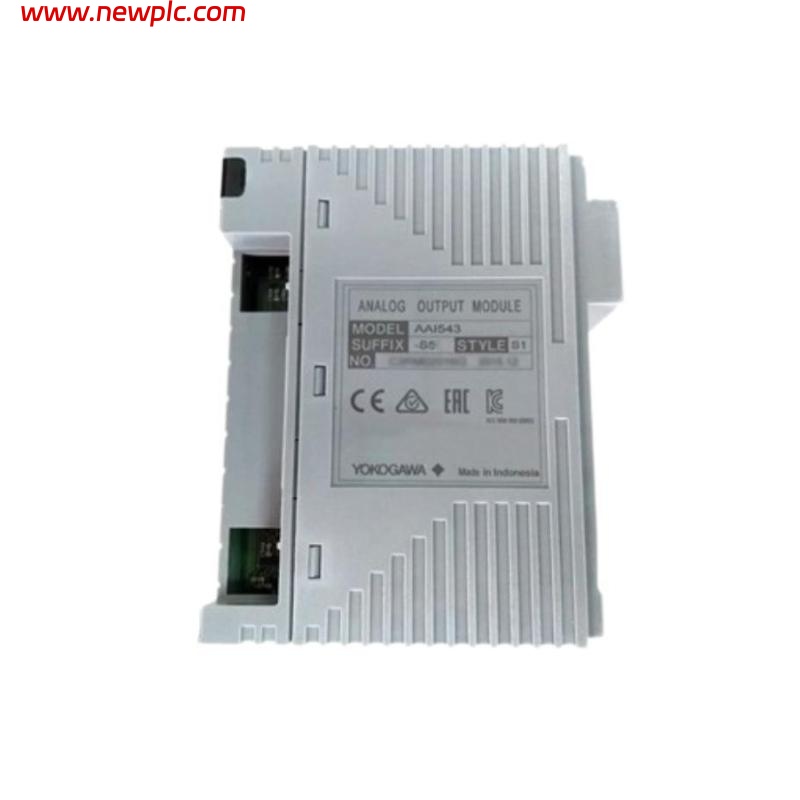

| Model | Yokogawa AAI543-S53 |
| Manufacturer | Yokogawa |
| Type | Analog Output Module |
| Number of Channels | 8 analog output channels |
| Output Signal Range | 4–20 mA or 1–5 V DC (configurable per channel) |
| Resolution | 16-bit DAC resolution |
| Accuracy | ±0.1% of full scale |
| Output Load | 600 Ω max for current output, 1 kΩ min for voltage output |
| Update Rate | 50 ms per channel (typical) |
| Power Supply Voltage | Supplied by the I/O bus from the base unit |
| Power Consumption | Approx. 5 W |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
| Mounting | Mounted on the I/O base unit |
| Certification | CE, CSA, KC compliant |
| Application | Industrial process control output in DCS systems |
FAQ
FAQ
1. What is the function of the Yokogawa AAI543-S53 module?
It provides precise analog output signals for process control systems.
2. How many output channels does it support?
It supports 8 analog output channels.
3. What output signal ranges are available?
4–20 mA current or 1–5 V DC voltage, configurable per channel.
4. What is the resolution of the outputs?
It has a 16-bit DAC resolution for high accuracy.
5. Does it need an external power supply?
No, power is supplied via the I/O bus from the base unit.
6. What are the environmental conditions for operation?
Operates from 0 °C to +50 °C, with 5–95% non-condensing humidity.
7. What is the maximum output load?
Up to 600 Ω for current output, minimum 1 kΩ for voltage output.
8. Which systems is it compatible with?
Compatible with Yokogawa CENTUM VP and CS 3000 DCS platforms.
