Technical Specifications
| Parameter | Specification |
|---|---|

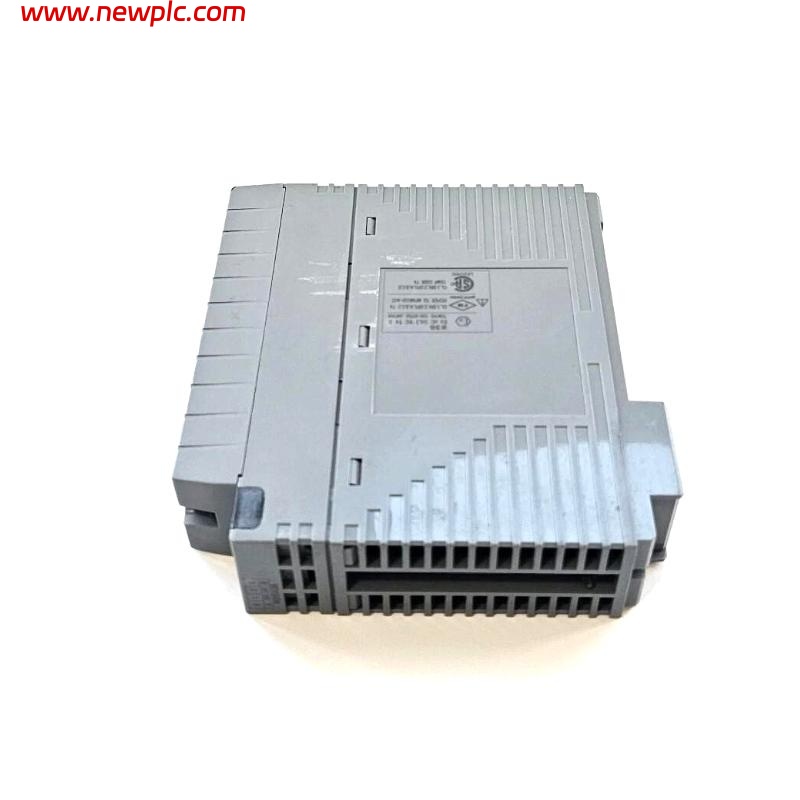

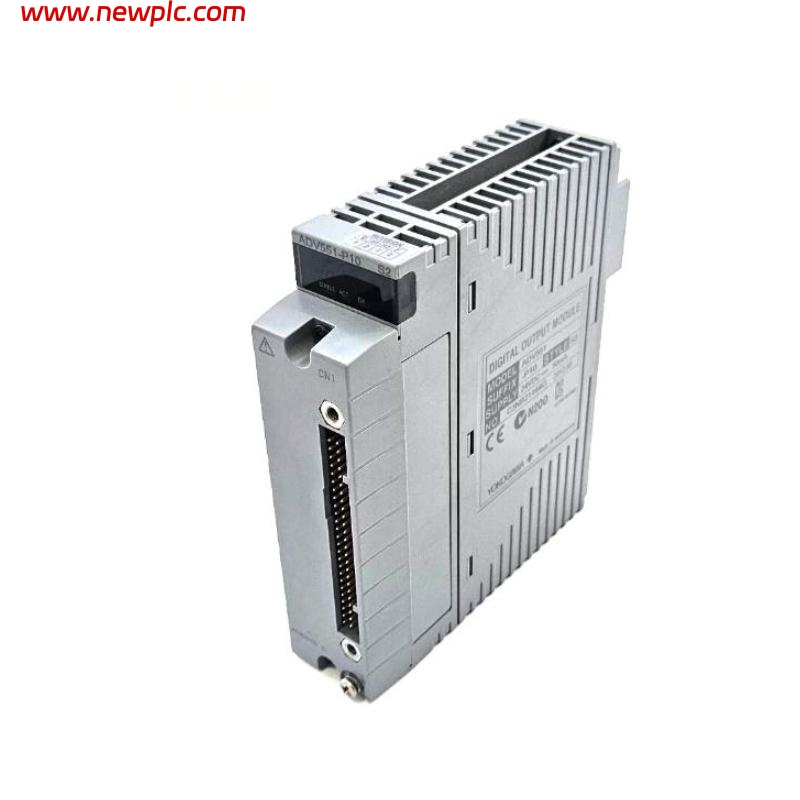

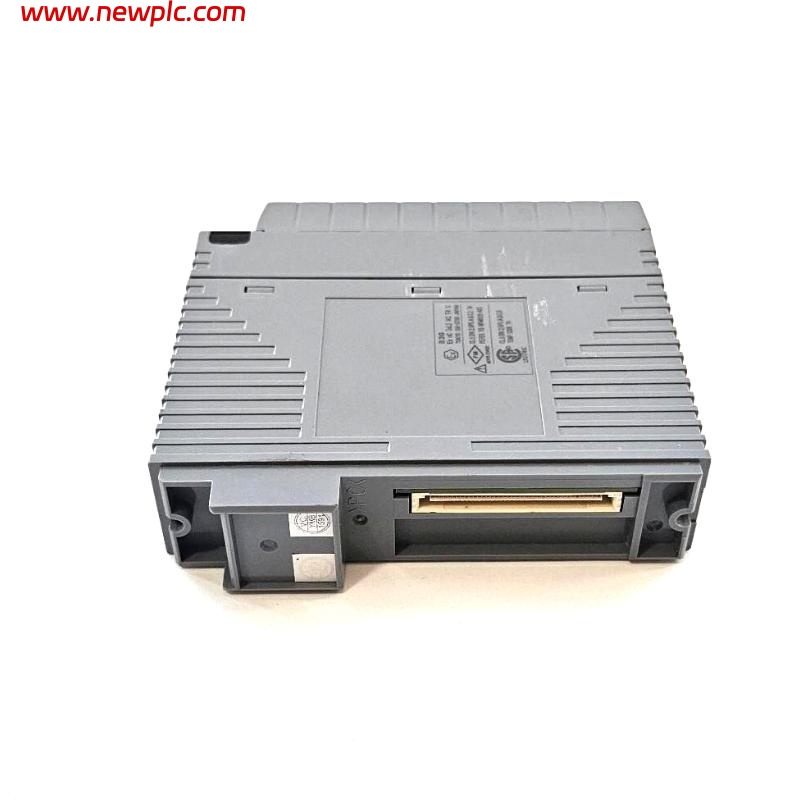

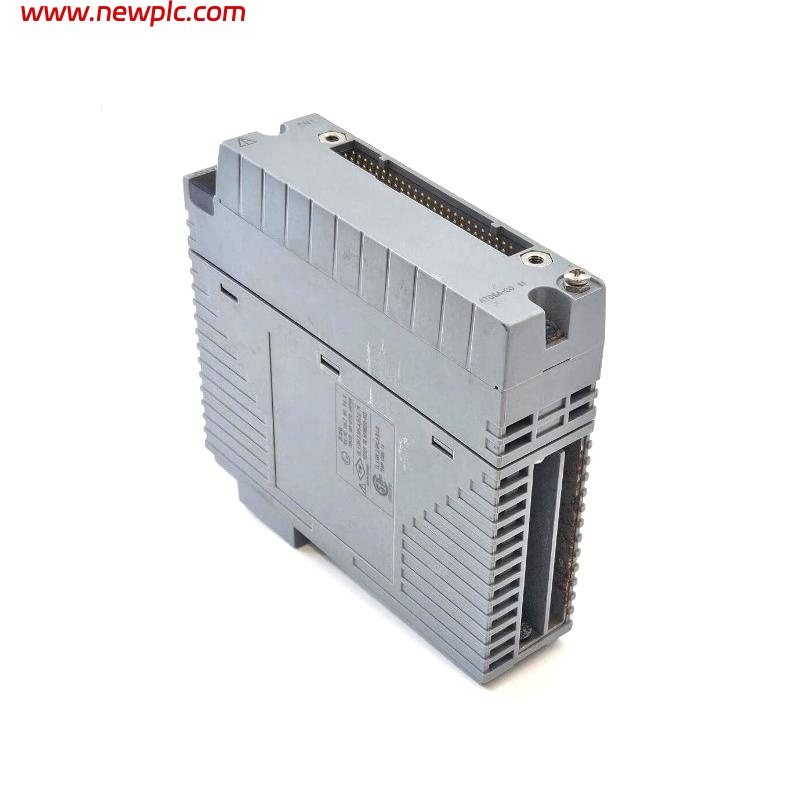

| Model | ADV551-P10 S2 Digital Output Module |
| Number of Output Channels | 32 |
| Rated Applied Voltage | 24 V DC |
| External Power Supply Rating | 24 V DC, 50 mA |
| External Power Supply Voltage Range | 20.4 to 26.4 V DC |
| Output ON Voltage (Max) | 2 V DC |
| Leak Current (Max, Output OFF) | 0.1 mA |
| Output Format | Current sink |
| Maximum Load Current | 100 mA/channel, 26.4 V |
| Withstanding Voltage | Between output signal and system: 2 kV AC (1 min)；Between commons: 500 V AC (1 min, common – side every 16-channel) |
| Functions | ON/OFF status output, one-shot pulse width output, time-proportioning ON/OFF |
| Output Response Time | ≤ 3 ms (status output), ≤ 10 ms (mixed status and pulse outputs) |
| Pulse Width Range | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms (with max. 1 ms ON/OFF delay) |
| Maximum Current Consumption | 700 mA (5 V DC), 60 mA (external power supply) |
| External Connection | Pressure clamp terminal, dedicated cable (AKB331), MIL connector cable |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: What type of module is the ADV551-P10 S2?
A1: It is a 32-channel, 24 V DC isolated digital output module.
Q2: What is its output format?
A2: It uses a current sink output format.
Q3: What is the maximum load current?
A3: 100 mA per channel at 26.4 V.
Q4: What is the output response time?
A4: 3 ms or less for status output, and 10 ms or less for mixed status and pulse outputs.
Q5: What output functions are supported?
A5: ON/OFF status output, one-shot pulse width output, and time-proportioning ON/OFF output.
Q6: What are the external power requirements?
A6: Rated at 24 V DC, 50 mA, with a voltage range of 20.4 to 26.4 V DC.
Q7: What are its dimensions and weight?
A7: Dimensions are 107.5 × 130 × 32.8 mm, weight is approximately 0.2 kg.
Q8: What external connection methods are available?
A8: Pressure clamp terminal, dedicated cable (AKB331), or MIL connector cable.
