Technical Specifications
| Parameter | Specification |
|---|---|

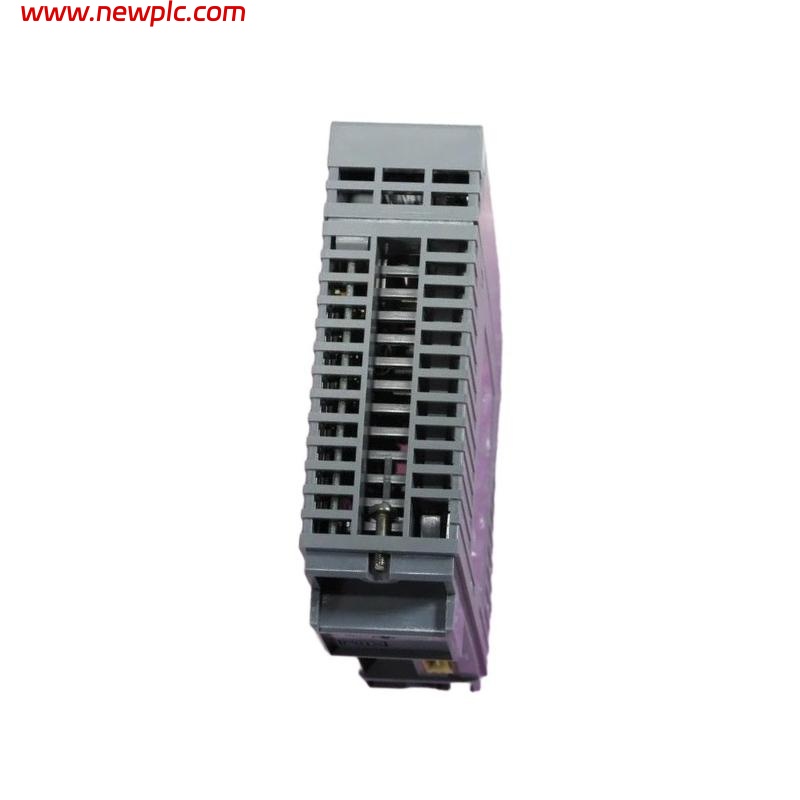

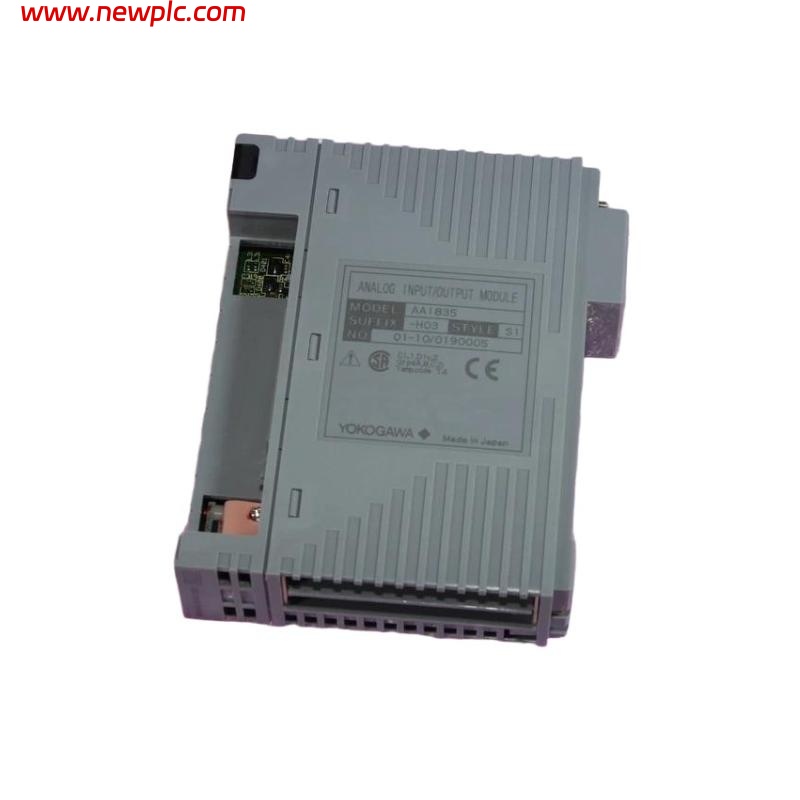

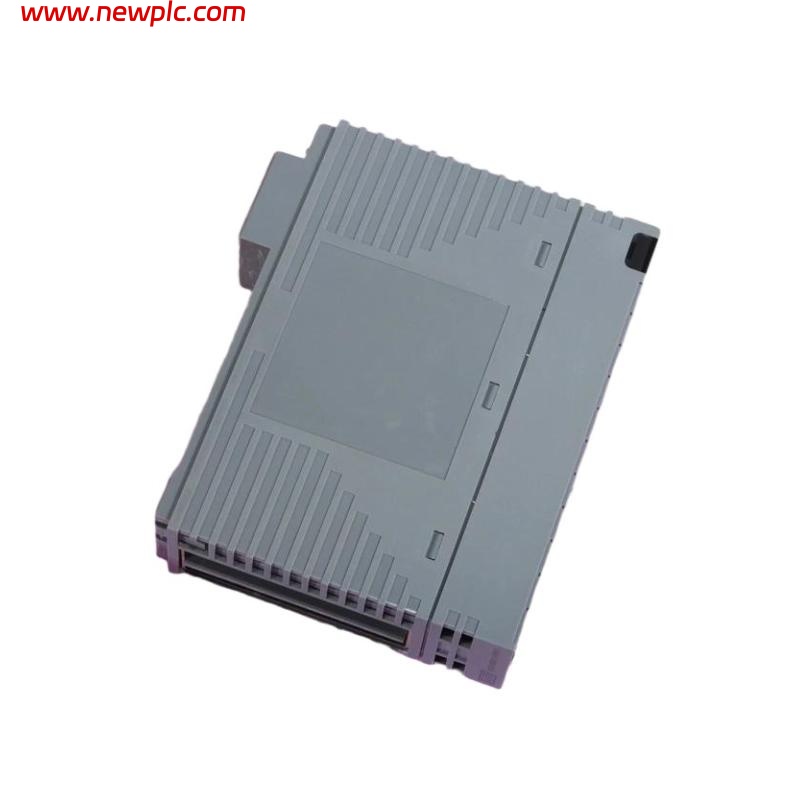

| Model | Yokogawa AAI835-H03/K4A00 |
| Manufacturer | Yokogawa |
| Type | Analog I/O Module |
| Number of Input Channels | 16 isolated analog input channels |
| Number of Output Channels | 8 analog output channels |
| Input Signal Type | 4–20 mA current or 1–5 V DC voltage (configurable) |
| Output Signal Type | 4–20 mA current or 1–5 V DC voltage (configurable) |
| Input Resolution | 16-bit |
| Output Resolution | 16-bit DAC |
| Accuracy | ±0.1% full scale (input and output) |
| Input Isolation | Channel-to-channel and channel-to-ground isolation |
| Input Impedance | ≥250 Ω (current), ≥1 MΩ (voltage) |
| Output Load | 600 Ω max (current), 1 kΩ min (voltage) |
| Sampling Rate | 100 ms per channel (input), 50 ms per channel (output) |
| Power Supply Voltage | Supplied by I/O bus from base unit |
| Power Consumption | Approx. 8 W |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
| Mounting | Mounted on I/O base unit |
| Certification | CE, CSA, KC compliant |
| Application | Industrial process control and monitoring in DCS systems |
FAQ
FAQ
1. What is the main function of the Yokogawa AAI835-H03/K4A00?
It provides both analog input and output channels for process control and monitoring.
2. How many input and output channels are available?
It offers 16 input and 8 output analog channels.
3. What signal types does it support?
Supports 4–20 mA current and 1–5 V DC voltage signals.
4. Are the input channels isolated?
Yes, each channel is isolated from others and ground.
5. What is the resolution of the module?
16-bit resolution for both input and output signals.
6. Does it need an external power supply?
No, it is powered through the I/O bus from the base unit.
7. What are the environmental operating conditions?
Operates at 0 °C to +50 °C, with 5–95% non-condensing humidity.
8. Which systems is it compatible with?
Compatible with Yokogawa CENTUM VP and CS 3000 DCS platforms.
