Technical Specifications
| Parameter | Specification |
|---|---|

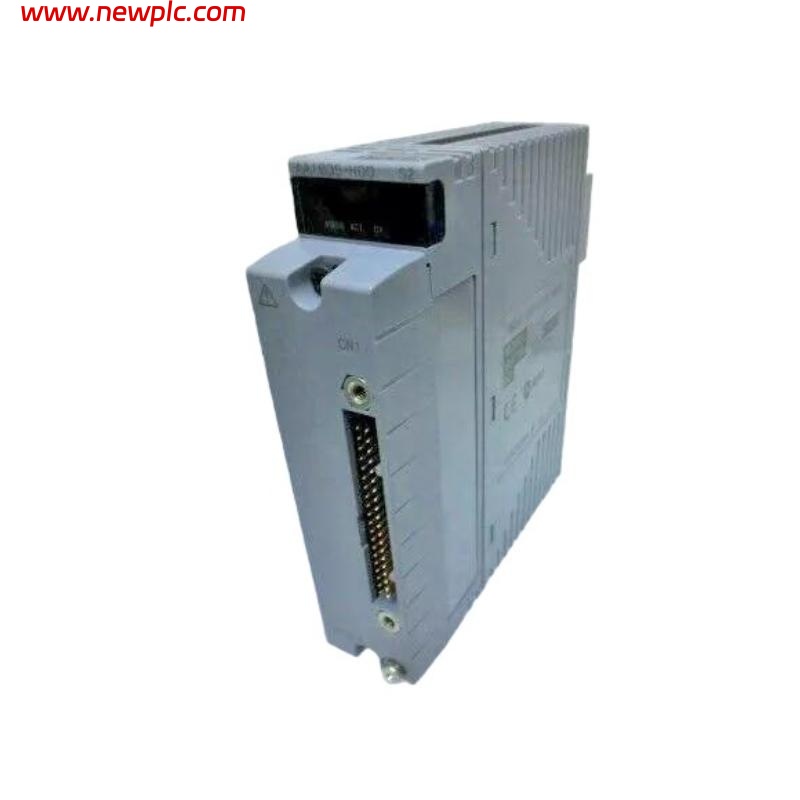

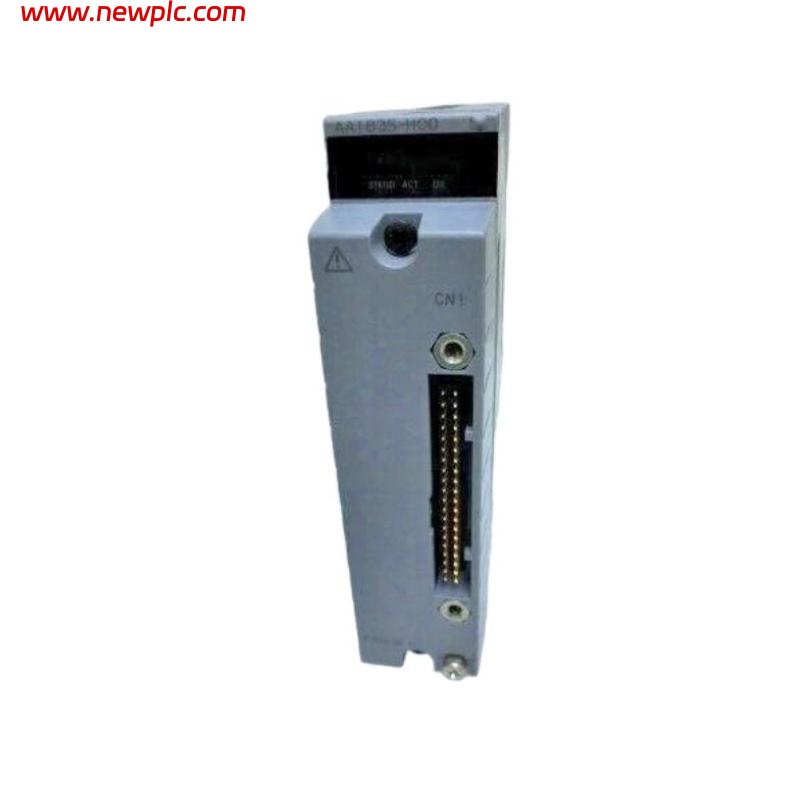

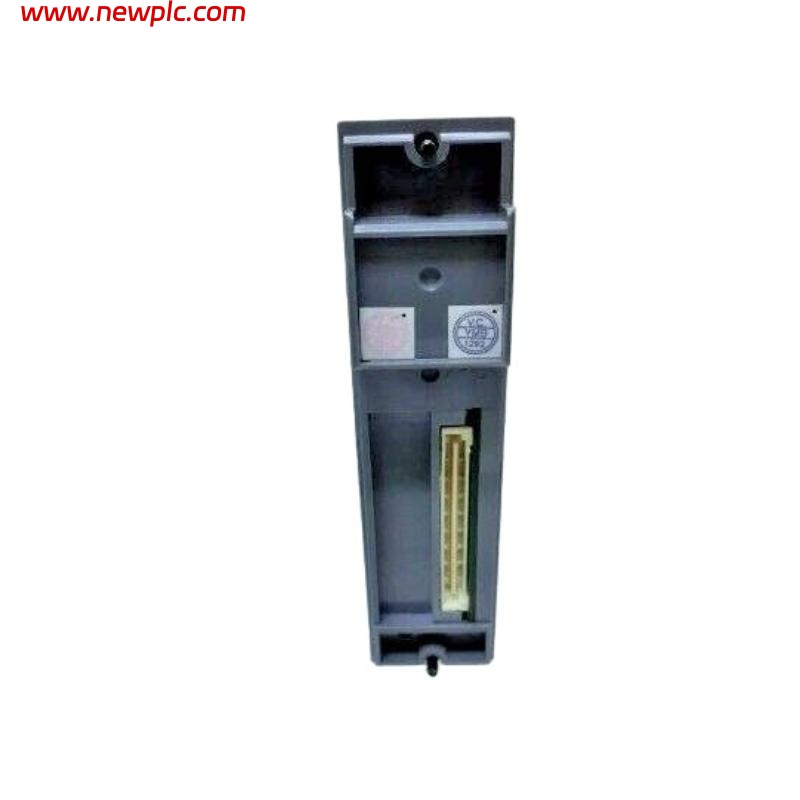

| Model | Yokogawa AAI835-H00/K4A00 |
| Manufacturer | Yokogawa |
| Type | Analog I/O Module |
| Number of Input Channels | 16 isolated analog input channels |
| Number of Output Channels | 8 analog output channels |
| Input Signal Type | 4–20 mA current or 1–5 V DC voltage (configurable) |
| Output Signal Type | 4–20 mA current or 1–5 V DC voltage (configurable) |
| Input Resolution | 16-bit |
| Output Resolution | 16-bit DAC |
| Accuracy | ±0.1% full scale (input and output) |
| Input Isolation | Channel-to-channel and channel-to-ground isolation |
| Input Impedance | ≥250 Ω (current), ≥1 MΩ (voltage) |
| Output Load | 600 Ω max (current), 1 kΩ min (voltage) |
| Sampling Rate | 100 ms per channel (input), 50 ms per channel (output) |
| Power Supply Voltage | Supplied by I/O bus from base unit |
| Power Consumption | Approx. 8 W |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
| Mounting | Mounted on I/O base unit |
| Certification | CE, CSA, KC compliant |
| Application | Industrial process control and monitoring in DCS systems |
FAQ
FAQ
1. What is the main function of the Yokogawa AAI835-H00/K4A00?
It combines analog input and output channels for comprehensive process control and monitoring.
2. How many input and output channels does it have?
It features 16 analog input channels and 8 analog output channels.
3. What signal types are supported?
Supports both 4–20 mA current and 1–5 V DC voltage signals, configurable per channel.
4. Are input channels isolated?
Yes, each input channel is isolated from others and from ground.
5. What resolution does the module provide?
It offers 16-bit resolution for both input and output.
6. Does it require an external power source?
No, it is powered through the I/O bus from the base unit.
7. What are the operating environmental conditions?
It operates between 0 °C and +50 °C, with 5–95% non-condensing humidity.
8. Which Yokogawa systems is it compatible with?
Fully compatible with Yokogawa CENTUM VP and CS 3000 DCS platforms.
