Technical Specifications
| Parameter | Specification |
|---|---|

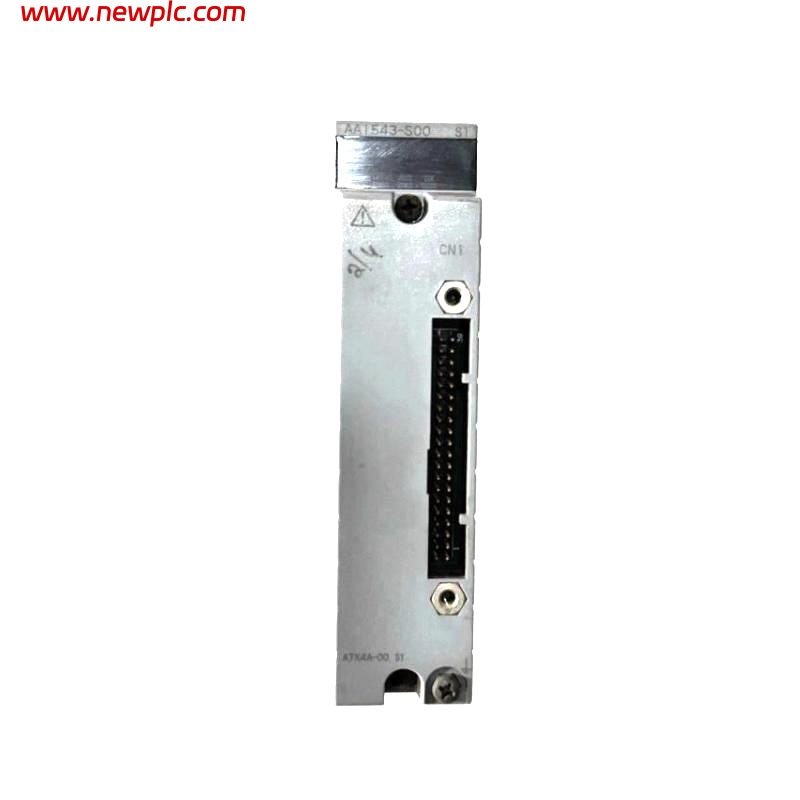

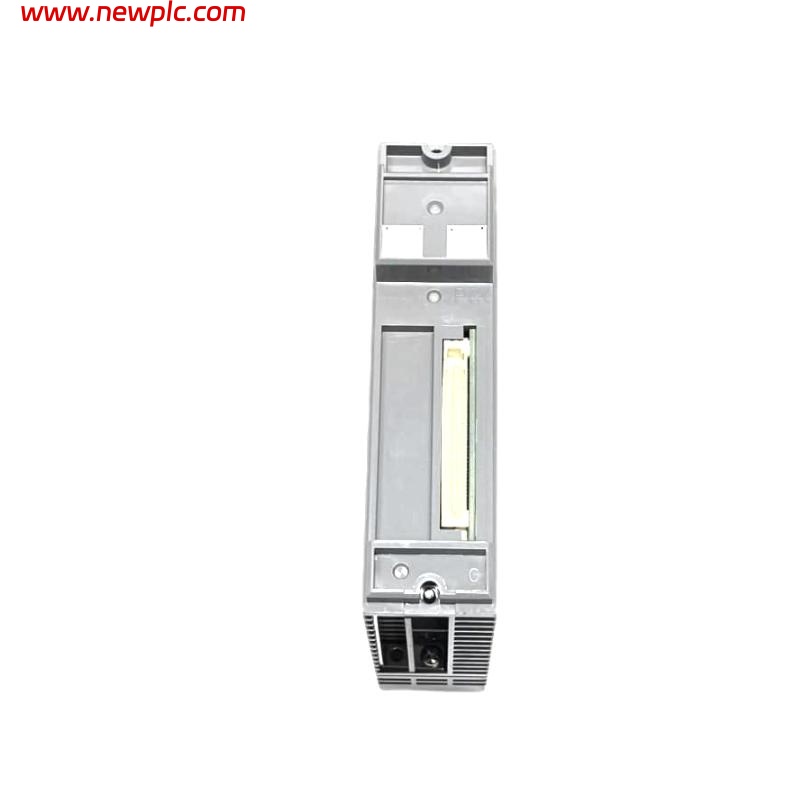

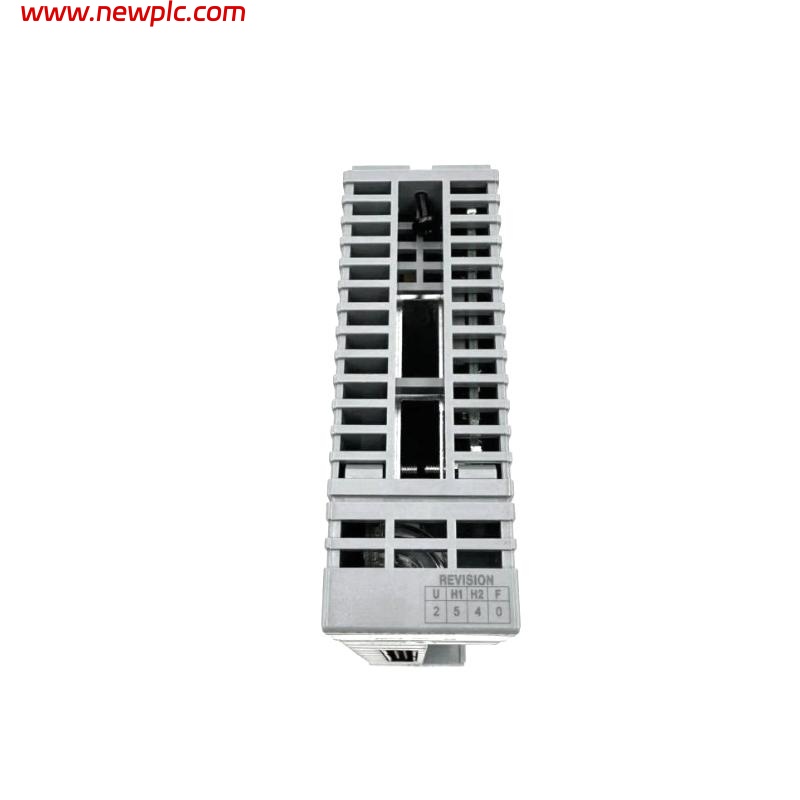

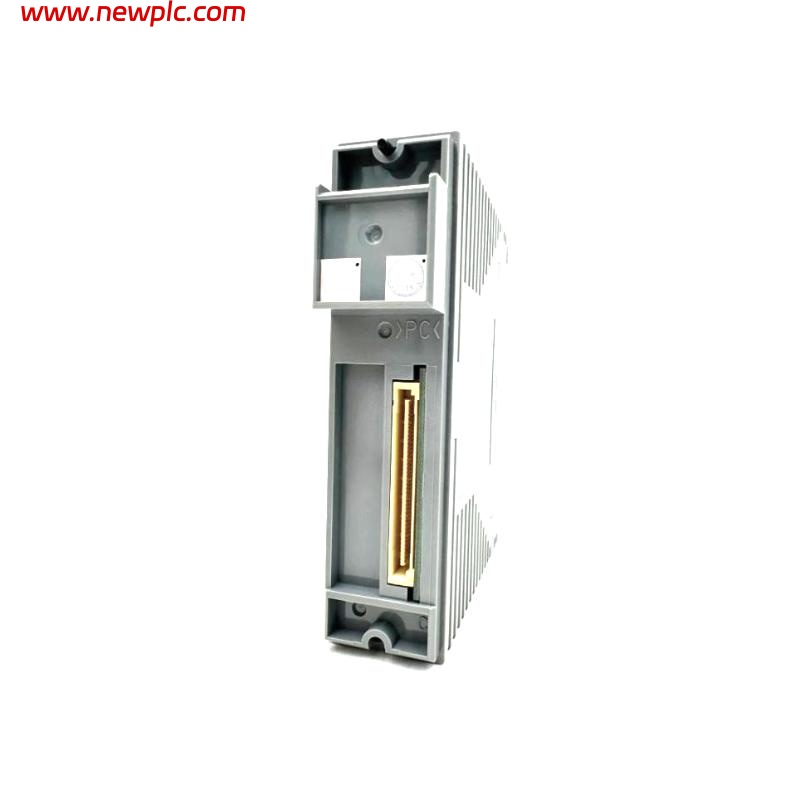

| Model | Yokogawa AAI543-S53/K4A00 Analog Output Module |
| Number of Output Channels | 16, isolated |
| Output Signal | 4 to 20 mA |
| Withstanding Voltage | Between output and system: 1500 V AC, 1 minute |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-open Detection | Less than 0.65 mA |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Temperature Drift | ±16 µA / 10°C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Communication | Pressure clamp terminal, MIL connector cable, KS1 dedicated cable |
| HART Communication | Available |
| Dimensions (W × D × H) | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: How many output channels does this module support?
A1: The module supports 16 isolated output channels.
Q2: What is the output signal range of the module?
A2: The output signal is 4 to 20 mA DC.
Q3: What is the maximum allowable load resistance?
A3: The maximum allowable load resistance is 0 to 750 ohms.
Q4: Does the module support HART communication?
A4: Yes, HART communication is supported.
Q5: What is the temperature drift specification?
A5: The temperature drift is ±16 microamps per 10°C.
Q6: What are the dimensions and weight of the module?
A6: The dimensions are 107.5 × 32.8 × 130 mm, and the weight is 0.4 kg.
Q7: What is the switch-over response time in dual-redundant configuration?
A7: Standard switch-over response is 100 milliseconds, and fast switch-over response is 2 milliseconds.
Q8: What is the maximum current consumption?
A8: Maximum current consumption is 230 mA (5 V DC) and 540 mA (24 V DC).
