Technical Specifications
| Parameter | Specification |
|---|---|

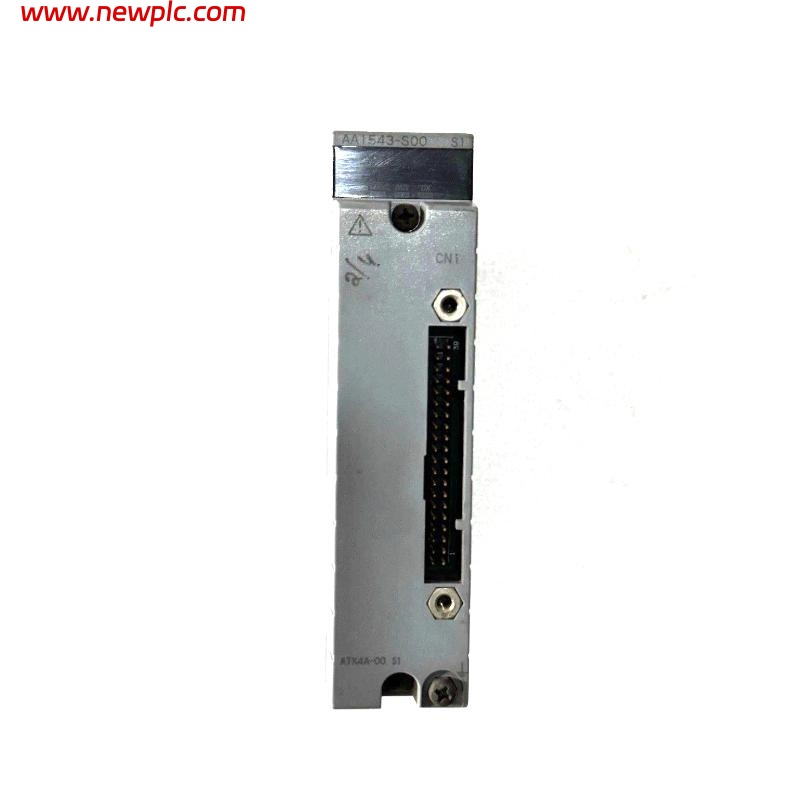

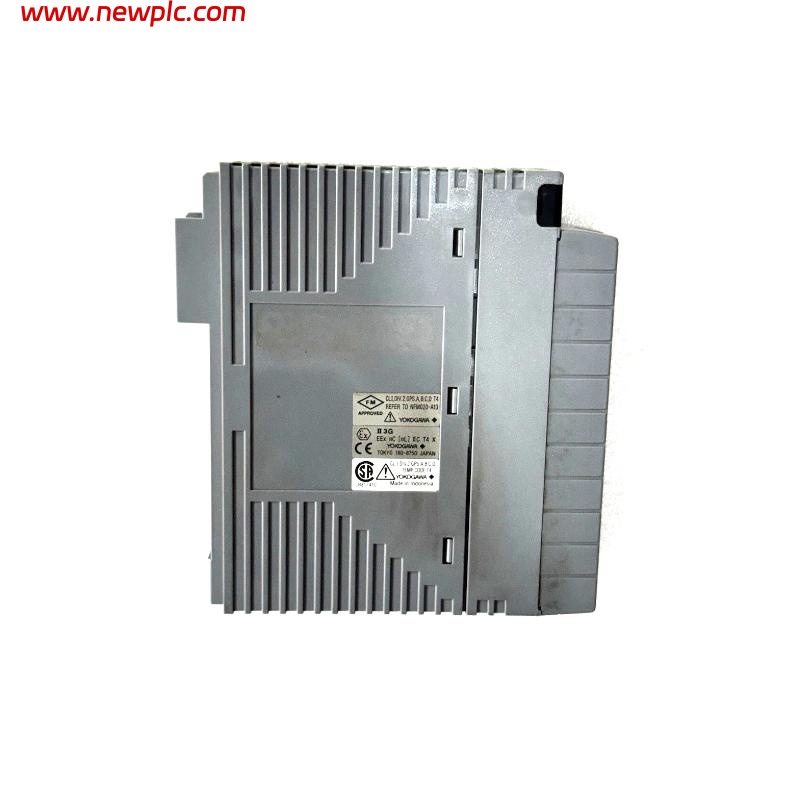

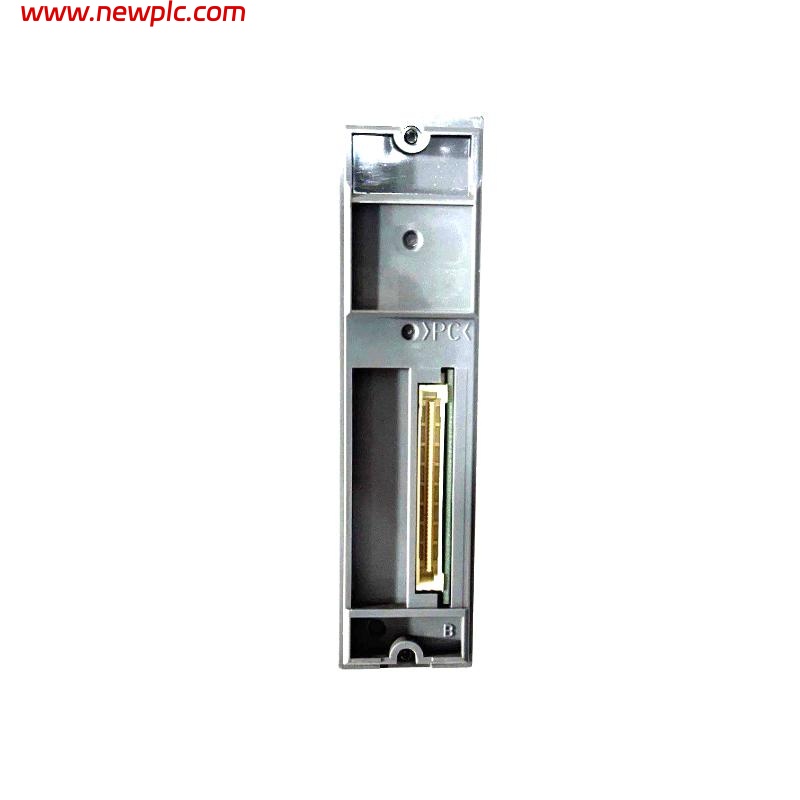

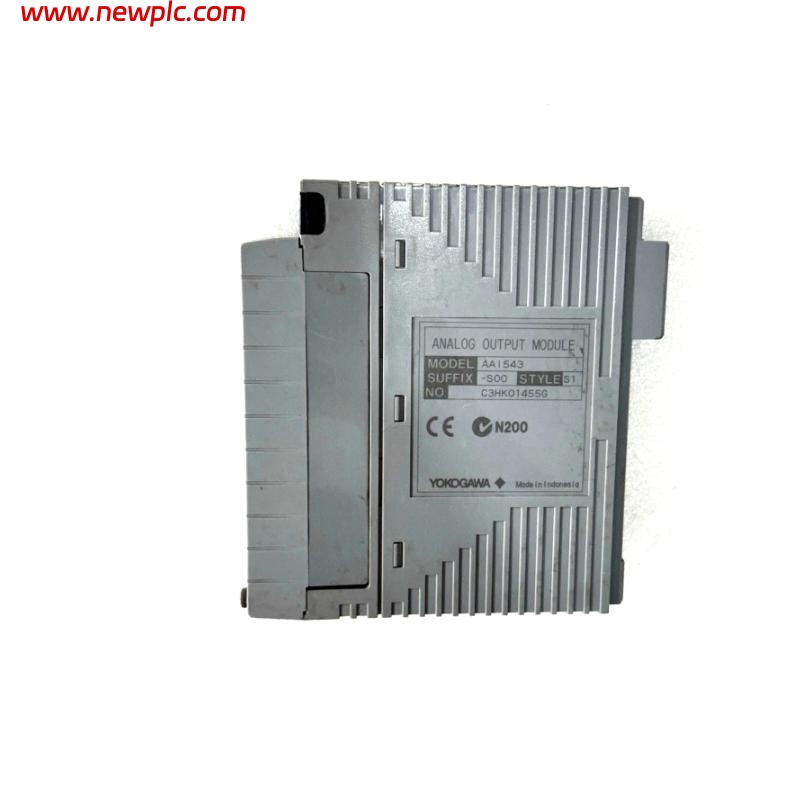

| Model | Yokogawa AAI543-S00 S1 |
| Type | Analog Output Module (Current Output, Isolated) |
| Number of Output Channels | 16 channels, isolated |
| Output Signal | 4 to 20 mA |
| Withstanding Voltage | Between output and system: 1500 V AC, 1 minute |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-Open Detection | Less than 0.65 mA |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Drift Due to Ambient Temperature Change | ±16 µA / 10°C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Connection | Pressure clamp terminal, MIL connector cable, KS1 dedicated cable |
| HART Communication | Available |
| Dimensions (W × D × H) | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: How many output channels does the module have?
A1: It has 16 isolated output channels.
Q2: What is the output signal range?
A2: The output signal is 4 to 20 mA DC.
Q3: What is the allowable load resistance range?
A3: The allowable load resistance range is 0 to 750 Ω.
Q4: What is the accuracy of the module?
A4: The accuracy is ±48 µA.
Q5: Does the module support HART communication?
A5: Yes, the module supports HART communication.
Q6: What is the module’s power consumption?
A6: The maximum current consumption is 230 mA at 5 V DC and 540 mA at 24 V DC.
Q7: What are the module’s dimensions?
A7: The dimensions are 107.5 × 32.8 × 130 mm.
Q8: What is the weight of the module?
A8: The weight is 0.4 kg.
