Technical Specifications
| Parameter | Specification |
|---|---|

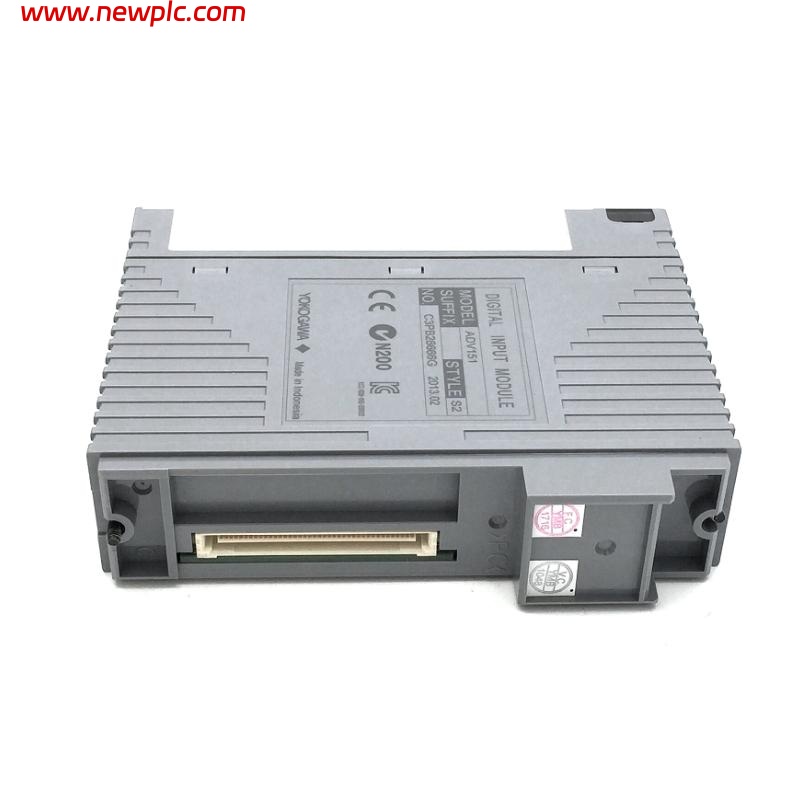

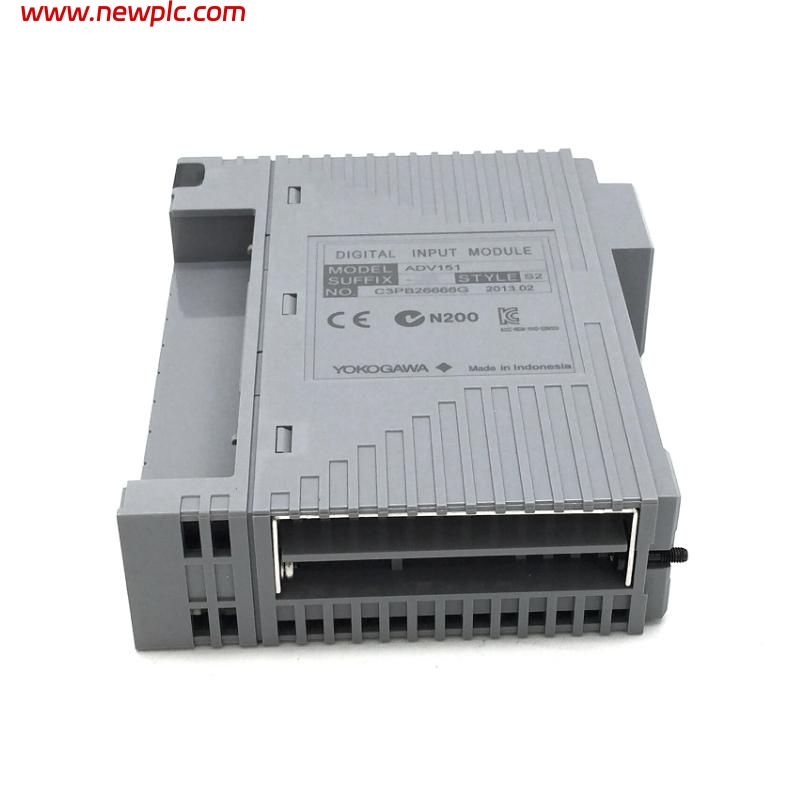

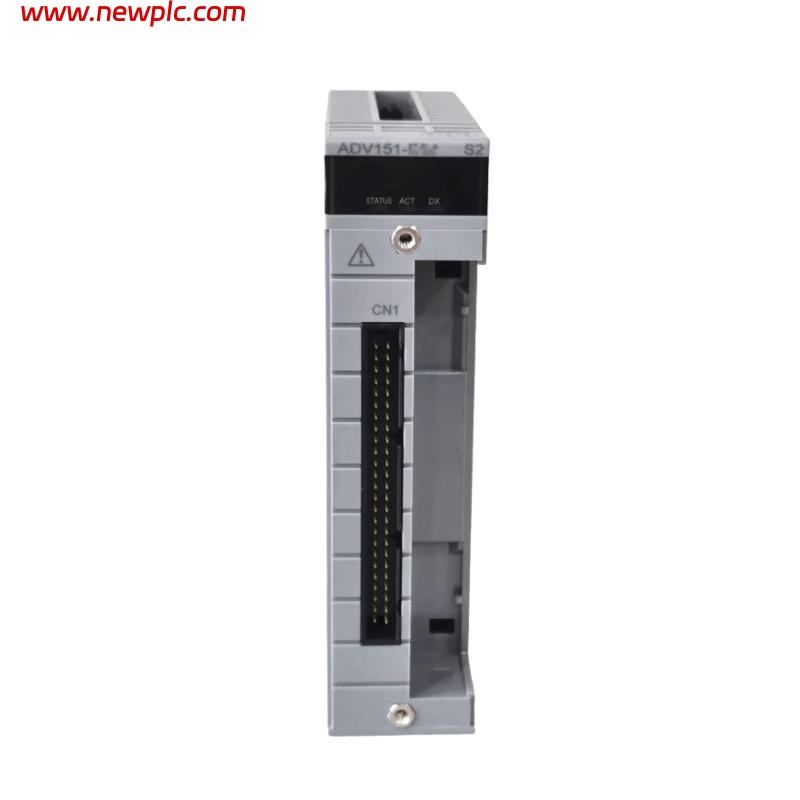

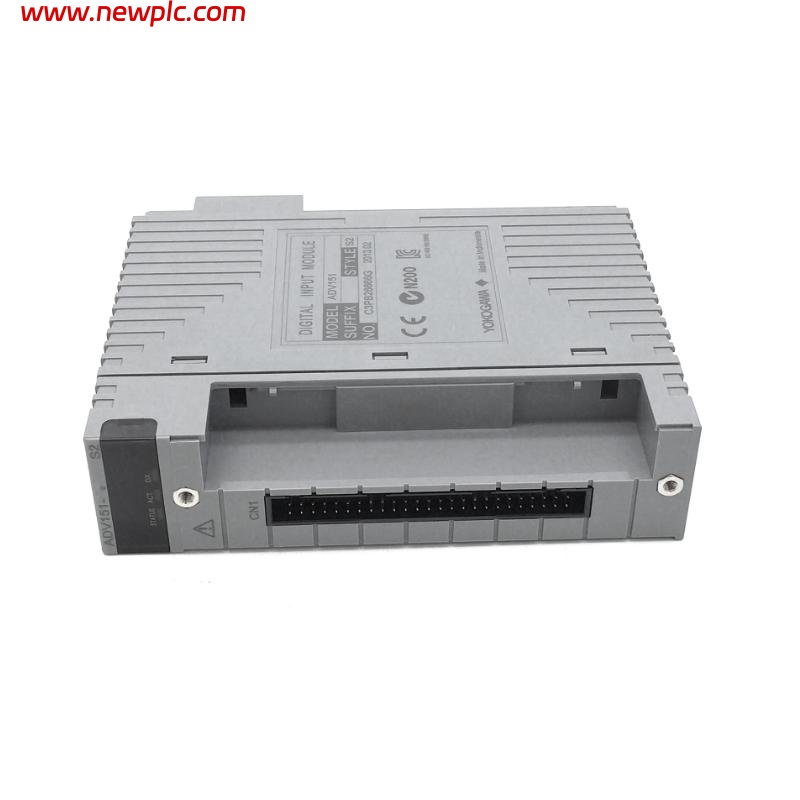

| Model | Yokogawa ADV151-E63/D6A00 Digital Input Module |
| Number of Input Channels | 32 channels |
| Rated Input Voltage | 24 V DC (sink/source) |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Input Current (at rated voltage) | 4.1 mA ± 20% / channel |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Withstanding Voltage | Between input signal and system: 2 kV AC, 1 minute; Between commons: 500 V AC, 1 minute (common every 16-channel) |
| Functions | Status input, Pushbutton input (edge counting), SOE capture |
| Input Response Time | 8 ms or less (status input) |
| Minimum ON Detection Time | 20 ms (pushbutton input) |
| Maximum ON/OFF Cycle | 25 Hz (pushbutton input) |
| Maximum Current Consumption | 500 mA (5 V DC) |
| External Connection | Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | Approx. 0.3 kg |
FAQ
FAQ
Q1: What is the rated input voltage of the ADV151-E63/D6A00 module?
A1: The rated input voltage is 24 V DC, supporting both sink and source types.
Q2: How many input channels does this module have?
A2: It has 32 input channels.
Q3: What is the allowable input voltage range for ON status?
A3: The ON voltage range is between 18 V DC and 26.4 V DC.
Q4: Does the module support SOE (Sequence of Events) capture?
A4: Yes, this model supports SOE capture.
Q5: What is the typical input current per channel?
A5: The input current at rated voltage is 4.1 mA ± 20% per channel.
Q6: What is the maximum allowable input voltage?
A6: The maximum allowable input voltage is 30.0 V DC.
Q7: What is the input response time for status input?
A7: The input response time is 8 ms or less for status input.
Q8: What is the weight and size of this module?
A8: The module measures 107.5 × 130 × 32.8 mm and weighs approximately 0.3 kg.
