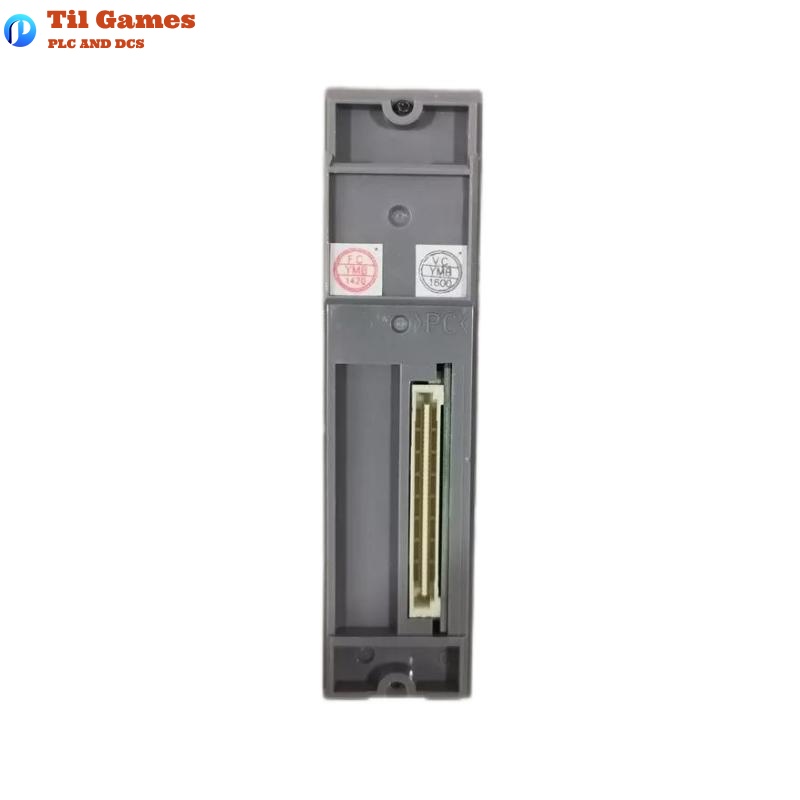

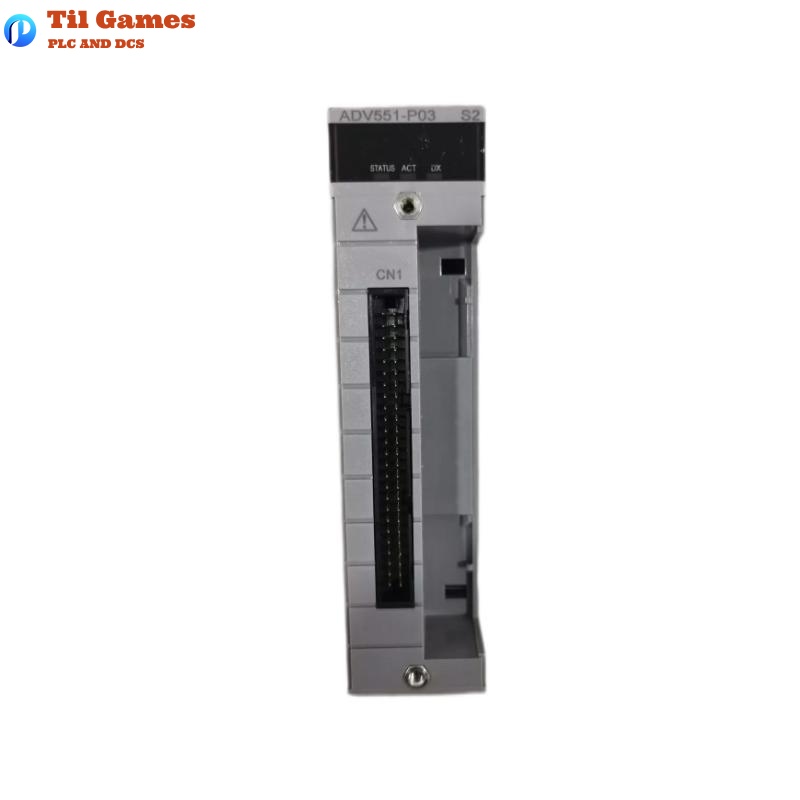

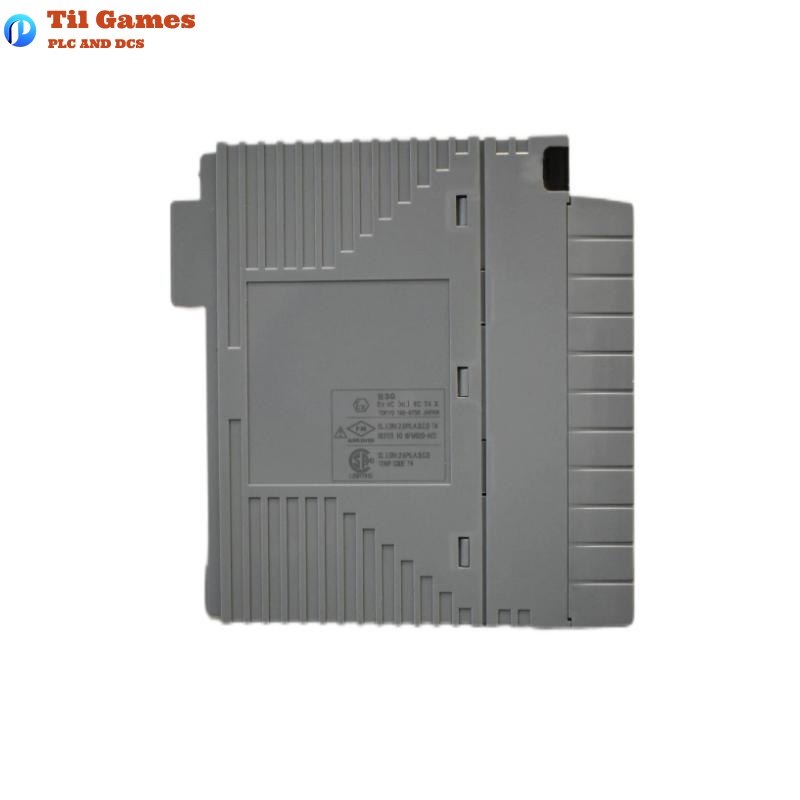

Technical Specifications
| Item | Specification |
|---|---|
| Model | ADV551-P03 S2 |
| Number of Output Channels | 32 channels |
| Rated Output Voltage | 24 V DC |
| External Power Supply | 24 V DC, 50 mA |
| Power Supply Voltage Range | 20.4 to 26.4 V DC |
| Max Output ON Voltage | 2 V DC |
| Max Leakage Current OFF | 0.1 mA |
| Output Type | Current sink |
| Max Load per Channel | 100 mA @ 26.4 V DC (diode required for DC relay) |
| Withstanding Voltage | 2 kV AC (output to system), 1 min 500 V AC (common – every 16 channels), 1 min |
| Supported Functions | ON/OFF status output, One-shot pulse output, Time-proportional output |
| Output Response Time | ≤3 ms (status), ≤10 ms (status + pulse) |
| Pulse Width Range | 8 ms to 7200 s |
| Pulse Resolution | 8 ms (with max 1 ms ON/OFF delay) |
| Max Current Consumption | 700 mA (5 V DC), 60 mA (external supply) |
| External Connection | Pressure clamp terminal, dedicated cable (AKB331), MIL connector cable |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many channels does the ADV551-P03 S2 support?
A1: It supports 32 digital output channels.
Q2: What is the output type of this module?
A2: It uses a current sink output type.
Q3: What is the maximum load per channel?
A3: 100 mA per channel at 26.4 V DC (a diode is required when driving a DC relay).
Q4: Does this module support pulse output?
A4: Yes, it supports pulse width output with a range of 8 ms to 7200 s.
Q5: What is the output response time?
A5: ≤3 ms for status output, and ≤10 ms for mixed status and pulse output.
Q6: Are common terminals shared?
A6: Yes, one common minus terminal is shared for every 16 channels.
Q7: Is the withstanding voltage different for MIL cable use?
A7: Yes, the voltage depends on the electrical specifications of the MIL cable used.
Q8: What are the dimensions and weight of the module?
A8: The dimensions are 107.5 × 130 × 32.8 mm, and the weight is approximately 0.2 kg.
