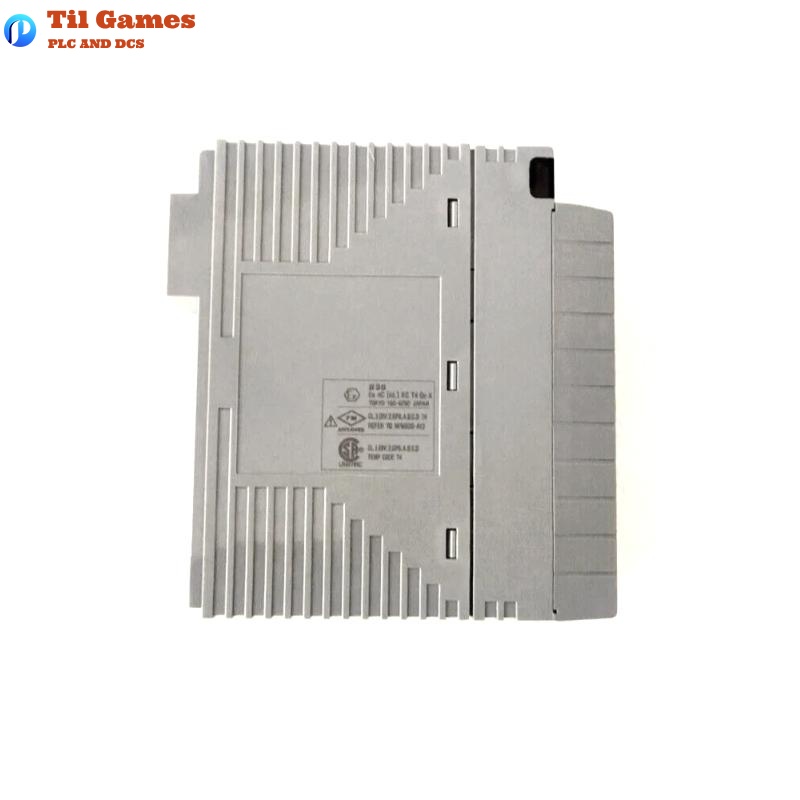

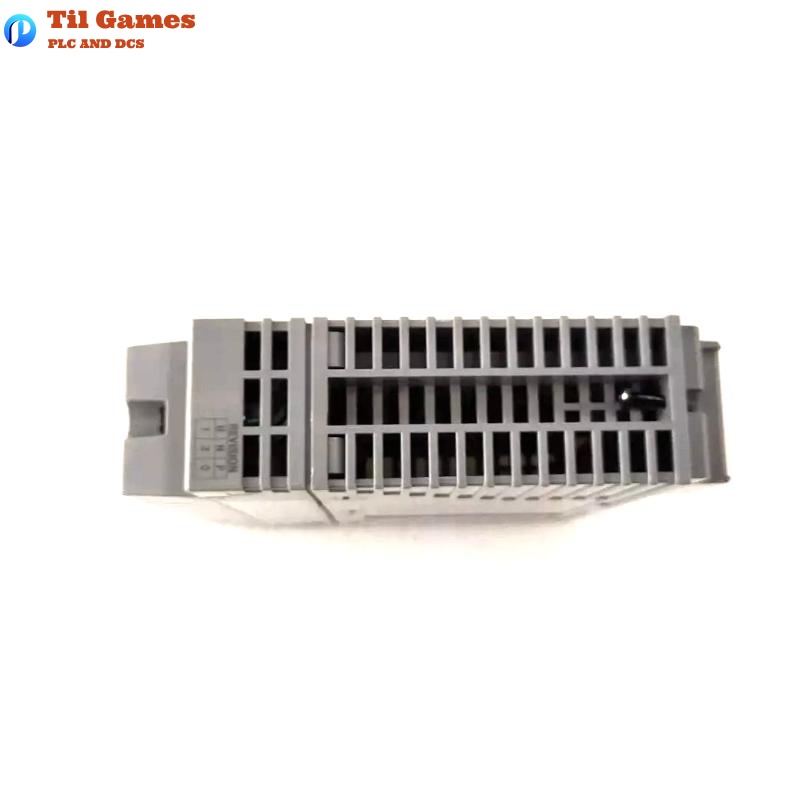

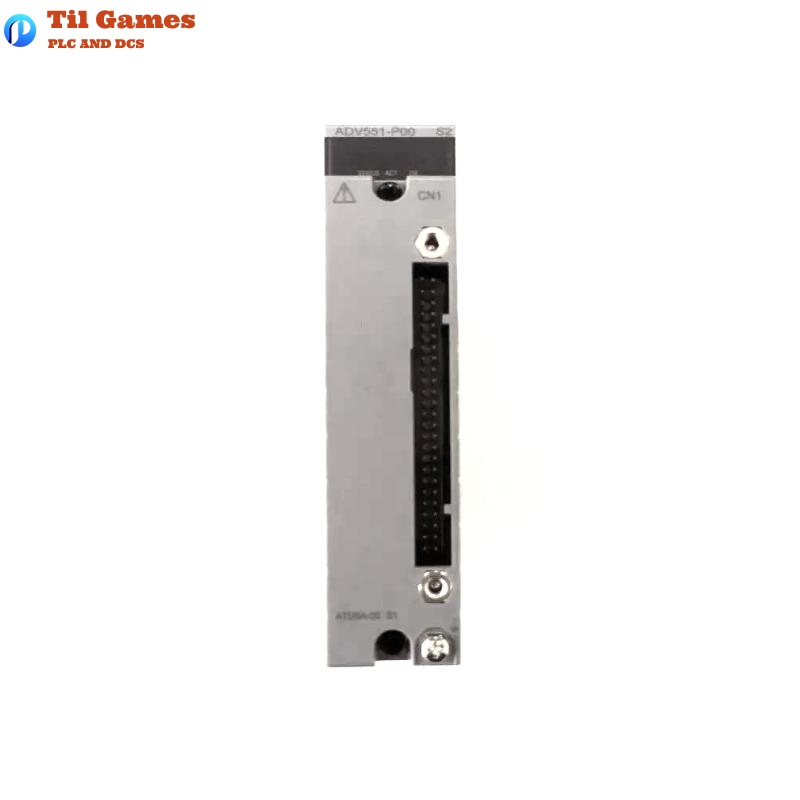

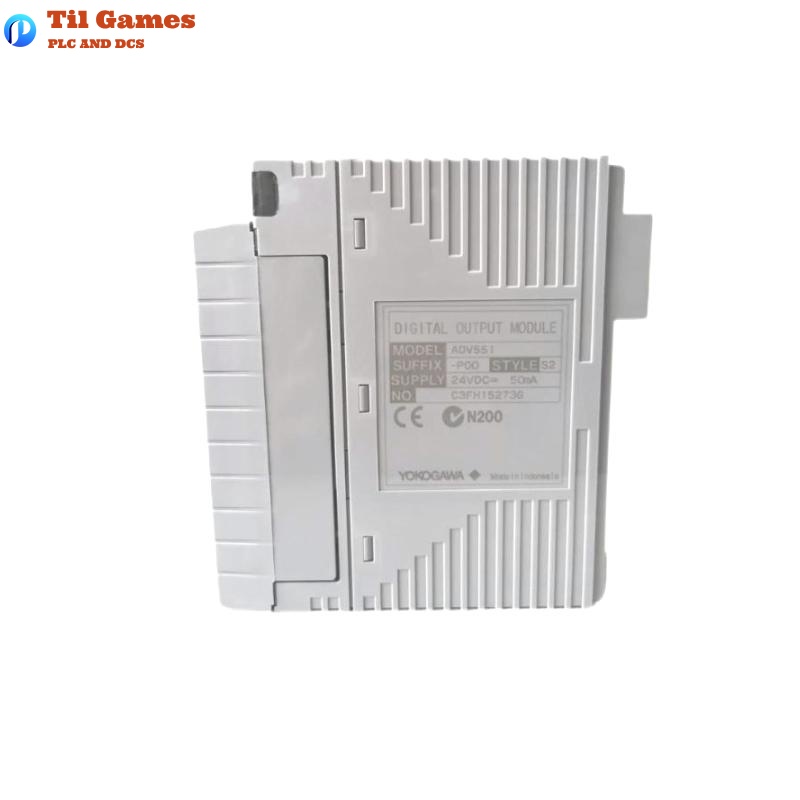

Technical Specifications
| Item | Specification |
|---|---|
| Model | ADV551-P00 S2 |
| Number of Output Channels | 32 channels |
| Rated Output Voltage | 24 V DC |
| External Power Rating | 24 V DC, 50 mA |
| External Power Voltage Range | 20.4 to 26.4 V DC |
| Max Output ON Voltage | 2 V DC |
| Max Leak Current When OFF | 0.1 mA |
| Output Format | Current sink |
| Max Load Current | 100 mA/channel at max 26.4 V (use diode for DC relay drive) |
| Withstanding Voltage | 2 kV AC (Output to system), 500 V AC (common side every 16 channels) |
| Functions | Status output, One-shot pulse output, Time-proportional ON/OFF output |
| Output Response Time | ≤ 3 ms (status), ≤ 10 ms (mixed status/pulse) |
| Pulse Width | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms (add max 1 ms ON/OFF delay) |
| Max Power Consumption | 700 mA (5 V DC); 60 mA (external power) |
| Dimensions (W×H×D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
| External Connection | Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does the ADV551-P00 S2 module support?
A1: The module supports 32 independent digital output channels.
Q2: What is the output voltage rating?
A2: The rated output voltage is 24 V DC, with an acceptable range of 20.4 to 26.4 V DC.
Q3: Does the module support pulse width and time-proportional output?
A3: Yes, it supports both one-shot pulse output and time-proportional output functions.
Q4: What is the maximum load current per channel?
A4: Each output channel can drive up to 100 mA at a maximum of 26.4 V DC.
Q5: Is there any leakage current when the output is off?
A5: Yes, the maximum leakage current is 0.1 mA.
Q6: What is the response time of the module?
A6: Response time is ≤ 3 ms for status output and ≤ 10 ms for mixed status and pulse outputs.
Q7: Is the module electrically isolated?
A7: Yes, the output-to-system isolation is 2 kV AC, and every 16 channels share a common with 500 V AC isolation.
Q8: What are the dimensions and weight of the module?
A8: The dimensions are 107.5 × 130 × 32.8 mm, and the weight is approximately 0.2 kg.
