Technical Specifications
| Parameter | Specification |
|---|---|

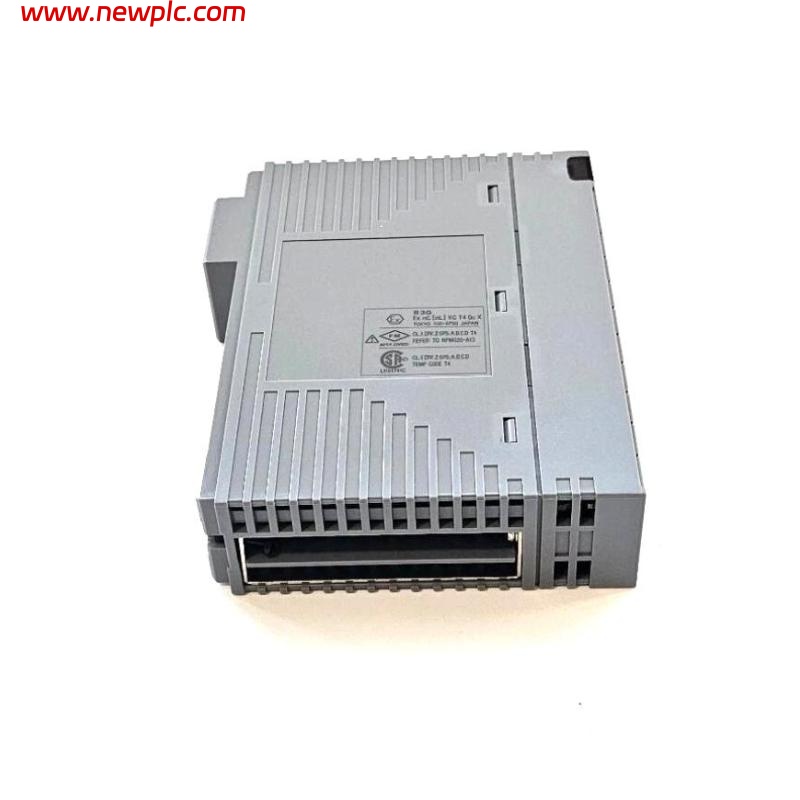

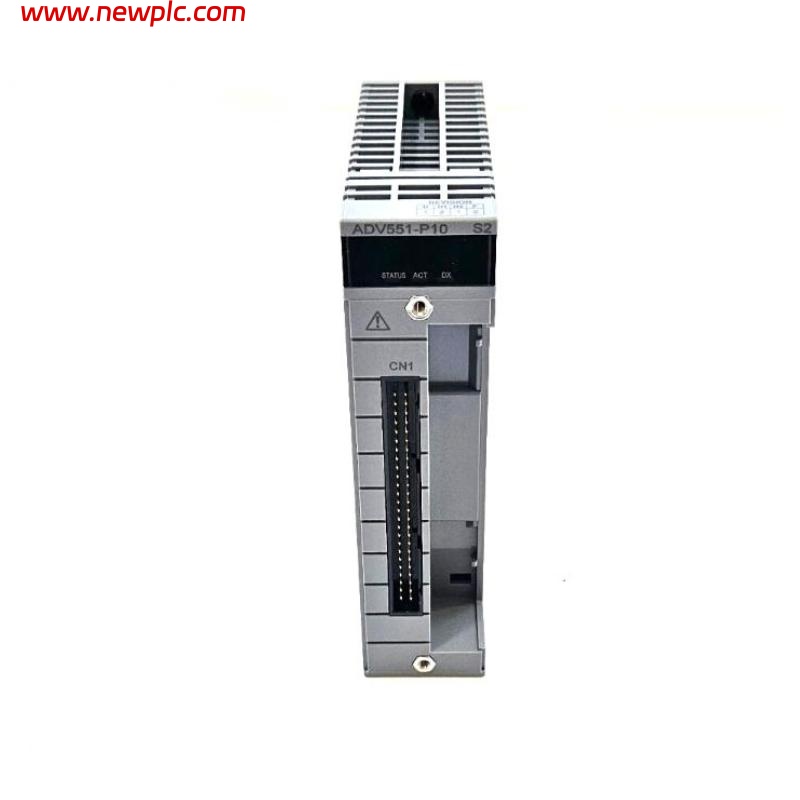

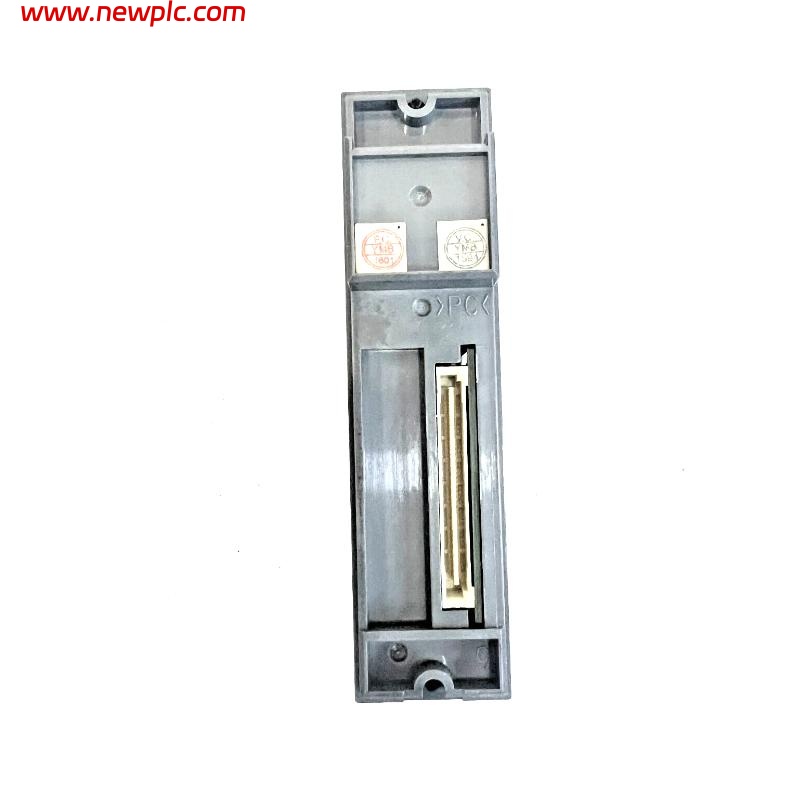

| Model | ADV551-P10/D5A00 Digital Output Module |
| Number of Output Channels | 32 |
| Rated Applied Voltage | 24 V DC |
| External Power Supply Rating | 24 V DC, 50 mA |
| External Power Supply Voltage Range | 20.4 to 26.4 V DC |
| Maximum Output ON Voltage | 2 V DC |
| Maximum Leak Current (OFF) | 0.1 mA |
| Output Format | Current sink |
| Maximum Load Current | 100 mA/channel, 26.4 V |
| Withstanding Voltage | Between output signal and system: 2 kV AC, 1 minute; Between commons: 500 V AC, 1 minute, common (–) side every 16 channels |
| Output Response Time | ≤ 3 ms (status output), ≤ 10 ms (mixed status and pulse outputs) |
| Pulse Width | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms (max. ON/OFF delay of 1 ms added) |
| Maximum Current Consumption | 700 mA (5 V DC), 60 mA (external power supply) |
| External Connection | Pressure clamp terminal, dedicated cable (AKB331), MIL connector cable |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: How many output channels does the ADV551-P10/D5A00 support?
A1: The module supports 32 output channels.
Q2: What is its rated operating voltage?
A2: The rated operating voltage is 24 V DC.
Q3: What is the range of the external power supply voltage?
A3: The external power supply voltage range is 20.4 to 26.4 V DC.
Q4: What is the maximum load current of the module?
A4: The maximum load current is 100 mA per channel at 26.4 V.
Q5: What is the output response time?
A5: The status output response time is ≤ 3 ms, and for mixed status and pulse outputs it is ≤ 10 ms.
Q6: What output functions are supported?
A6: It supports status output, one-shot pulse width output, and time-proportioning output.
Q7: What are the module dimensions?
A7: The dimensions are 107.5 × 130 × 32.8 mm.
Q8: What is the module weight?
A8: The weight is approximately 0.2 kg.
